V4 Maintenance Parts List 8.TRAY TRANSFER NO. PARTS NAME CODE REMARK 1 LC5-M3021-001 AIR,CYLINDER 1 Short Stroke 2 LC5-M3022-001 AIR,CYLINDER 2 Long Stroke 3 LC5-M3024-000 BELT Tray Conveyer 1&2 Belt 4 LC5-M3029-000 …
1
8
|

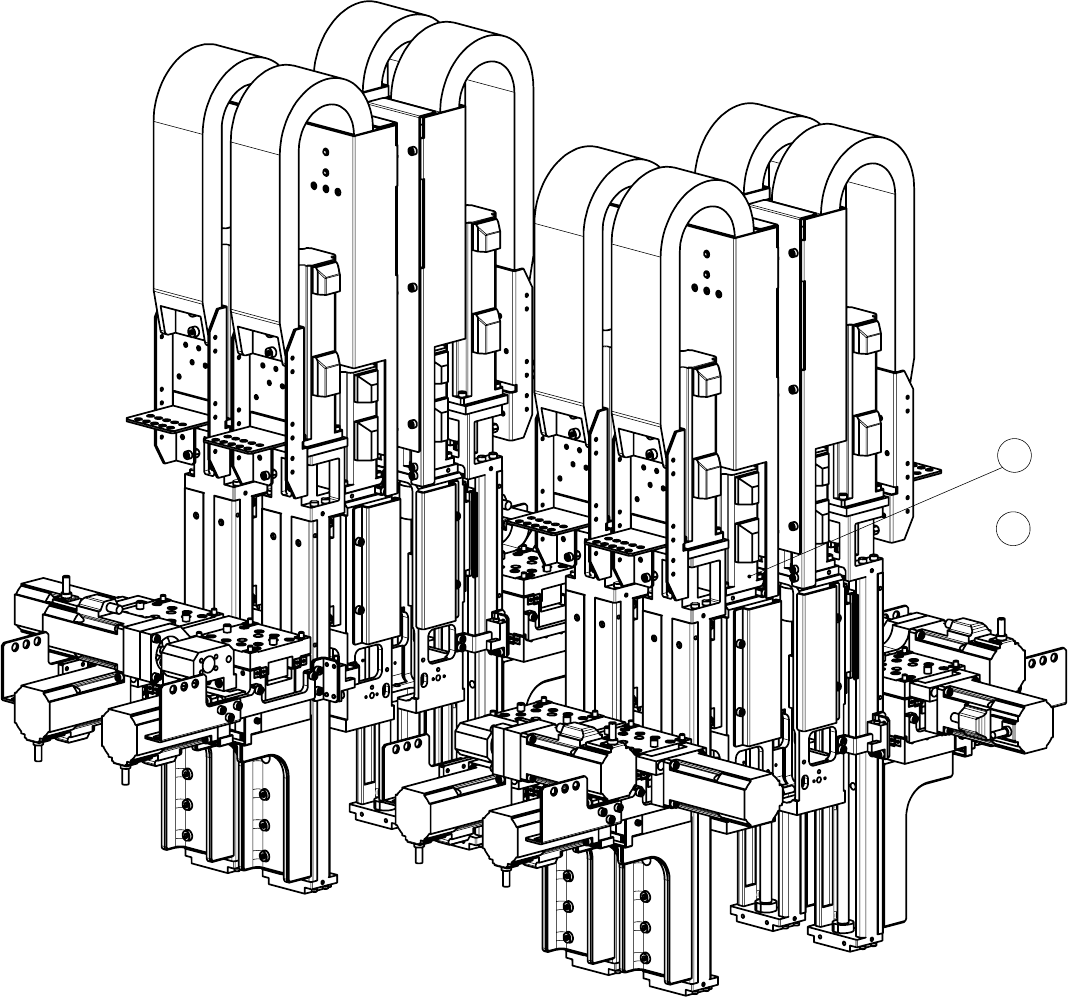

7.R-Axis
V4 Maintenance Parts List

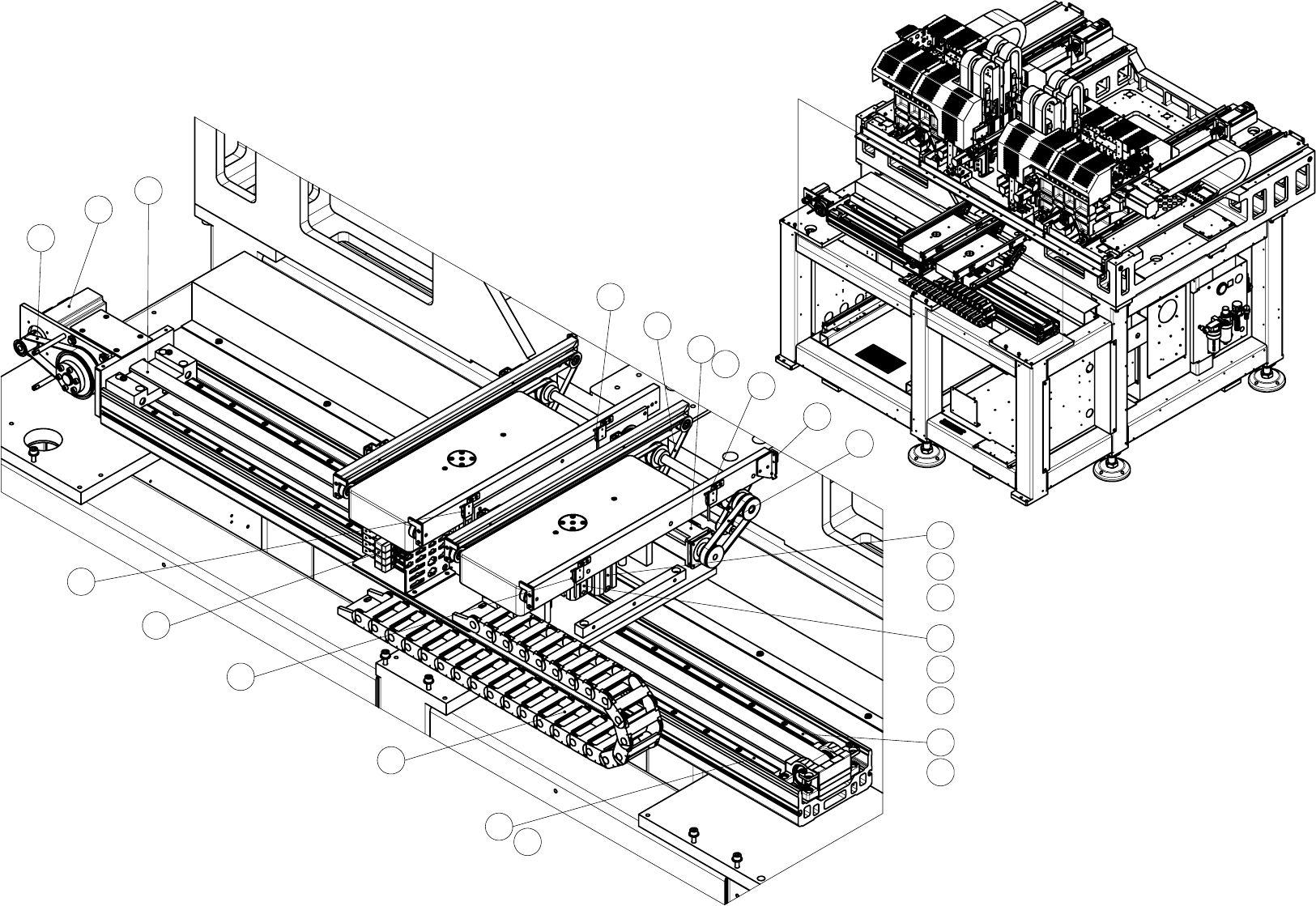

8.TRAY TRANSFER
NO. PARTS NAME CODE REMARK
1 LC5-M3021-001 AIR,CYLINDER 1 Short Stroke
2 LC5-M3022-001 AIR,CYLINDER 2 Long Stroke
3 LC5-M3024-000 BELT Tray Conveyer 1&2 Belt
4 LC5-M3029-000 CABLE,DUCT
5 LC5-M4884-001 AC SERVO MOTOR CNV1 Conveyer 1 Motor
6 LC5-M4885-001 AC SERVO MOTOR CNV2 Conveyer 2 Motor
7 LC5-M30K1-000 VALVE,ASSY.
8 LC5-M30K2-000 SENSOR,ASSY Left Conveyer Tray Detect
9 LC5-M30K2-100 SENSOR,ASSY Right Conveyer Tray Detect
10 LC5-M30K2-200 SENSOR,ASSY Left Conveyer Tray Position
11 LC5-M30K2-300 SENSOR,ASSY Right Conveyer Tray Position
12 LC5-M30K3-000 SENSOR,ASSY Conveyer Safety
13 LC5-M30K4-001 SENSOR,CYLINDER ASSY Left Short Cylinder UP/DOWN
14 LC5-M30K4-101 SENSOR,CYLINDER ASSY Right Short Cylinder UP/DOWN
15 LC5-M30K4-201 SENSOR,CYLINDER ASSY Left Long Cylinder UP/DOWN
16 LC5-M30K4-301 SENSOR,CYLINDER ASSY Right Long Cylinder UP/DOWN
17 90K80-S15LV0 LM BLOCK,SSR15V-L
18 90K80-S15RV0 LM BLOCK,SSR15V-R
19 90K71-0U1170 LM RAIL
20 90K71-0L1170 LM RAIL
21 LC5-M305F-A00 BELT,STROKE Tray 1 Belt
22 KY7-M225E-000 BELT Tray 1 Motor Belt
23 LC5-M4889-011 AC SERVO MOTOR T1 Trey 1 Motor
24 LC5-M3009-000 BELT Tray Conveyer 1&2 Motor Belt
B:20100416
Tray 1 Guide Set
A
1
2
3
4
5
7
8
12
19
20
21
22
23
13
14
15
16
17
18
6
9
10
11
24
8.TRAY TRANSFER
