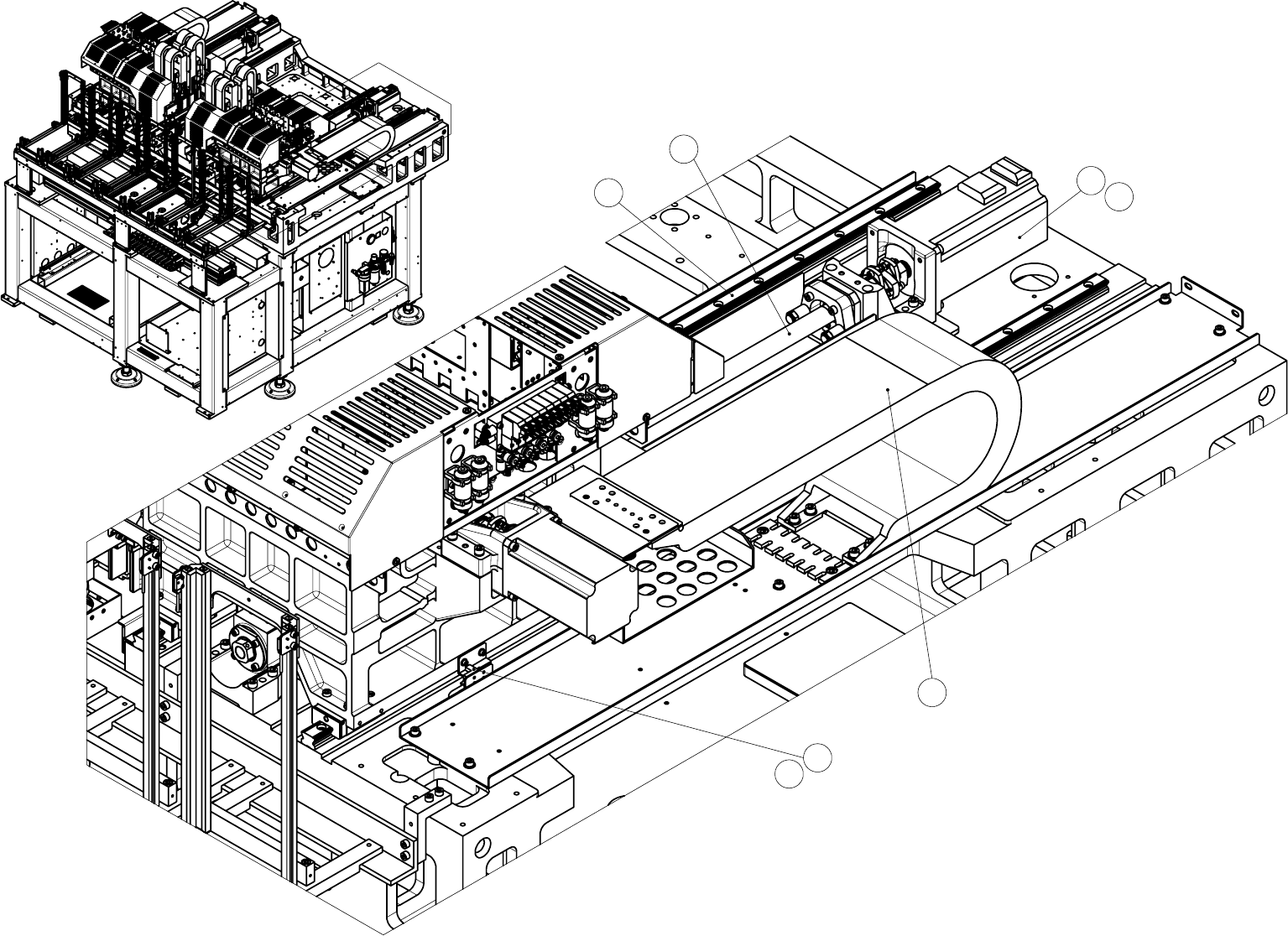

V4 Maintenance Parts List
5.XY-Axis
NO. CODE PARTS NAME REMARK
1 LC5-M25A2-A00 XY STAGE,L1 L1 Head
2 LC5-M25A2-E00 XY STAGE,L2 L2 Head
3 LC5-M25A2-F00 XY STAGE,L3 L3 Head
4 LC5-M25A2-H00 XY STAGE,L4 L4 Head
5 LC5-M25A2-J00 XY STAGE,R1 R1 Head
6 LC5-M25A2-K00 XY STAGE,R2 R2 Head
7 LC5-M25A2-L00 XY STAGE,R3 R3 Head
8 LC5-M25A2-M00 XY STAGE,R4 R4 Head
9 LC5-M25E1-A10 XY STAGE,L1 L1 Head for 350N・180N
10 LC5-M25E1-B10 XY STAGE,L2 L2 Head for 350N・180N
11 LC5-M25E1-C10 XY STAGE,L3 L3 Head for 350N・180N
12 LC5-M25E1-D10 XY STAGE,L4 L4 Head for 350N・180N
13 LC5-M25E1-E10 XY STAGE,R1 R1 Head for 350N・180N
14 LC5-M25E1-F10 XY STAGE,R2 R2 Head for 350N・180N
15 LC5-M25E1-G10 XY STAGE,R3 R3 Head for 350N・180N
16 LC5-M25E1-H10 XY STAGE,R4 R4 Head for 350N・180N
B:20100416
A
8 7
6
5
4
3
2
10
13
14
16 15 12
11
5.XY-Axis
