V4 Maintenance Parts List 11.SOCKET CAMERA NO. CODE PARTS NAME REMARK 1 KBJ-M72A0-300 SINGLE CAM. SUB ASSY 2 KV1-M6474-040 LED DRIVER BRD.ASSY 3 LC5-M7554-100 M.LIGHT BOARD ASSY 4 LC5-M6820-000 HNS,AREA JOIN LIGHT1 5 LC5…

100%1 / 32
A
10
17
|
1
Press Control Type
QFP Type
2 9
-

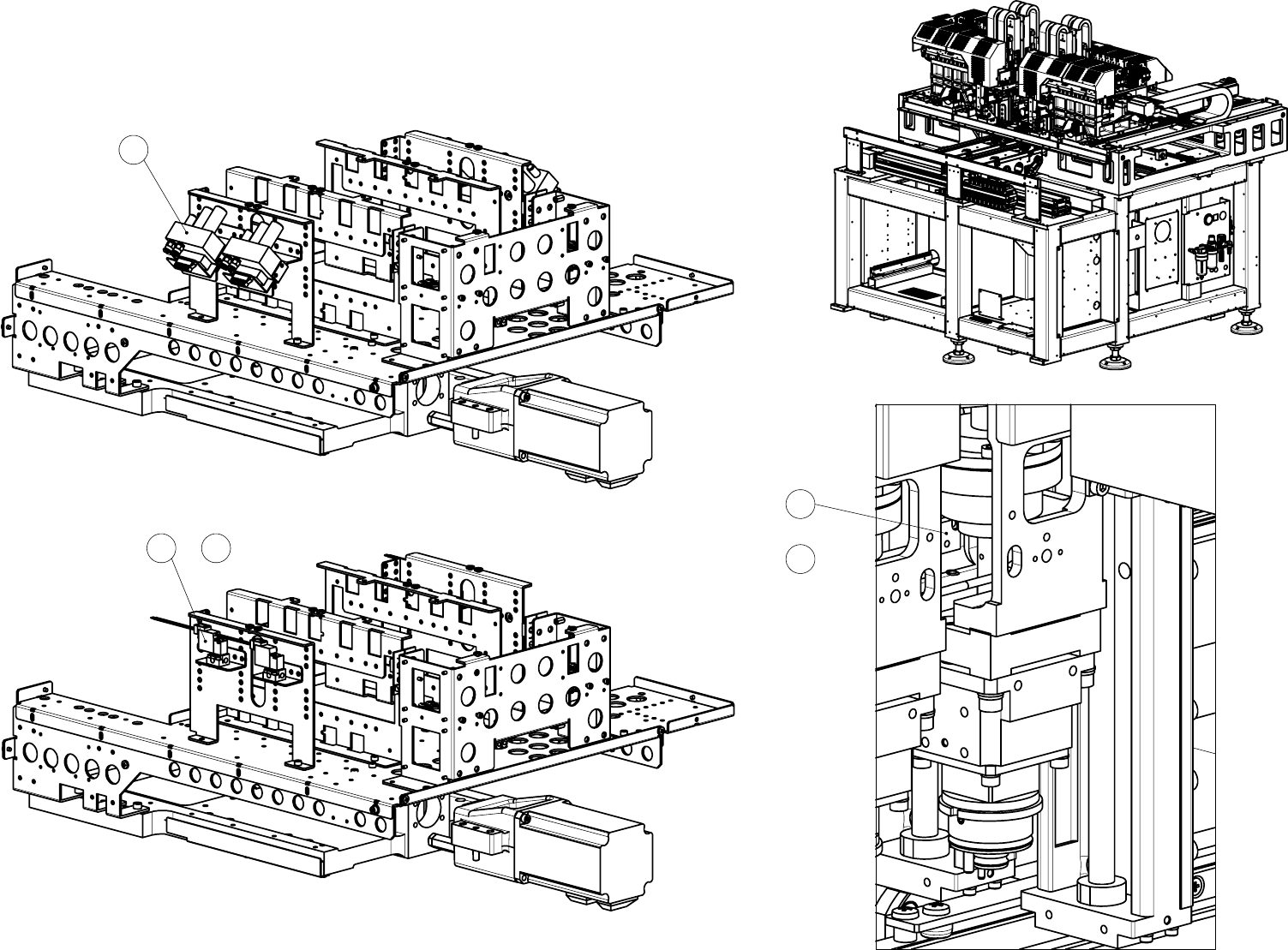

10.HEAD
V4 Maintenance Parts List

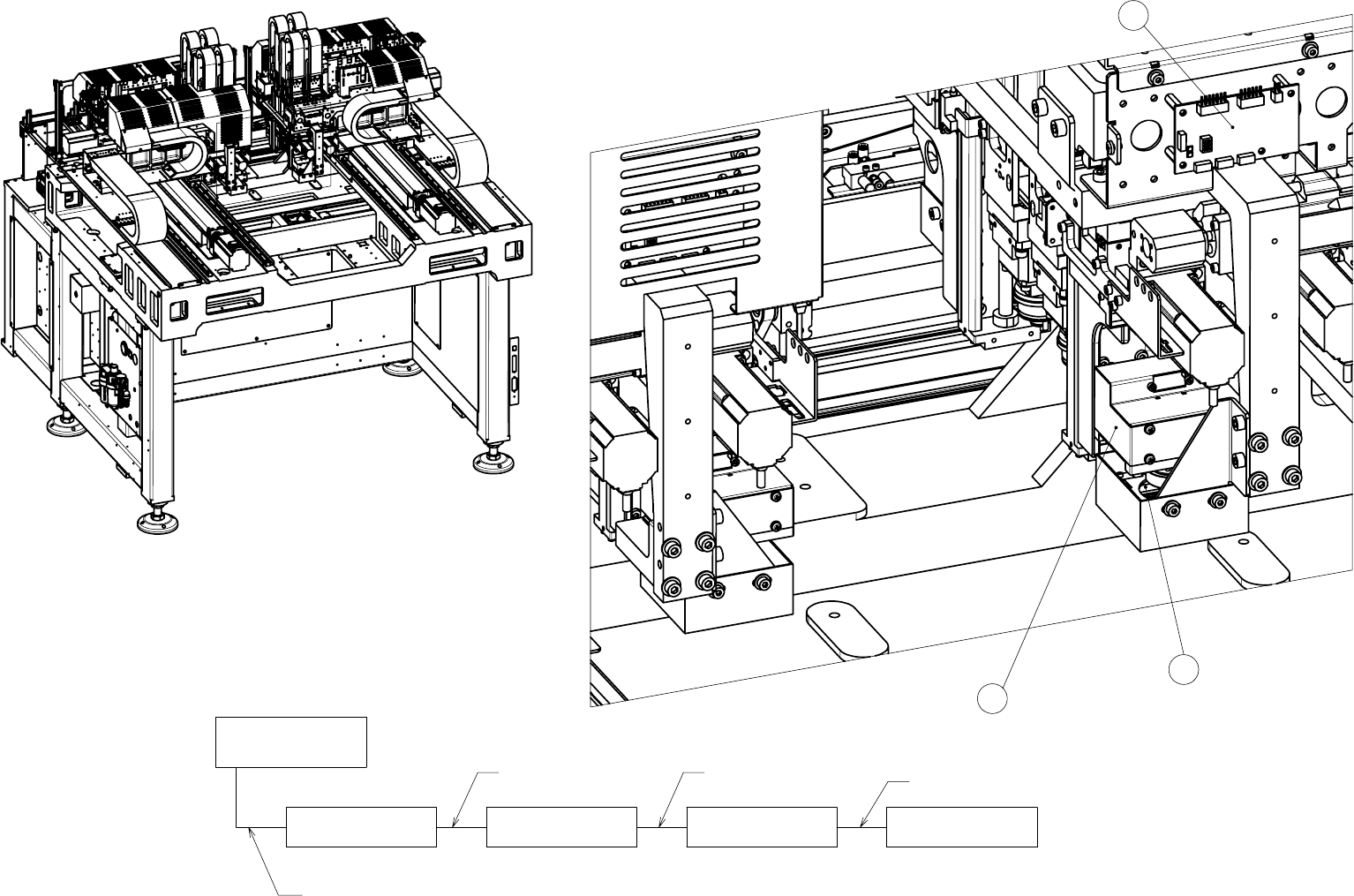

11.SOCKET CAMERA
NO. CODE PARTS NAME REMARK
1 KBJ-M72A0-300 SINGLE CAM. SUB ASSY
2 KV1-M6474-040 LED DRIVER BRD.ASSY
3 LC5-M7554-100 M.LIGHT BOARD ASSY
4 LC5-M6820-000 HNS,AREA JOIN LIGHT1
5 LC5-M6821-001 HNS,AREA JOIN LIGHT2
6 LC5-M6822-001 HNS,AREA JOIN LIGHT3
7 LC5-M6823-001 HNS,AREA JOIN LIGHT4
B:20100416
A
1
2
3
②KV1-M6474-040
③LC5-M7554-100 ③LC5-M7554-100 ③LC5-M7554-100 ③LC5-M7554-100
④
⑤ ⑥
⑦
11.SOCKET CAMERA
