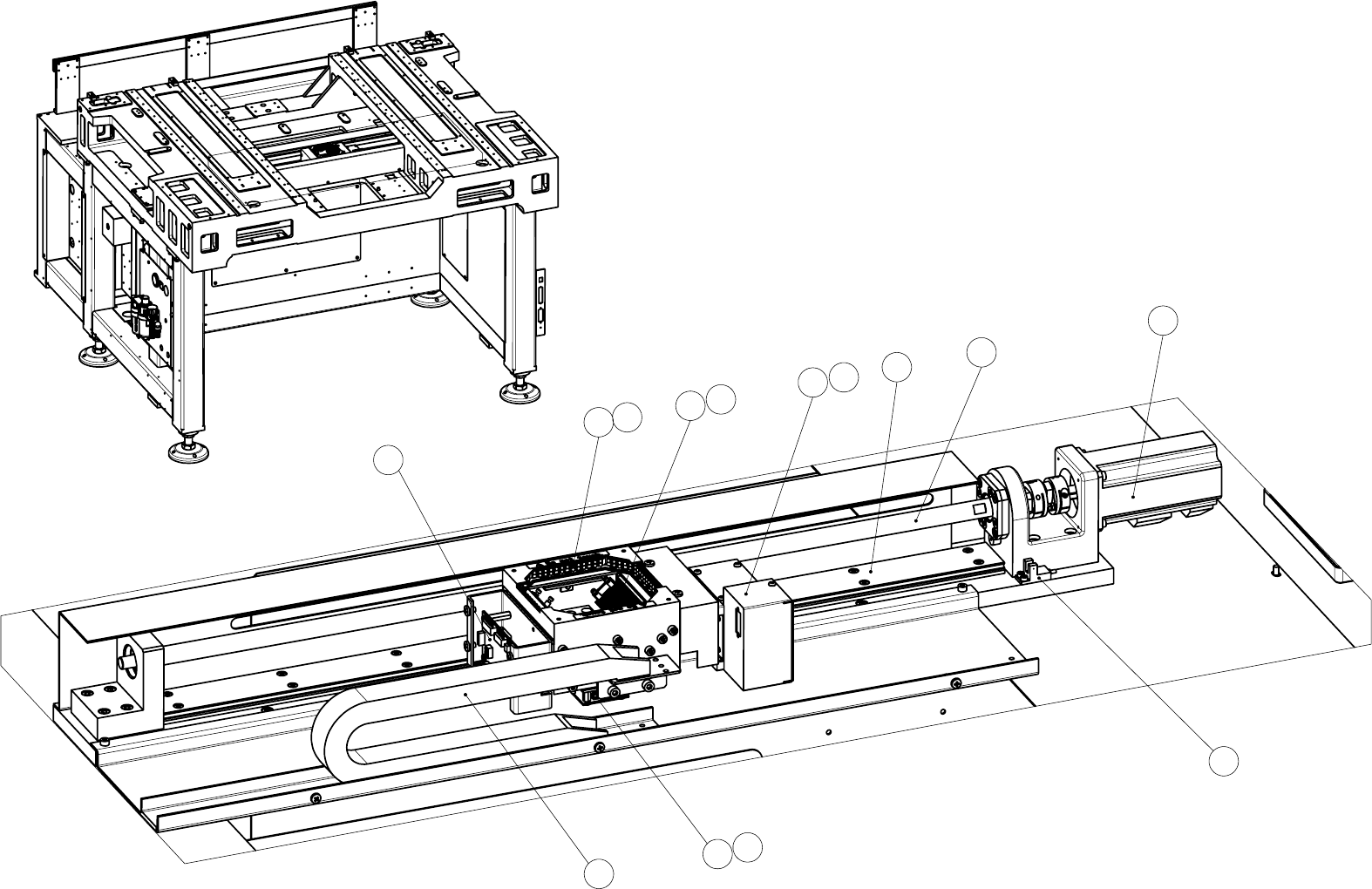

A 1 2 3 5 7 9 10 11 12 13 14 4 6 8 12.PARTS CAMERA
V4 Maintenance Parts List
12.PARTS CAMERA
NO. CODE PARTS NAME REMARK
1 KBJ-M73A0-244 MULTI,CAMERA SUB ASSY for □23
2 KBJ-M73A0-444 MULTI,CAMERA SUB ASSY for □46
3 KV7-M7550-010 M.LIGHT SIDE ASSY. SIDE LED
4 LC4-M66N8-401 HNS,LINE SIDE LIGHT8
5 KV7-M7554-203 M.LIGHT MAIN BOARD A MAIN LED
6 LC5-M6AN8-001 HSN,LINE MAIN LIGHT8
7 KV7-M7558-010 M.LIGHT COAX. ASSY COAX. LED
8 LC4-M66N8-501 HNS,LINE COAX LIGHT8
9 KV1-M6474-040 LED DRIVER BRD.ASSY
10 LC5-M7325-000 CABLE,DUCT
11 LC5-M7371-001 BALL,SCREW
12 LC5-M73K1-001 SENSOR,ASSY SCAN Scan Origin Sensor
13 LC5-M488E-002 AC SERVO MOTOR SCAN Scan Motor
14 KAU-M2221-630 GUIDE,1
B:20100416
A
1
2
3
5
7
9
10
11
12
13
14
4
6
8
12.PARTS CAMERA
V4 Maintenance Parts List
13.TRAY CAMERA
NO. CODE PARTS NAME REMARK
1 KGA-M7210-012 CCD CAMERA
2 KV7-M7214-504 LENS 60
3 KV1-M6474-040 LED DRIVER BRD.ASSY
4 KV8-M7550-001 M.LIGHT SIDE ASSY
5 KV8-M7550-100 M.LIGHT SIDE ASSY
6 LC4-M66N8-601 HNS,AREA LIGHT8
7 LC5-M6824-000 HNS,AREA MAIN LIGHT8
B:20100416
