V4 Maintenance Parts List 14.TRAY SHUTTLE NO. CODE PARTS NAME REMARK 1 LC5-M9002-010 BALL SCREW 2 LC5-M9003-000 LINEAR GUIDE 3 LC5-M90A6-000 LINEAR BUSH 4 LC5-M90AA-010 CABLE DUCT 5 LC5-M90AC-000 SPRING,12D17L65 6 LC5-M9…
A
1
2
3
4
5
7
6
13.TRAY CAMERA
V4 Maintenance Parts List

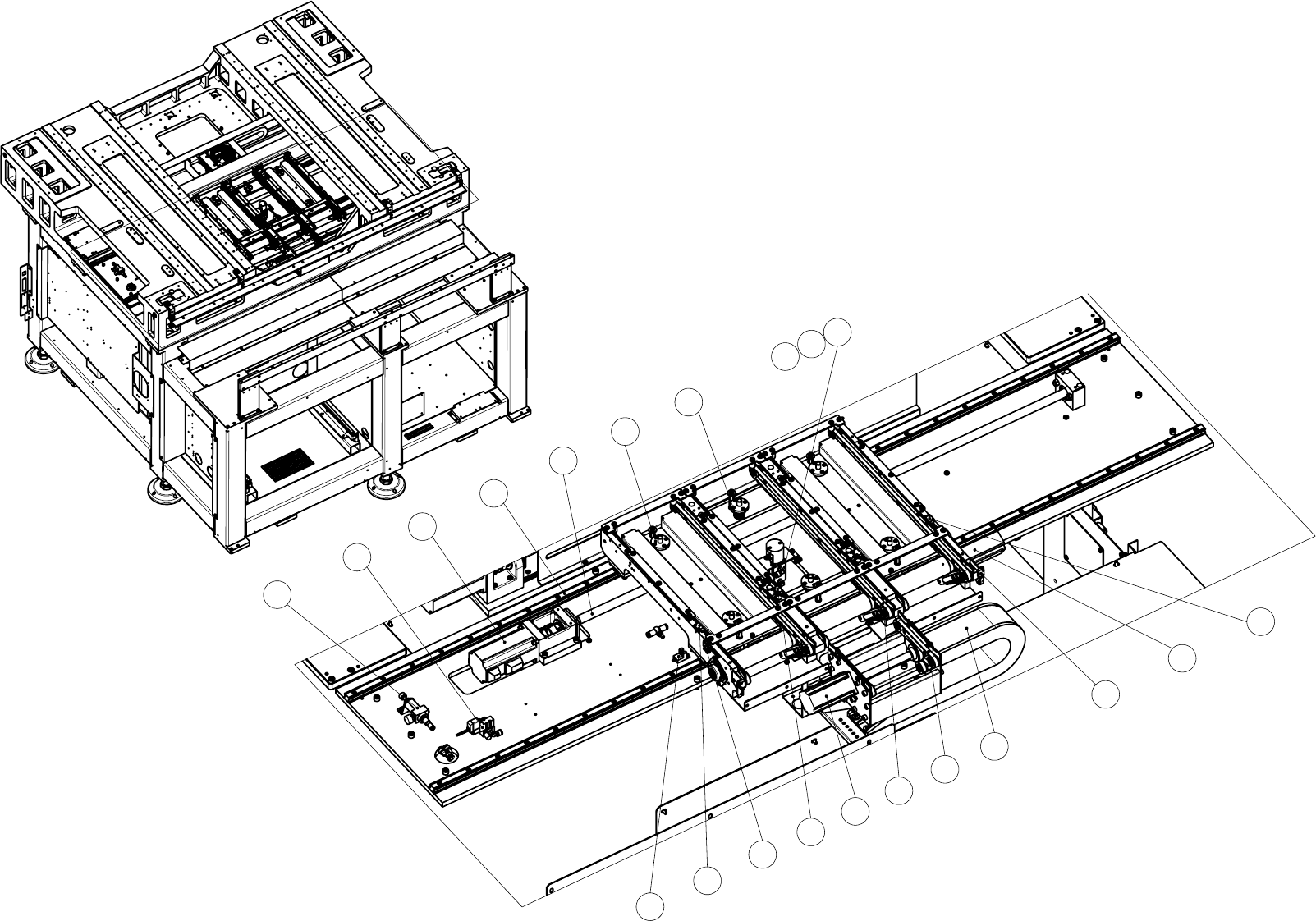

14.TRAY SHUTTLE
NO. CODE PARTS NAME REMARK
1 LC5-M9002-010 BALL SCREW
2 LC5-M9003-000 LINEAR GUIDE
3 LC5-M90A6-000 LINEAR BUSH
4 LC5-M90AA-010 CABLE DUCT
5 LC5-M90AC-000 SPRING,12D17L65
6 LC5-M90AD-001 CYLINDER Tray UNCLAMP
7 LC5-M488A-002 MOTOR ASSY. Tray 2 Motor
8 LC5-M90K1-000 SENSOR ASSY. Tray 2 Origin Sensor
9 LC5-M90K2-000 SENSOR ASSY. Tray UNCLAMP UP
10 LC5-M90K2-100 SENSOR ASSY. Tray UNCLAMP DOWN
11 LC5-M90KA-000 VALVE ASSY. Tray UNCLAMP
12 LC4-M3AA5-000 REGULATOR
13 LC5-M95A1-000 BELT Tray Conveyer 3 Belt
14 LC5-M95A3-000 BELT Tray Conveyer 4 Belt
15 LC5-M4887-001 AC SERVO MOTOR CNV3 Conveyer 3 Motor
16 LC5-M4888-002 AC SERVO MOTOR CNV4 Conveyer 4 Motor
17 LC5-M90K3-101 SENSOR ASSY. Shuttle 1 Tray DETECT
18 LC5-M90K3-201 SENSOR ASSY. Shuttle 2 Tray DETECT
19 LC5-M90K3-301 SENSOR ASSY. Shuttle 3 Tray DETECT
20 LC5-M90K4-001 SENSOR ASSY. Conveyer Tray DETECT
21 LC5-M90K5-001 SENSOR ASSY. Shuttle SAFETY
B:20100416
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
20
18
19
21
14.TRAY SHUTTLE
