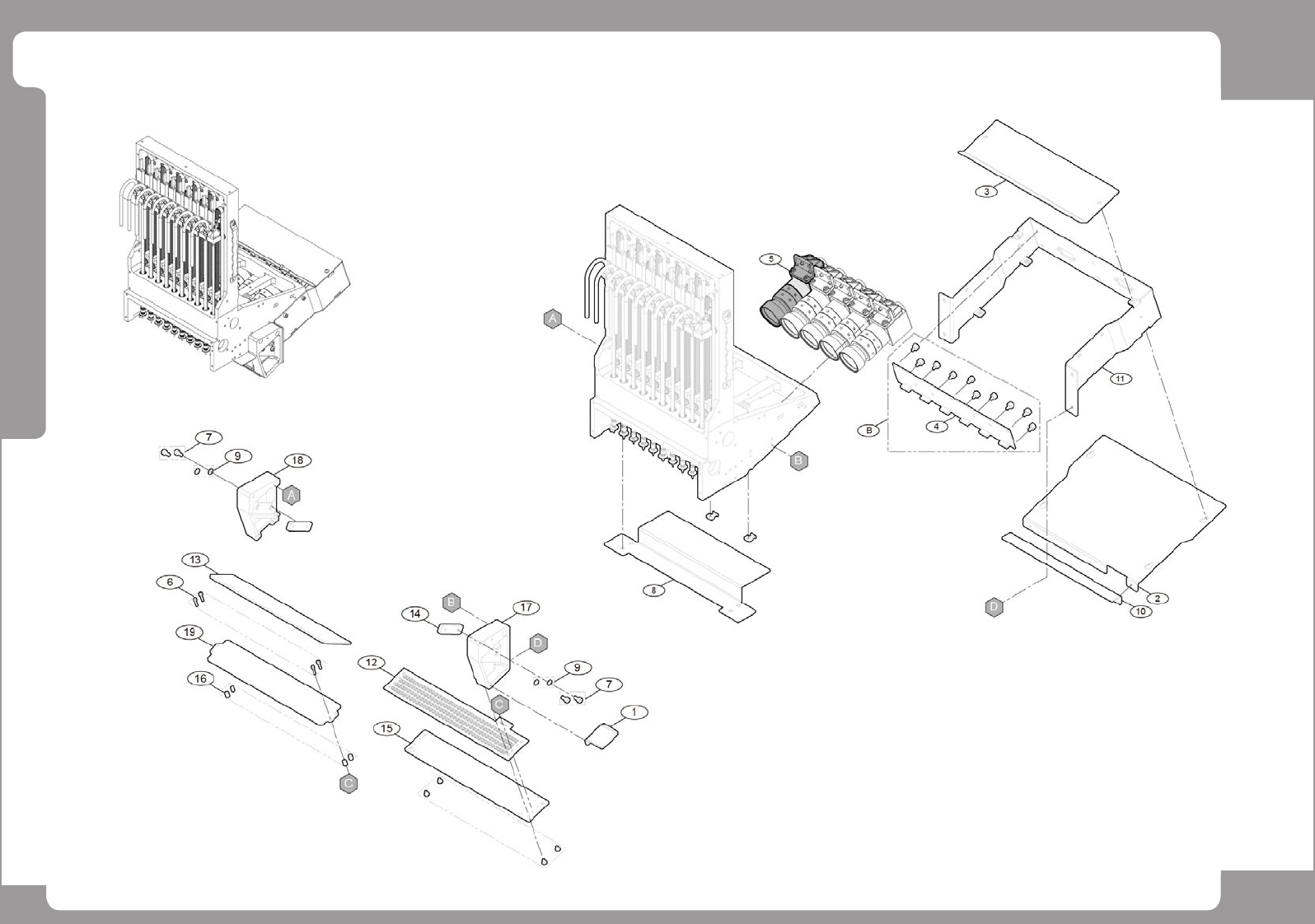

Head (5/6) - S2 Option
Page
+$1:+$
151
DECAN
F2/S2
Head (5/6) - S2 Option
NO. PART NO. PART NAME Q'TY Old No. Reference
1 FC09-004658A FID_CAM_COVER 1
2 FC09-001563B FLY_IO_BOTTOM_COVER 1
3 FC09-001562A FLY_IO_TOP_COVER 1
4 AM06-000358B ASSY,PCB SMD-CAMERA_IO BD 1
5 AM03-031502A ASSY,OPTICS-S2_FLY_FOV20_MEGA_ONE_KIT 5 HEXA Type / #1303 ~
AM03-019770B ASSY,HEAD-FLY CAM KIT S2 5 MEGA Type / #1 ~ 1302
6 FC18-902707 SOCKET HEAD CAP SCREW 4
7 FC18-902719 SOCKET HEAD CAP SCREW 4
8 FC15-001311A LIGHT_COVER 1
9 FC18-903475 FLAT WASHER 4
10 FC30-000971B PLATE-COAXIAL_COVER 1
11 FC09-001561C FLY_CAM_COVER 1 FC09-001561A/ FC09-001561B
B AM03-006110A FLY_IO_BOARD_ASSY 1
FC36-001053A SHEET-BLACK;FINE SHUT SP,157,75 1
12 AM03-005100C FLY_COAXIAL_PCB_ASSY 1
13 EP12-000029B MIRROR,OPTICS-BEAM_SPLITTER 1
14 FC09-001565B BRACKET-BS_CLAMP 2
15 FC09-004588A BRACKET-COAXIAL_PLATE 1
16 FC09-001849A BRACKET-COAXIAL_SPACE 4
17 FC09-004589A BRACKET-FLY_SIDE_PLATE1 1
18 FC09-004590A BRACKET-FLY_SIDE_PLATE2 1
19 RM03-000032A PLASTICS-PLUS_COAXIAL_DIFFUSEER 1
