Page +$1:+$ 177 DECAN F2/S2 Cover (1/2) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference A AM03-010723A ASSY ,COVER-COVER TOT AL 1 B AM03-01 1036A ASSY ,COVER-LOWER FL 1 1 FC29-900217 SLIDE_LA TCH 3…
Page
+$1:+$
176
DECAN
F2/S2
Cover (1/2)
Page
+$1:+$
177
DECAN
F2/S2
Cover (1/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-010723A ASSY,COVER-COVER TOTAL 1
B AM03-011036A ASSY,COVER-LOWER FL 1
1 FC29-900217 SLIDE_LATCH 3
2 FC15-002083A DOOR FRONT 1
3 FC15-002082A LOWER FL 1
4 FC15-002066A LOWER FR 1
5 FC15-001147B FB SIDE COVER 4 FC15-001147A
6 FC29-900144 DRAWER_PULL_HD 4
7 FC15-002184B INLET FAN COVER 4
8 FC15-002183B LFM COVER 2
9 J70521088B FB COVER 2
10 FC15-002062A SIDE LOWER L 1
11 FC15-002061A SIDE LOWER R 1
C AM03-018772A ASSY,COVER-LOWER RR 1 AM03-011033A(~#197)
12 FC15-002079B LOWER RR 1 FC15-002079A
13 FC15-002080A DOOR REAR 2
D AM03-018773A ASSY,COVER-LOWER RL 1 AM03-011034A(~#197)
14 FC15-002081B LOWER RL 1 FC15-002081A
15 FC29-900019 SET_CAP 4
16 AM03-022731A TEACHING_BOX 2
Page
+$1:+$
178
DECAN
F2/S2

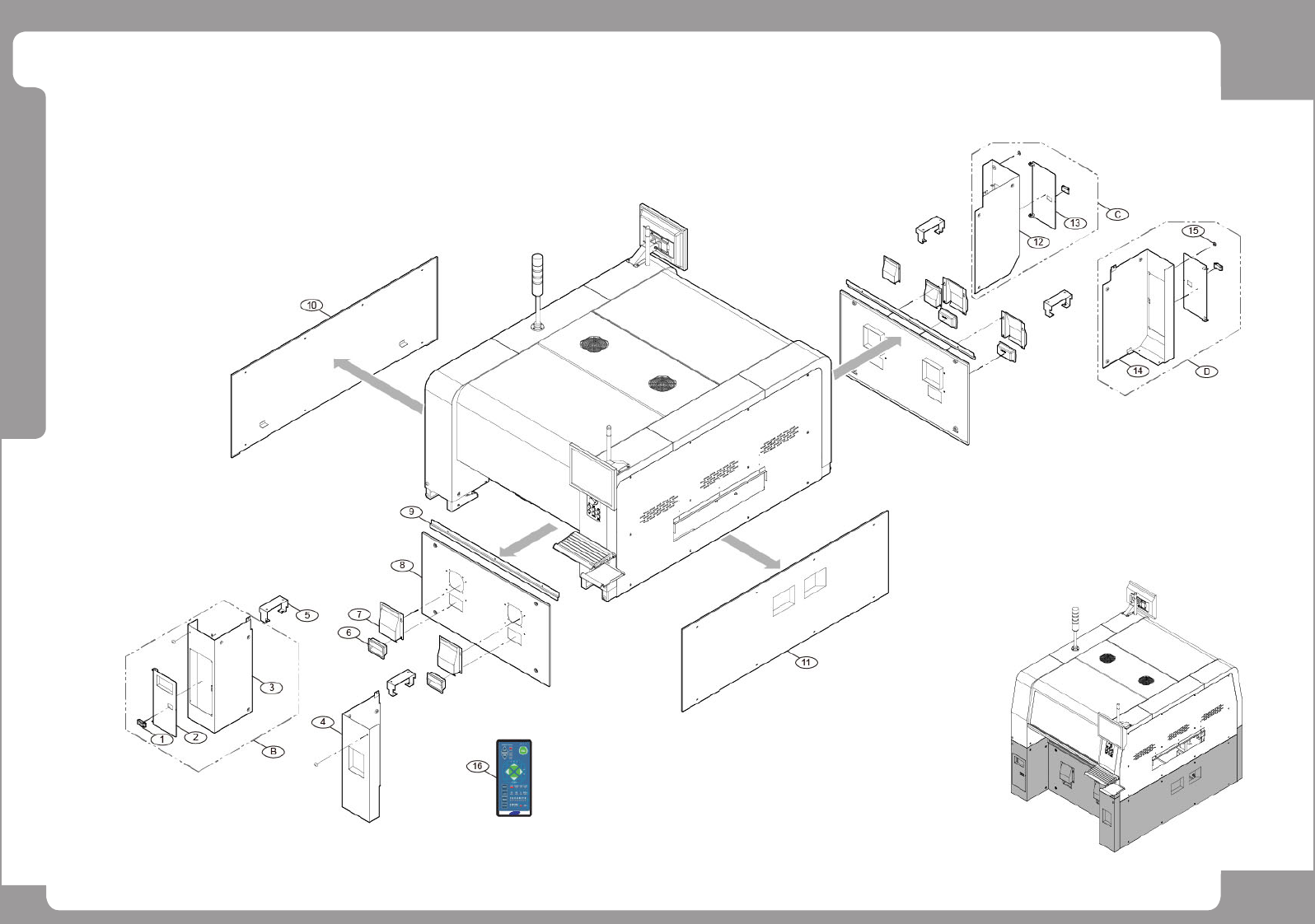

Cover (2/2)
51
76
33
48
50
35
10
22
23
60
21
28
56
8
9
15
14
13
12
63
20
4
64
B
3
2
47
76
57
44
34
19
45
46
42
43
41
36
58
59
54
53
37
26
25
31
17
27
24
29
30
55
39
40
52
38
16
49
6
18
20
5
11
1
61
A
OP PANEL
62
72
73
71
75
74
70
69
65
68
66
67
71
10
