5 6 8 18 10 16 11 12 15 4 2 3 18 7 9 17 13 17 19 5 20 7 OLD OLD 14 16 OLD 7 Fig1 Fig2 No. Part No. Part Name Q’ty Remarks Change Compati. 1 2 KHJ-MC132-00 SPROCKET 1 2-1 KHJ-MC132-01 SPROCKET 1 Resin (2008/10/14) OK 2-2 …

100%1 / 36
16
14
13
10
25
27
3
19
3
18
23
21
5
26
15
6
7
8
17
9
24
30
28
2
4
23
22
31
20
3
29
No. Part No. Part Name Q’ty Remarks Change
Compati.
1
2
KHJ-MC202-00 COVER,FEEDER SIDE 1
1
3
KHJ-MC40C-S0 SEAL,MAIN LABEL
1
*Attention (2014/7/24)
4
KHJ-MC10E-00 SCREW,FLAT HEXLOBE
11
5
KHJ-MC210-00 MOTOR, FEED
1
5-1
KHJ-MC210-01 MOTOR, FEED
1
CN change (2011/4/13) NG
6
KHJ-MC134-00 GEAR,IDLE F1
1
7
KHJ-MC135-00 GEAR,IDLE F2
1
8
KHJ-MC136-01 GEAR,IDLE F3
1
9
KHJ-MC137-00 GEAR,IDLE F4
1
10
KHJ-MC238-00 GEAR,DRIVEN
1
11
12
13
KHJ-MC23C-00 PLATE,PUSHER GEAR
1
14
KHJ-MC13D-00 SPRING,PUSHER PLATE
3
15
90990-08J021 SCREW,STAD
4
16
KHJ-MC43G-00 SHAFT,GEAR DRIVEN
1
17
KHJ-MC13P-00 SPACER,F3
1
18
KHJ-MC461-00 BOX,TOP TAPE
1
19
KHJ-MC262-00 COVER,TOP TAPE BOX
1
not for sale
20
KHJ-MC165-00 MAGNET,TAIL
1
21
KHJ-MC466-00 BLOCK,P/O TOOTH 1
1
22
90990-09J008 SCREW,FLAT HEAD
11
23
KHJ-MC46T-00 BOLT HEX.S/H LOW
4
24
KHJ-MC46U-00 TAIL COVER ASSY.
1
not for sale
25
KHJ-MC406-00 PLATE,UNDER
1
26
90166-02JA03 SCREW,PAN HEAD
2
27
98707-03006 SCREW,FLAT HEAD
3
27-1
98707-03006 SCREW,FLAT HEAD
2
"Q'ty" change
(2011/4/20) OK
28
98707-03008 SCREW, FLAT HEAD
1
(2011/4/20)
29
KHJ-MC46Y-S0 PARTS,TOP TAPE BOX
1
*Attention (2014/7/28)
30
KHJ-MC46U-S0 PARTS,TAIL COVER
1
*Attention (2009/6/17)
31
KHJ-MC462-S0 PARTS,BOX COVER
1
*Attention (2009/6/17)
*Attention: <Service exclusive> Please state the serial number of the feeder when ordering.
*Attention: <
サービス専用
>
注文時には、フィーダーのシリアル No. を記載してください。
KHJ-1909
3
1

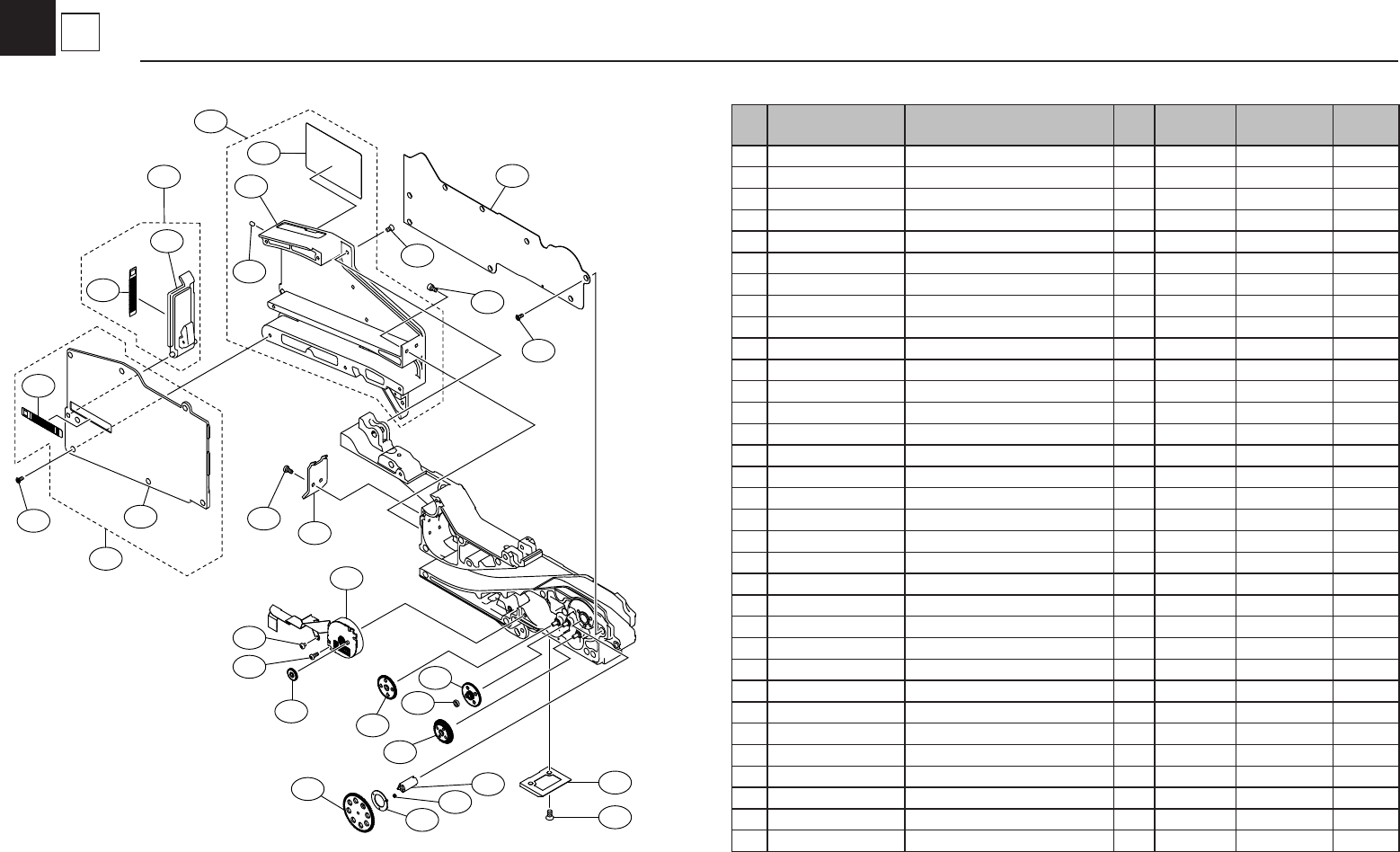

FEED & BODY 24mm
5
6
8
18
10
16
11
12
15
4
2
3
18
7
9
17
13
17
19
5
20
7
OLD
OLD
14
16
OLD
7
Fig1Fig2
No. Part No. Part Name Q’ty Remarks Change
Compati.
1
2
KHJ-MC132-00 SPROCKET
1
2-1
KHJ-MC132-01 SPROCKET
1
Resin (2008/10/14) OK
2-2
KHJ-MC132-02 SPROCKET
1
Metal (2011/4/27) OK
3
KHJ-MC23A-00 SHIM,SPROCKET
1
4
KHJ-MC43E-00 BOLT HEX.S/H LOW
1
5
KHJ-MC441-00 TAPE GUIDE ASSY.
1
5-1
KHJ-MC441-01 TAPE GUIDE ASSY.
1
(2008/5/17) OK
5-2
KHJ-MC441-03 TAPE GUIDE ASSY.
1
(2009/3/2) NG
5-3
KHJ-MC441-04 TAPE GUIDE ASSY.
1
(2009/7/7) OK
5-4
KHJ-MC441-05 TAPE GUIDE ASSY.
1
(2009/12/2) OK
6
KHJ-MC244-00 LEVER,TAPE GUIDE R
1
7
KHJ-MC445-00 LEVER,TAPE GUIDE F
1
Fig1
7-1
KHJ-MC445-01 LEVER,TAPE GUIDE F
1
Fig2 (2009/3/2) NG
7-2
KLJ-MC445-00 LEVER F 24MM
1
shape change
(2020/12/09) OK
8
KHJ-MC146-00 SPRING,TAPE GUIDE R
1
8-1
KHJ-MC146-02 SPRING,TAPE GUIDE R
1
(2009/3/2) NG
9
KHJ-MC247-00 SPRING,TAPE GUIDE F
1
9-1
KHJ-MC247-01 SPRING,TAPE GUIDE F
1
(2009/3/2) NG
10
KHJ-MC167-00 COVER,MENBRANE
1
11
90990-09J008 SCREW,FLAT HEAD
11
12
KHJ-MC26K-00 COVER,MENBRANE 2
1
13
KLJ-MC1A5-00 DUMMY SPLICE SENS.
1
*Note-1
14
KHJ-MC2A5-10 SPLICE SENS. LARGE
1
*Note-2
15
KHJ-MC1AA-00 SWITCH,OPERATION
1
16
KHJ-MC1AB-00 SCREW,PAN HEAD TAP.
2
16-1
90990-54J007 SCREW,PAN HEAD TAP.
2
(2009/3/6) OK
17
92A08-03303 SCREW, SET
5
M3*L3
18
99480-04030 PIN,PARALLEL
2
19
KHJ-MC44W-S0 HOOK TAPE GUIDE KIT
1
(2010/2/17)
20
92902-03200 WASHER,PLAIN
1
(2008/10/14)
*Note-1: In "KHJ-MC400-00", this dummy is adopted.
*Note-1:
「
KHJ-MC400-00
」では、
ダミーを用います。
*Note-2: In "KHJ-MC400-10", this sensor is adopted.
*Note-2:
「
KHJ-MC400-10
」では、
センサーを用います。
KHJ-2101
3
2

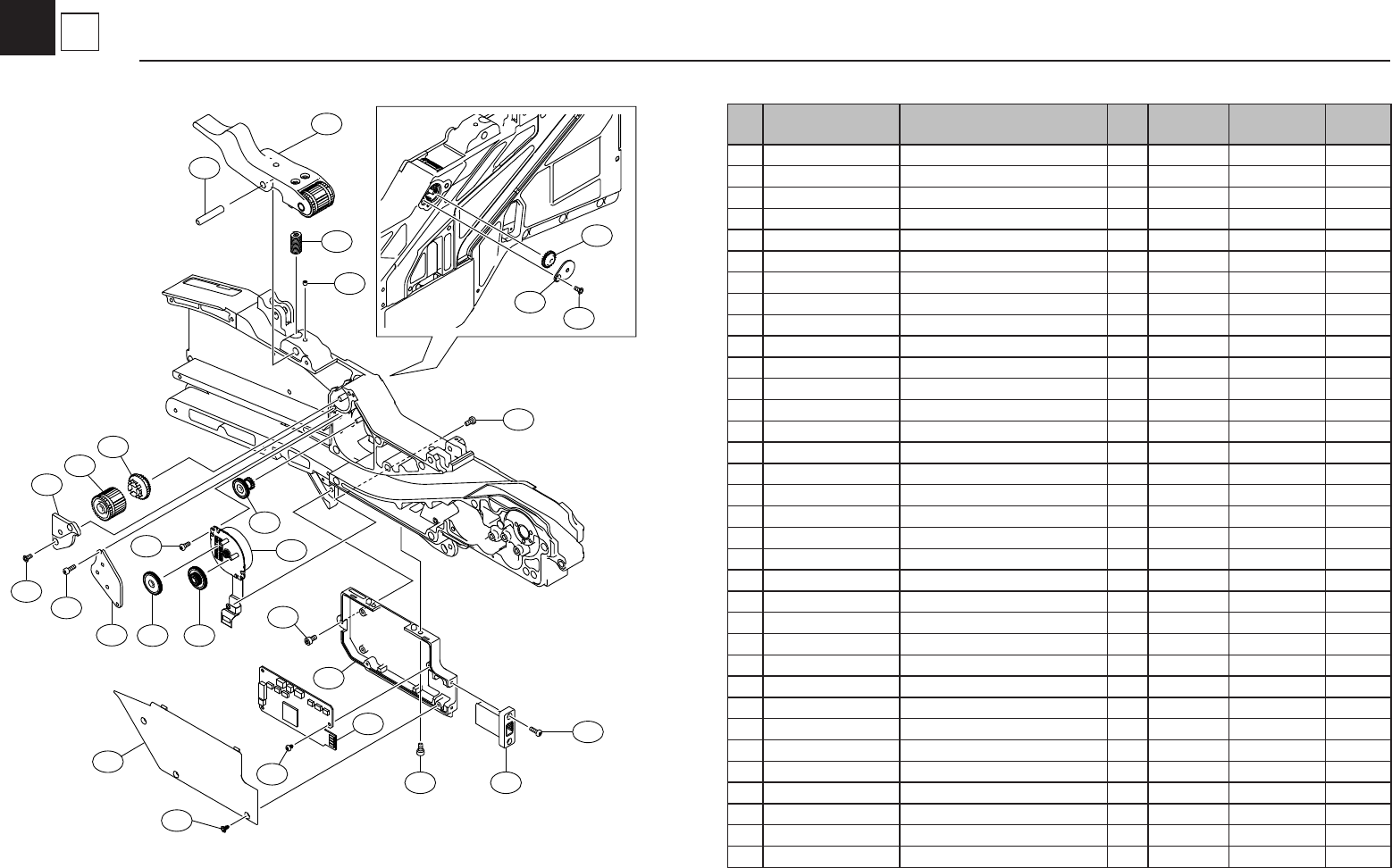

GUIDE,SPROCKET & E/L 24mm
18
7
9
1
29
16
28
25
8
11
10
1
24
15
27
19
27
21
20
22
26
5 4
2
3
6
17
23
No. Part No. Part Name Q’ty Remarks Change
Compati.
1
KHJ-MC10E-00 SCREW,FLAT HEXLOBE
11
2
KHJ-MC210-10 MOTOR, PEEL
1
2-1
KHJ-MC210-11 MOTOR, PEEL
1
CN change (2011/4/13) NG
3
90990-08J021 SCREW,STAD
4
4
KHJ-MC251-00 GEAR,IDLE P1
1
5
KHJ-MC252-00 GEAR,IDLE P2
1
6
KHJ-MC253-00 GEAR,IDLE P3
1
7
KHJ-MC254-00 GEAR,IDLE P4
1
8
KHJ-MC256-00 ROLLER,PEEL OFF 1
1
9
KHJ-MC258-00 COVER,IDLE GEAR 1
1
9-1
KHJ-MC258-01 COVER,IDLE GEAR 1
1
SUS (2008/8/8) OK
10
KHJ-MC259-00 COVER,IDLE GEAR 2
1
11
KHJ-MC45A-00 ROLLER,SUB 1
1
(2013/1/31)
12
13
14
15
KHJ-MC25E-00 COVER,IDLE GEAR 3
1
16
KHJ-MC26E-00 SPRING,P/O LEVER
1
17
90990-54J004 SCREW,PAN HEAD TAP.
3
18
KHJ-MC46V-00 P/O LEVER ASSY.
1
19
KHJ-MC1A1-00 BOX,EL
1
20
KHJ-MC1A2-00 COVER,BOX EL
1
21
KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T
3
22
KHJ-MC1A9-00 CONNECTOR,BOARD
1
23
KHJ-M4488-A0 PARTS,FEEDER BOARD
1
*Attention
23-1
KHJ-M4488-B0 PARTS,FEEDER BOARD
1
*Attention (2011/4/13) NG
24
90115-2AJ008 BOLT HEX.SOCKET HEAD
2
25
90166-02JA03 SCREW,PAN HEAD
2
M2.5*L3
26
90166-02JA06 SCREW,PAN HEAD
2
M2.5*L6
27
91317-03006 BOLT HEX.SOCKET HEAD
3
27-1
KHJ-MC11T-00 BOLT,LOCK S/H
3
Pre-coated (2011/4/22) OK
28
92A08-03303 SCREW, SET
5
M3*L3
29
99480-05025 PIN,PARALLEL
1
29-1
90990-18J030 PIN,PARALLEL
1
L25 (2013/5/20) OK
*Attention: <Service exclusive> <Connector non-compatible> Please state the serial number of the feeder when ordering.
*Attention: <
サービス専用
> <
コネクタ非互換
>
注文時には、フィーダーのシリアル No. を記載してください。
KHJ-1909
3
3

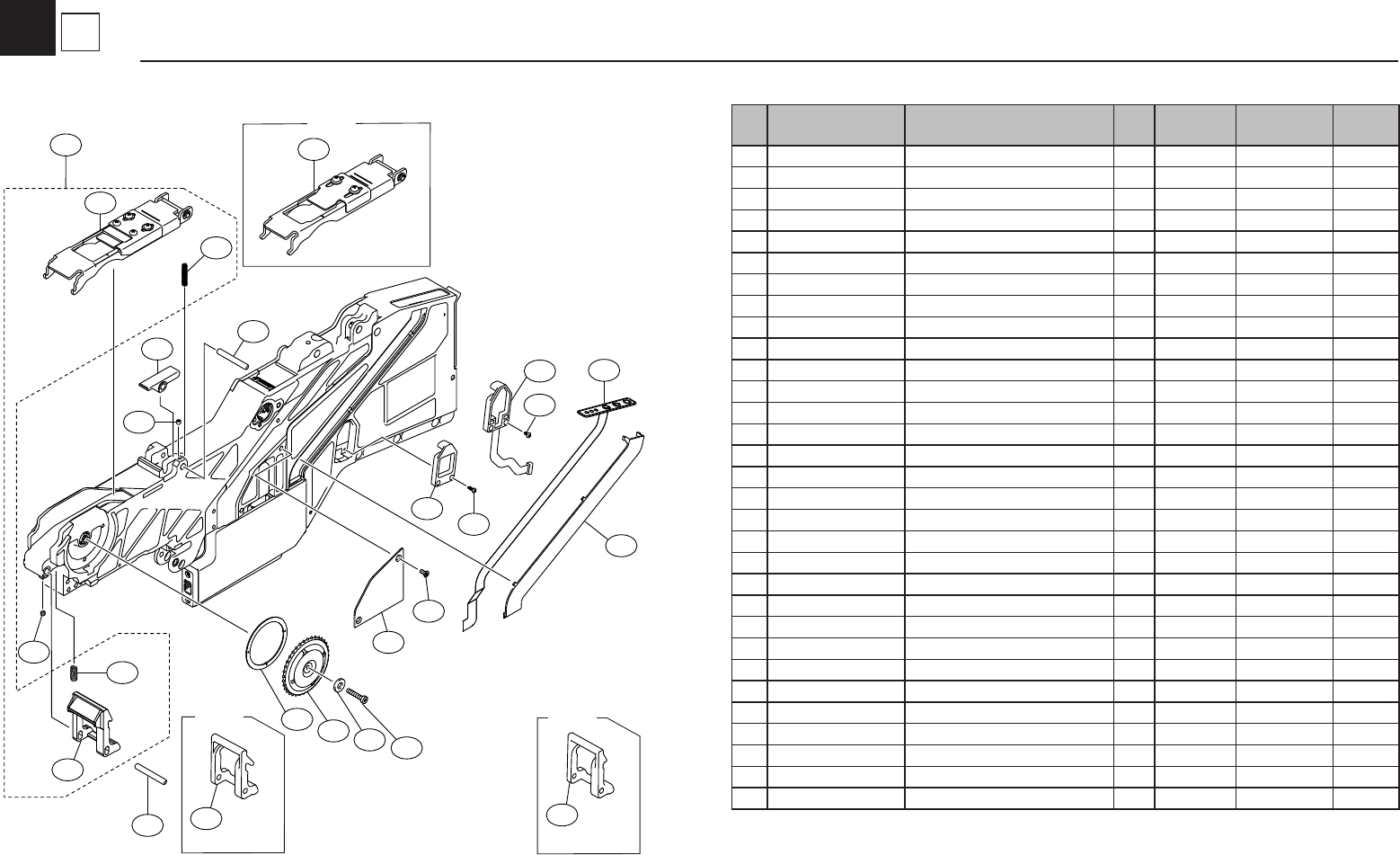

PEEL & E/L BOX 24mm
