29 28 1 8 34 18 27 25 7 6 15 31 38 17 9 16 26 36 5 40 39 39 5 32 43 30 3 36 37 41 23 2 10 11 22 35 12 41 4 14 12 13 44 33 33 33 33 33 33 OLD 5 42 No. Part No. Part Name Q’ty Remarks Change Compati. 1 2 KHJ-MC502-00 COVER…
No. Part No. Part Name Q’ty Remarks Change
Compati.
1
KHJ-MC10W-00 FRONT BLOCK ASSY
1
1-1
KLJ-MC10W-00 FRONT BLOCK ASSY
1
(2012/11/30) OK
2
KHJ-MC104-00 RAIL,UNDER
1
3
KHJ-MC105-00 PIN,TAIL
1
4
KHJ-MC10F-00 SCREW,FLAT HEAD
2
5
KHJ-MC53N-00 PIN,DOWEL
1
6
90990-09J008 SCREW,FLAT HEAD
2
7
KHJ-MC281-00 HANDLE
1
8
KHJ-MC182-00 TENSION,WIRE 1
1
9
KHJ-MC183-00 SPACER,TENSION 1
1
10
KHJ-MC184-00 SPACER,TENSION 2
1
"Q'ty" variable
11
KHJ-MC286-00 WIRE,UNCLAMP
1
12
KHJ-MC187-00 SPRING,TENSION
1
13
KHJ-MC289-00 PIN,CLAMP
1
14
KHJ-MC18A-00 SPRING,CLAMP
1
15
KHJ-MC28B-00 COVER,WIRE 1
1
16
KHJ-MC58G-00 SHAFT,HANDLE SUPPORT
1
17
KHJ-MC28H-00 CLAMP LEVER ASSY.
1
18
90990-14J001 CIRCLIP
1
19
90189-05J056 NUT,HEXAGON
1
"95307-05600"alias
20
90440-01J030 CIRCLIP
1
21
91317-03008 BOLT,HEX.SOCKET HEAD
4
22
91317-05016 BOLT,HEX.SOCKET HEAD
1
23
92A08-03303 SCREW, SET
1
M3*L3
24
92A08-03306 SCREW,SET
1
M3*L6
25
26
99480-04018 PIN,PARALLEL
1
27
99480-05014 PIN,PARALLEL
1
28
KHJ-MC107-00 SHIM,FRONT BLOCK 1
1
0.01t
KHJ-MC108-00 SHIM,FRONT BLOCK 2
1
0.05t
KHJ-MC10G-00 SHIM,FRONT BLOCK 3
1
0.1t
KHJ-MC10U-00 SHIM,FRONT BLOCK 4
1
0.03t
KHJ-MC10V-00 SHIM,FRONT BLOCK 5
1
0.02t
28
22
16
5
19
7
24
27
9
10
8
12
11
6
15
21
3
26
13
14
17
23
4
2
18
20
21
1
KHJ-1909
4
4

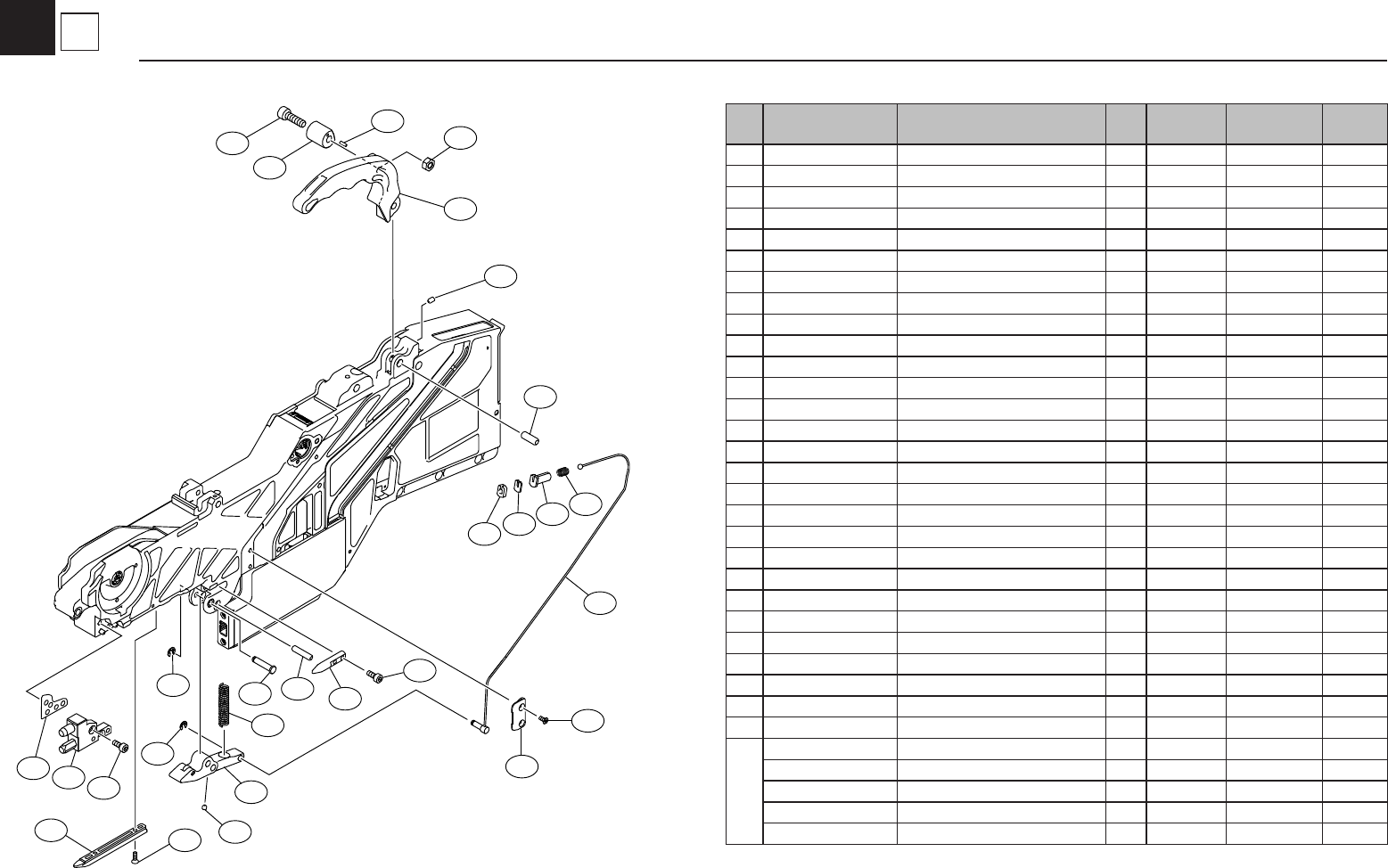

CLAMP LEVER 32mm
29
28
1
8
34
18
27
25
7
6
15
31
38
17
9
16
26
36
5
40
39
39
5
32
43
30
3
36
37
41
23
2
10
11
22
35
12
41
4
14
12
13
44
33
33
33
33
33
33
OLD
5
42
No. Part No. Part Name Q’ty Remarks Change
Compati.
1
2
KHJ-MC502-00 COVER,FEEDER
1
3
KHJ-MC106-00 PLATE,UNDER
1
4
KHJ-MC206-00 PLATE,UNDER
1
5
KHJ-MC60C-S0 SEAL,MAIN LABEL
1
*Attention (2014/7/24)
6
KHJ-MC60K-00 SPACER,44A
1
7
KHJ-MC60L-00 SPACER,44B
1
8
KHJ-MC510-00 MOTOR, FEED
1
8-1
KHJ-MC510-01 MOTOR, FEED
1
CN change (2011/4/13)
NG
9
KHJ-MC532-00 SPROCKET
1
10
KHJ-MC534-00 GEAR,IDLE F1
1
10-1
KHJ-MC534-01 GEAR,IDLE F1
1
(2010/3/5)
OK
11
KHJ-MC535-00 GEAR,IDLE F2
1
12
KHJ-MC53R-00 GEAR,IDLE F3-1
1
press-tted to [13]
12-1
KHJ-MC536-00 GEAR,IDLE F3
1
(2008/9/1)
13
KHJ-MC53S-00 GEAR,IDLE F3-2
1
press-tted to [12]
13-1
deleted (2008/9/1)
14
KHJ-MC537-00 GEAR,IDLE F4
1
14-1
KHJ-MC53T-00 GEAR,IDLE F4 ASSY
1
(2010/3/5)
OK
15
KHJ-MC638-00 GEAR,DRIVEN
1
16
KHJ-MC13D-00 SPRING,PUSHER PLATE
3
17
KHJ-MC53E-00 BOLT HEX.S/H LOW
1
17-1
90990-01J075 BOLT,HEXAGON S/H
1
(2012/6/11)
OK
18
90990-08J021 SCREW,STAD
2
19
22
KHJ-MC53L-00 COVER,FEED GEAR
1
23
KHJ-MC53M-00 SUB-BUSH,SPROCKET
1
23-1
KHJ-MC53M-01 SUB-BUSH,SPROCKET
1
(2009/3/10)
OK
24
25
KHJ-MC561-00 BOX,TOP TAPE
1
26
KHJ-MC562-00
COVER,TOP TAPE BOX
1
not for sale
27
KHJ-MC165-00 MAGNET,TAIL
1
28
KHJ-MC666-00 BLOCK,P/O TOOTH 1
1
29
KHJ-MC46T-00 BOLT HEX.S/H LOW
2
30
KHJ-MC66R-00 SPACER,44C
1
31
KHJ-MC66S-00 SPACER,44D
1
32
KHJ-MC66U-00 TAIL COVER ASSY.
1
not for sale
33
KHJ-MC60J-00 PIN,PARALLEL
16
34
90166-02JA03 SCREW,PAN HEAD
1
35
90115-2AJ008 BOLT HEX.SOCKET HEAD
3
36
91312-03025 BOLT,HEX.SOCKET HEAD
2
37
91312-03035 BOLT,HEX.SOCKET HEAD
5
38
91312-03040 BOLT,HEX.SOCKET HEAD
1
39
91317-03035 BOLT HEX.SOCKET HEAD
6
40
91317-03040 BOLT HEX.SOCKET HEAD
1
41
98707-03006 SCREW,FLAT HEAD
4
42
KHJ-MC66Y-S0 PARTS,TOP TAPE BOX
1
*Attention (2014/7/28)
43
KHJ-MC66U-S0 PARTS,TAIL COVER
1
*Attention (2009/6/17)
44
KHJ-MC662-S0 PARTS,BOX COVER
1
*Attention (2009/6/17)
*Attention: <Service exclusive> Please state the serial number of the feeder when ordering.
*Attention: <
サービス専用
>
注文時には、フィーダーのシリアル No. を記載してください。
KHJ-1909
5
1

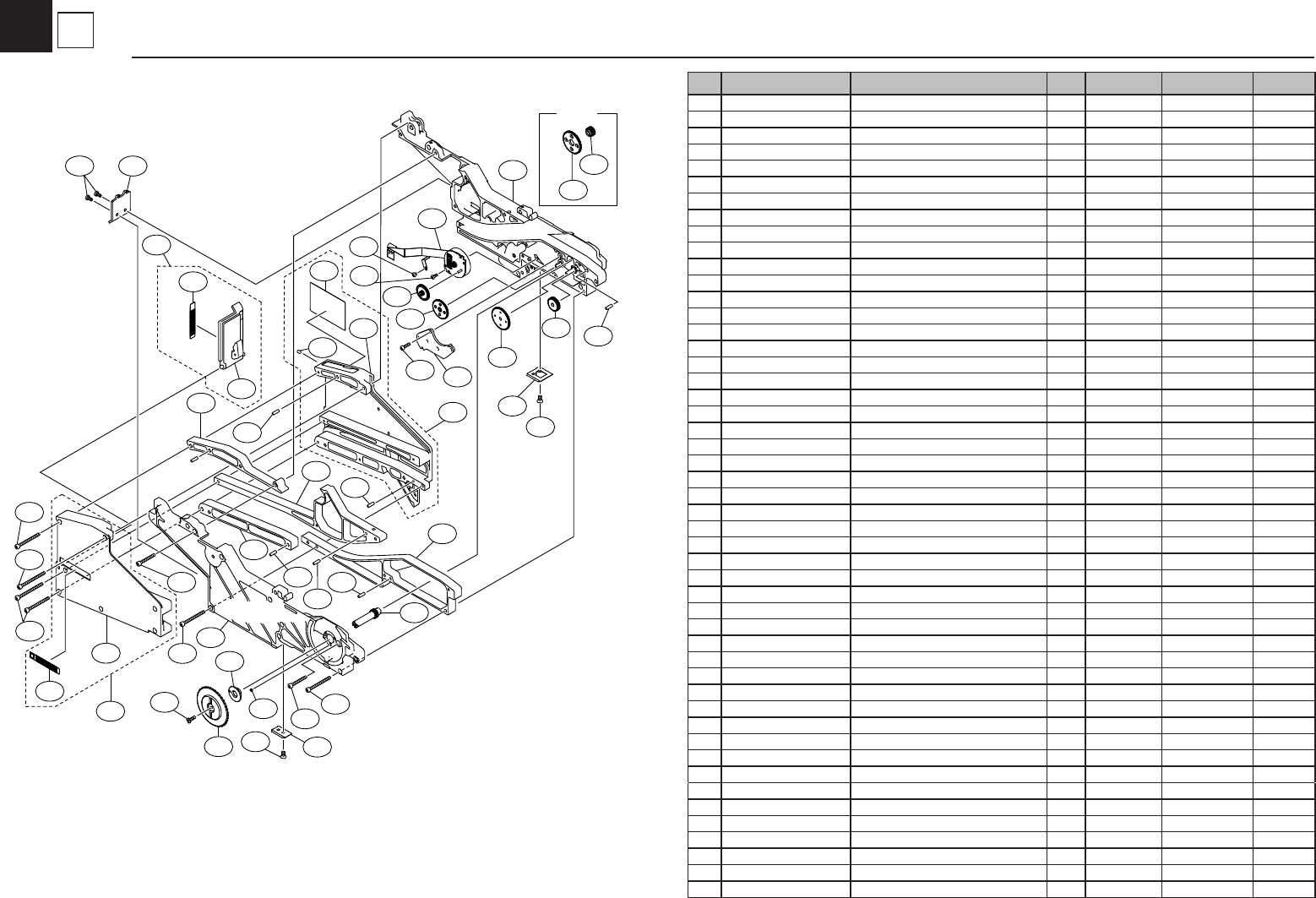

FEED & BODY 44mm
No. Part No. Part Name Q’ty Remarks Change
Compati.
1
2
KHJ-MC532-00 SPROCKET
1
3
4
KHJ-MC53E-00 BOLT HEX.S/H LOW
1
4-1
90990-01J075 BOLT,HEXAGON S/H
1
(2012/6/11) OK
5
KHJ-MC641-00 TAPE GUIDE ASSY.
1
5-1
KHJ-MC641-01 TAPE GUIDE ASSY.
1
(2008/5/28) OK
5-2
KHJ-MC641-02 TAPE GUIDE ASSY.
1
(2009/3/2) NG
5-3
KHJ-MC641-03 TAPE GUIDE ASSY.
1
(2010/1/11) OK
6
KHJ-MC244-00 LEVER,TAPE GUIDE R
1
7
KHJ-MC645-00 LEVER,TAPE GUIDE F
1
7-1
KHJ-MC645-01 LEVER,TAPE GUIDE F
1
(2009/3/2) NG
8
KHJ-MC146-00 SPRING,TAPE GUIDE R
1
8-1
KHJ-MC146-02 SPRING,TAPE GUIDE R
1
(2009/3/2) NG
9
KHJ-MC247-00 SPRING,TAPE GUIDE F
1
9-1
KHJ-MC247-01 SPRING,TAPE GUIDE F
1
(2009/3/2) NG
10
KHJ-MC64E-00 SHAFT,LEVER
1
11
KHJ-MC64F-00 BASE,LEVER R
1
12
KHJ-MC167-00 COVER,MENBRANE
1
13
90990-09J008 SCREW,FLAT HEAD
2
14
KHJ-MC26K-00 COVER,MENBRANE 2
1
15
KLJ-MC1A5-00 DUMMY SPLICE SENS.
1
*Note-1
16
KHJ-MC2A5-10 SPLICE SENS. LARGE
1
*Note-2
17
KHJ-MC1AA-00 SWITCH,OPERATION
1
18
90990-54J003 SCREW,PAN HEAD TAP.
2
18-1
90990-54J007 SCREW,PAN HEAD TAP.
2
(2009/3/6) OK
19
92A08-03303 SCREW, SET
2
M3*L3
20
99480-04040 PIN,PARALLEL
1
21
KHJ-MC64W-S0 HOOK TAPE GUIDE KIT
1
(2010/2/17)
5
6
8
20
12
18
13
17
4
2
10
7
9
19
15
19
21
5
11
14
7
OLD
OLD
16
18
*Note-1: In "KHJ-MC600-00", this dummy is adopted.
*Note-1:
「
KHJ-MC600-00
」では、
ダミーを用います。
*Note-2: In "KHJ-MC600-10", this sensor is adopted.
*Note-2:
「
KHJ-MC600-10
」では、
センサーを用います。
KHJ-1909
5
2

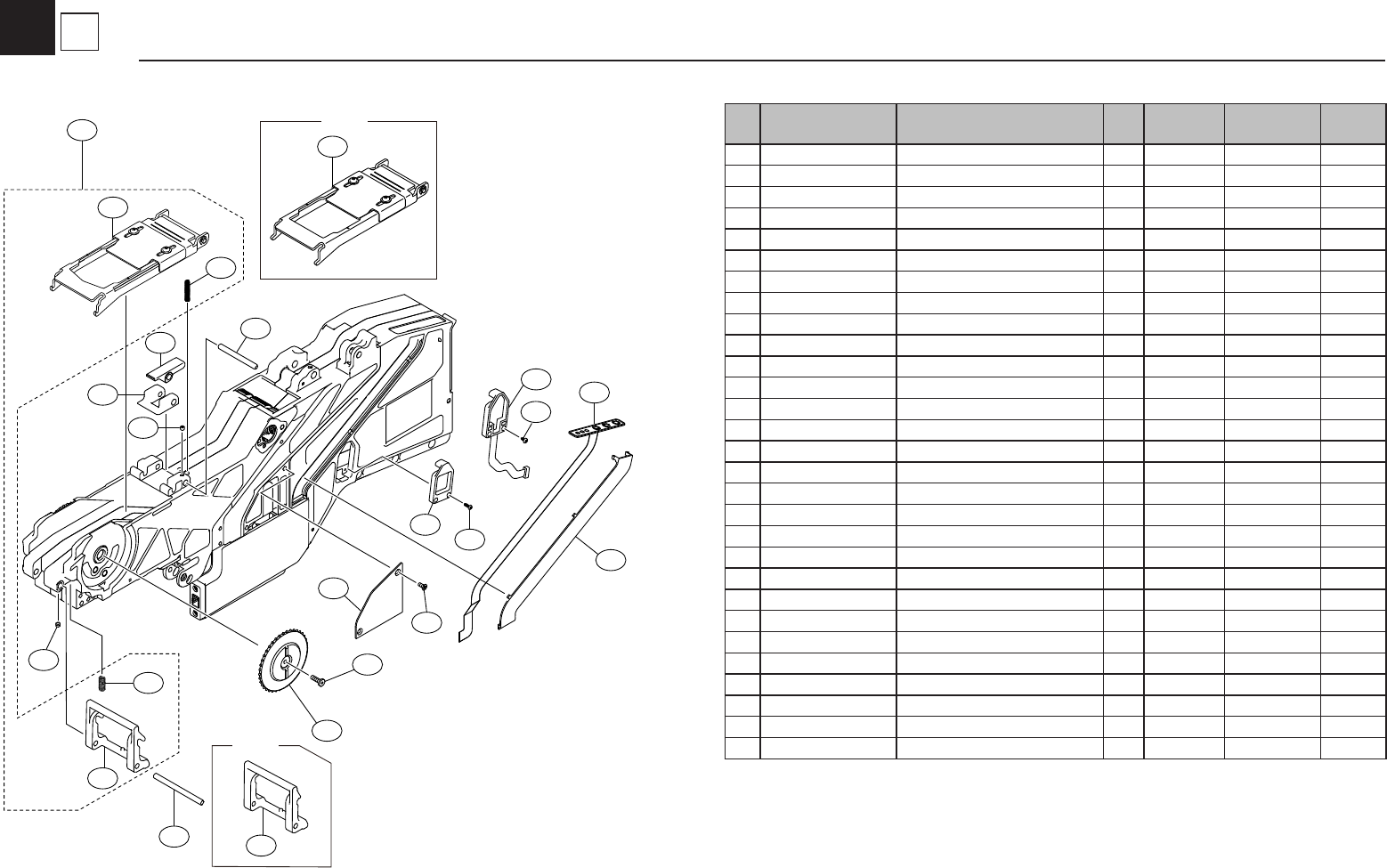

GUIDE,SPROCKET & E/L 44mm
