Page SAMSUNG TECHWIN 103 SM168 Axis Sensor IF(1/2) NO. Lev . P ART N O. P ART NAME Q'TY O ld No. Supply Supply L T Reference 1 J90831423C AXIS_SE NSOR_BD_PW_CABLE_ASS Y 1 SM41_AX001 2 AM03-0039 94A CABLE ASSY -Y_ AX…
Page
SAMSUNG TECHWIN
102
SM168
Axis Sensor IF(1/2)
1
2
3 4
5 6
Page
SAMSUNG TECHWIN
103
SM168
Axis Sensor IF(1/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90831423C AXIS_SENSOR_BD_PW_CABLE_ASSY 1 SM41_AX001
2 AM03-003994A CABLE ASSY-Y_AXIS_SENSOR 1 SM421_AX103
3 AM03-003576A CABLE ASSY-WD_AXIS_SENSOR 1 SM421_AX104
4 AM03-003577A CABLE ASSY-WD_AXIS_SENSOR_EXT 1 SM421_AX104-1
5 J90831428C CONVEYOR_SENSOR_IF_CABLE_ASSY 1 SM41_AX006
6 AM03-003544A CABLE ASSY-SERIAL_COMM_RACK 1 SM421_CV121
Page
SAMSUNG TECHWIN
104
SM168

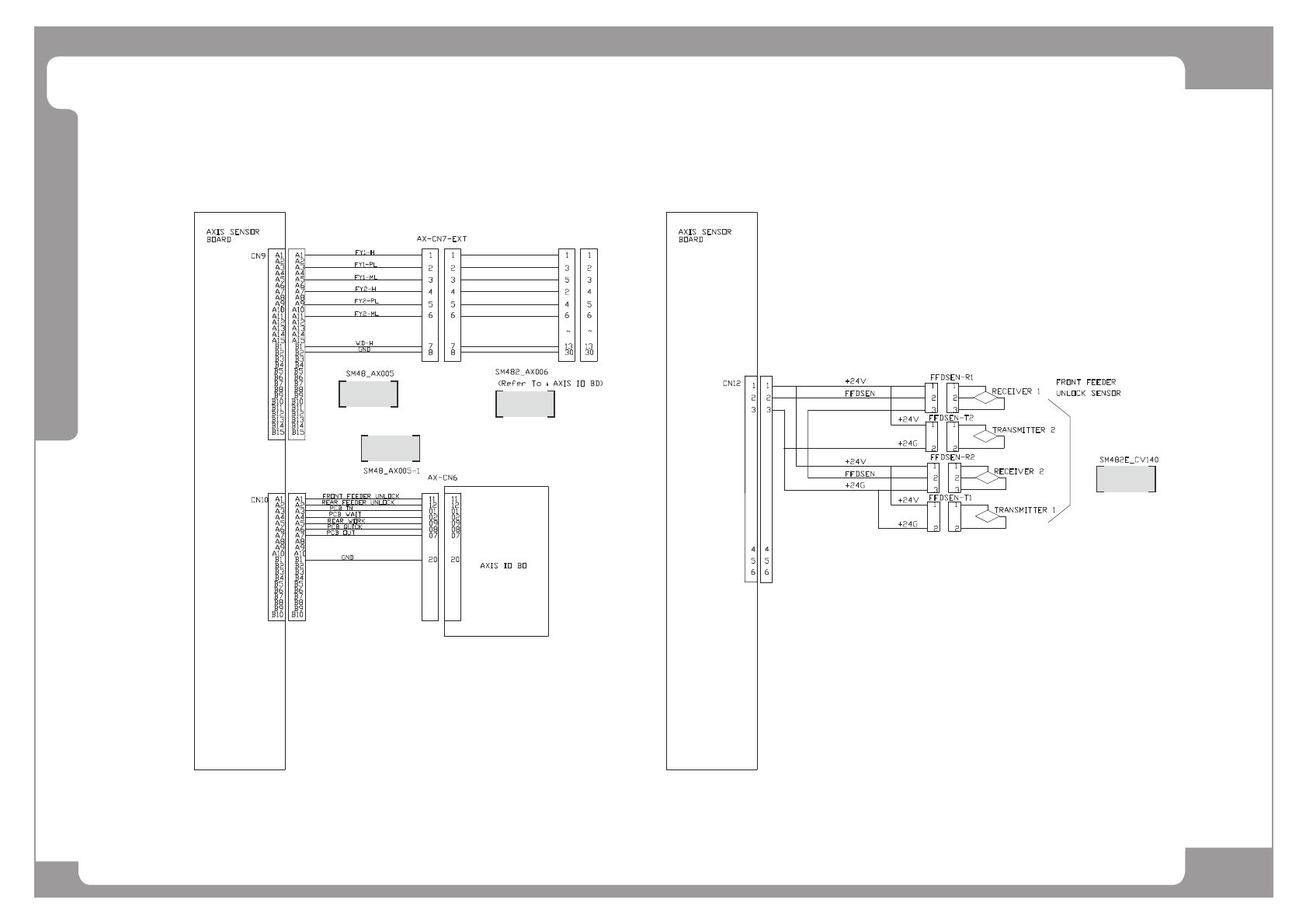

Axis Sensor IF(2/2)
1
3
4
2
