Page SAMSUNG TECHWIN 51 SM168 Head Ass’y(4/5) NO. Lev . P ART N O. P ART NAME Q'TY O ld No. Supply Supply L T Reference 1 J705514 3B CAM 1 2 J7155522A PULLEY S AXIS 1 3 J660207 8A S BEL T 243 GT 1 4 J7055557A BEARIN…
Page
SAMSUNG TECHWIN
50
SM168

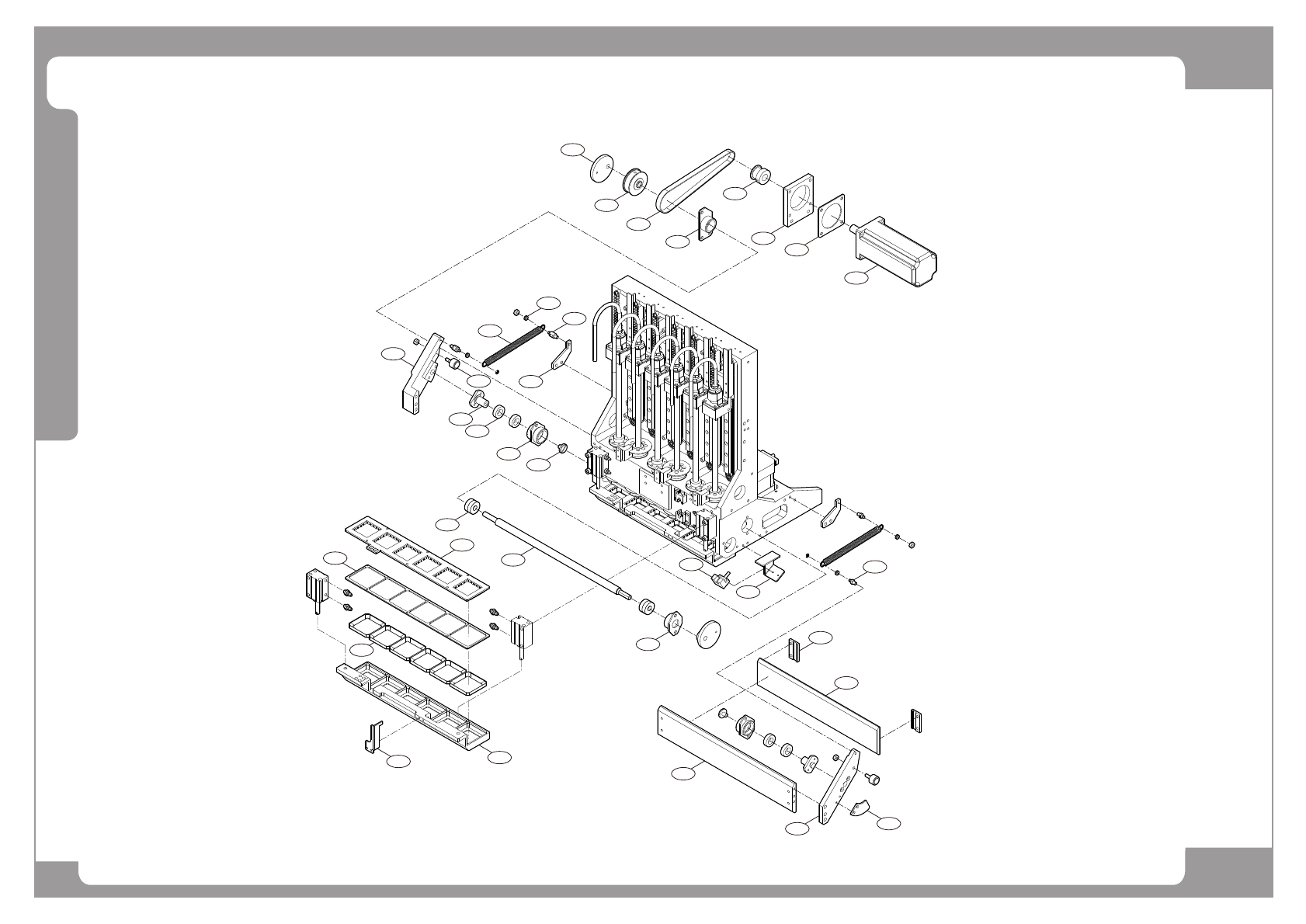

Head Ass’y(4/5)
1
2
3
4
15
16
17
19
20
21
27
28
23
18
6
7
8
12
5
9
13
10
11
14
22
24
25
26
29
30
31
34
32
33
Page
SAMSUNG TECHWIN
51
SM168
Head Ass’y(4/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J7055143B CAM 1
2 J7155522A PULLEY S AXIS 1
3 J6602078A S BELT 243 GT 1
4 J7055557A BEARING HOUSING 1
5 J7155523A PULLEY S AXIS 1
6 J7155524A MIRROR MOTOR BKT 1
7 J7255081A MIRROR MOTOR ISOLATOR 1
8 J3108061A S MOTOR 1
9 J7055561A SPRING 2
10 J7455026A SPRING BUSH 4
11 J7055558A MIRROR PIN 2
12 J7055560A MIRROR SPRING BRACKET 2
13 J7155526A MIRROR ARM LEFT 1
14 J6601081A CAM FOLLOWER 1
15 J70552024A ARM JOINT 1
16 J6601080A BALL BEARING 2
17 J7055205A MIRROR JOINT-LEFT 1
18 J7055153A MIRROR SCREW 1
19 J6601079A BALL BEARING 2
20 J7055207B MIRROR SHAFT 1
21 J7055163A BEARING HOUSING 1
22 J3212027A SENSOR PM 1
23 J7055556A MIRROR SENSOR BRACKET 1
24 J7055559A MIRROR PIN 2
25 J7155197A MIRROR FIXED PLATE 2
26 J6755002A FOLDING MIRROR 1
27 J7155530A MIRROR SUPPORT 1
Page
SAMSUNG TECHWIN
52
SM168
Head Ass’y(4/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
28 J7155527A MIRROR ARM RIGHT 1
29 J7155525A MIRROR SENSOR DOG 1
30 J9060404A HEAD SIDE LED ASSY 1
31 J7255085A SIDE ILLUM ISOLATOR 1
32 FC09-002279A SIDE_SNS_DOG 1
33 J72550084B SIDE REFLECTOR 6
34 J71550570B SIDE ILLUM BODY 1
