SM168_TechnicalReference(Chi_Ver1.1) - 第130页
Page SAMSUNG TECHWIN 120 SM168 Fix ILL B/D (Option) 1 2 3 4 5 5
Page
SAMSUNG TECHWIN
119
SM168
Conveyor IF B/D(5/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-009586A CABLE ASSY-CVIF_F_TBOX 1 SM482E_CV115
2 AM03-005705A CABLE ASSY-RS232_SERIAL-EXT 1 SM471_PC003-1
3 AM03-005704A CABLE ASSY-RS232_SERIAL 1 SM471_PC003
Page
SAMSUNG TECHWIN
120
SM168

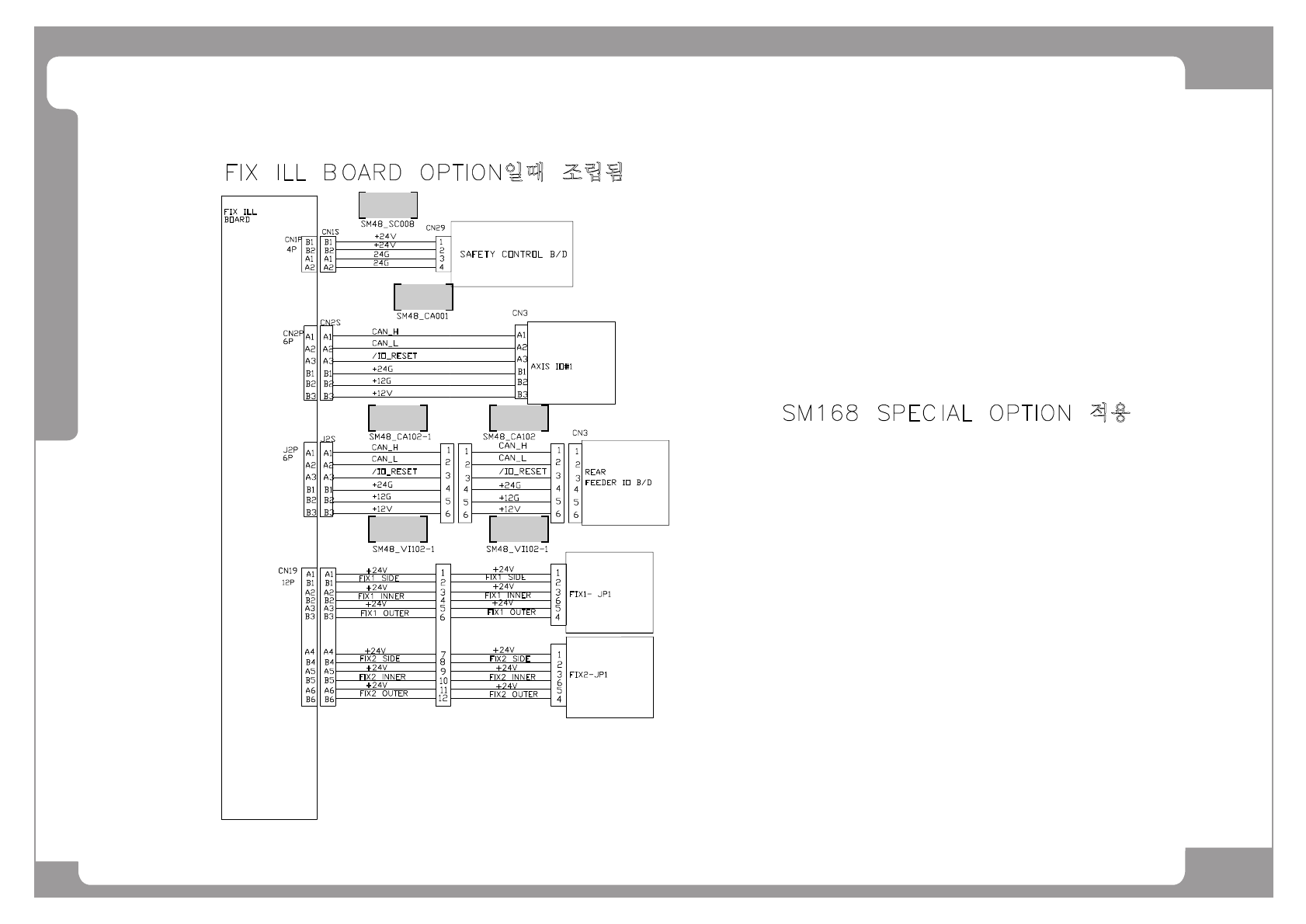

Fix ILL B/D (Option)
1
2
3 4
5 5
Page
SAMSUNG TECHWIN
121
SM168
Fix ILL B/D (Option)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-006923A CABLE ASSY-FIX_ILL_POWER 1 SM48_SC008
2 AM03-006874A CABLE ASSY-AXIS1_FIX_ILL_CAN 1 SM48_CA001
3 AM03-006875A CABLE ASSY-FIX_ILL_RFD_CAN-EXT 1 SM48_CA102-1
4 AM03-006876A CABLE ASSY-FIX_ILL_RFD_CAN 1 SM48_CA102
5 AM03-006994A CABLE ASSY-FIX_ILL_IF_EXT 2 SM48_VI102-1
