Page SAMSUNG TECHWIN 5 SM168 Feeder Base Ass'y - ST NO. L ev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC07-0000 33B VERTICAL_PLA T E 1 2 J705702 62C M_90_CAP _TOP_PLA TE 5 3 J1301 188 F…
Page
SAMSUNG TECHWIN
4
SM168

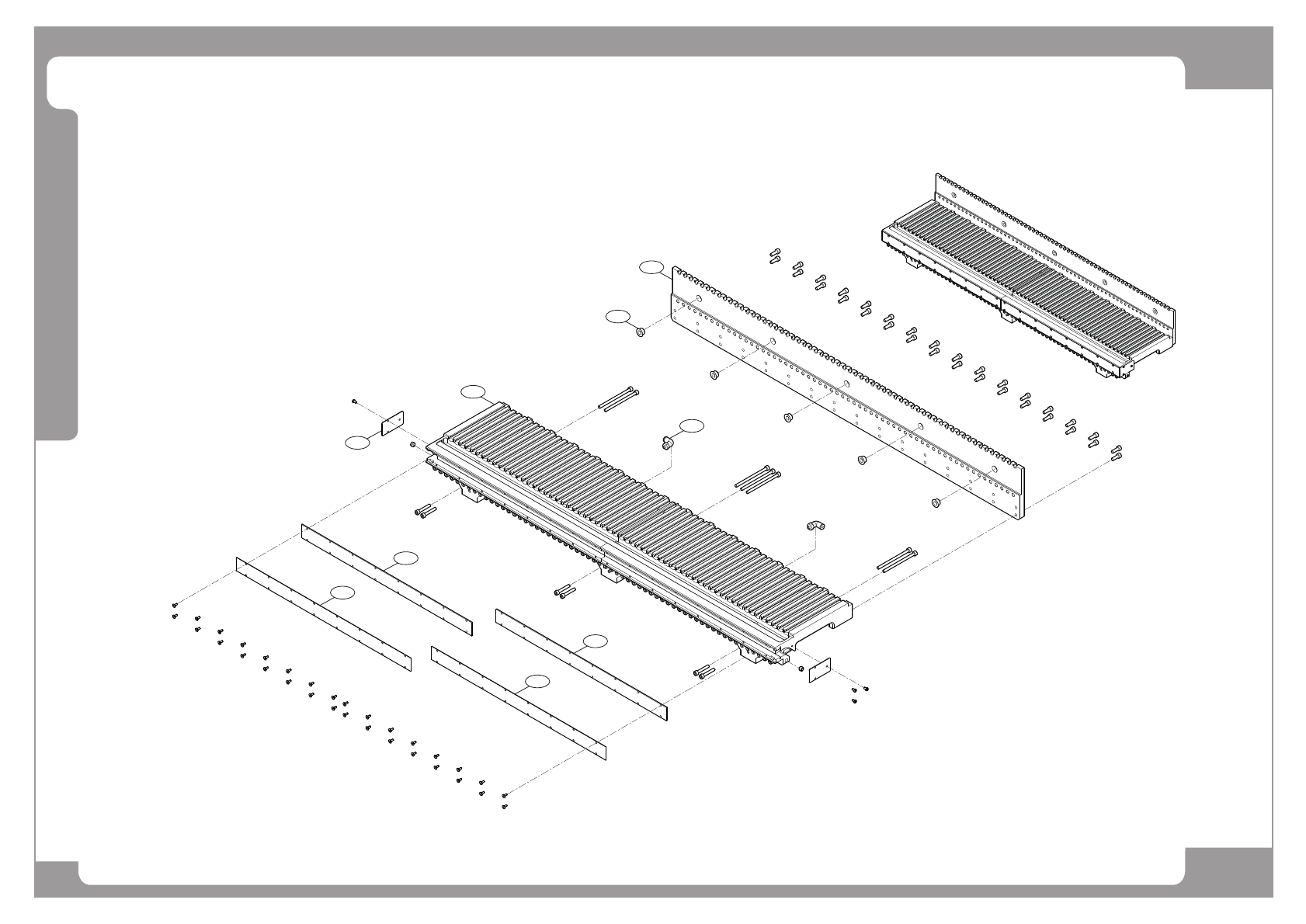

Feeder Base Ass'y - ST
5
6
7
8
9
3
4
2
1
Page
SAMSUNG TECHWIN
5
SM168
Feeder Base Ass'y - ST
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC07-000033B VERTICAL_PLATE 1
2 J70570262C M_90_CAP_TOP_PLATE 5
3 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2
4 FC05-000122A FEEDER_BASE_BODY 1
5 J7057213A SIDE CABLE COVER-FB[J7057213A] 2
6 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
7 AM03-000694A F_BASE_LEFT_BOARD 1
8 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1
9 AM03-000693A F_BASE_RIGHT_BOARD 1
Page
SAMSUNG TECHWIN
6
SM168

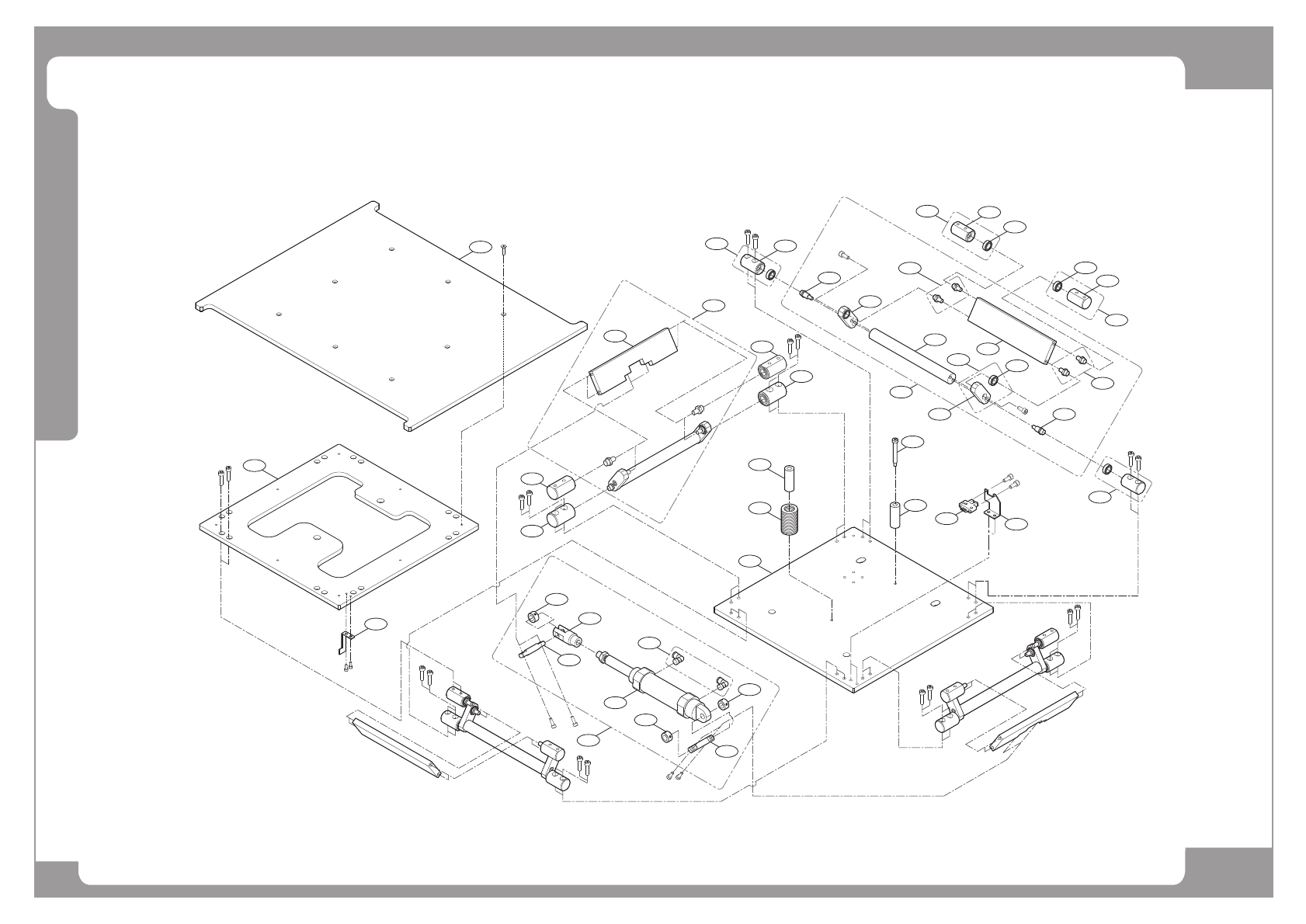

Backup Table Ass’y
9
27
24
1
26
24
22
19
18
19
22
19
22
19
22
7
6
25
12
11
21
14
13
14
5
20
3
16
17
13
14
15
6
4
10
8
3
2
23
8
8
23
2
28
29
