Page SAMSUNG TECHWIN 158 SM168 Vision IF B/D(2/2) 1 2 3 4
Page
SAMSUNG TECHWIN
157
SM168
Vision IF B/D(1/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005545A CABLE ASSY-HEAD2 FIDUCIAL CAMERA1 1 SM471_VIS003-1
2 J90831375B FLAT_FIDUCIAL_CAM_CABLE_ASSY 1 SM41_VIS005
3 AM03-006968A CABLE ASSY-FIX1-2_CAMERA 1 SM48_VIS002
4 AM03-005556A CABLE ASSY-VISION IF BD POWER 1 SM471_VIS000
5 AM03-006985A CABLE ASSY-NEXTEYE B/D I/F_MAGA 1 SM48_VIS012-1
Page
SAMSUNG TECHWIN
158
SM168
Vision IF B/D(2/2)
1 2
3 4
Page
SAMSUNG TECHWIN
159
SM168

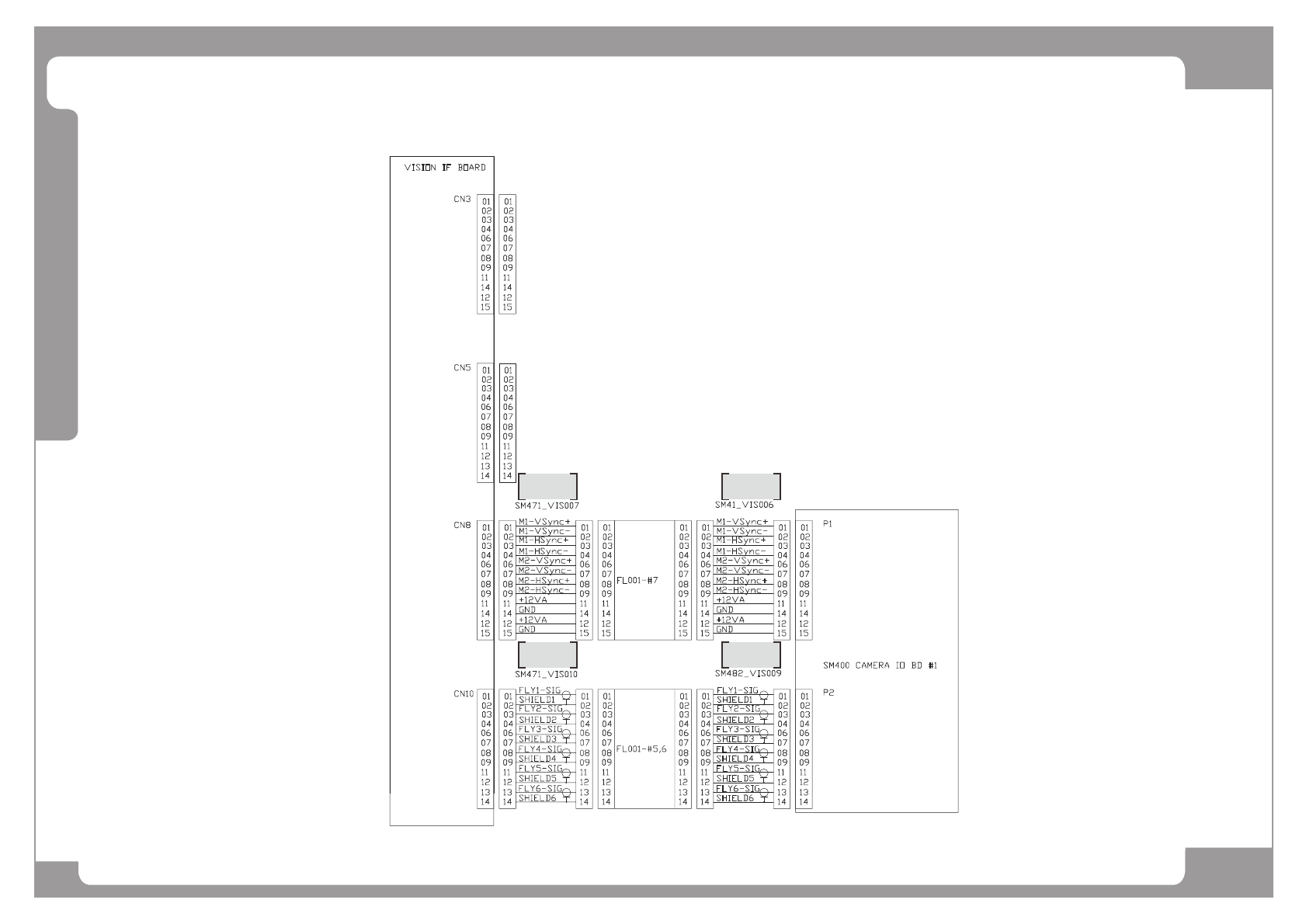

Vision IF B/D(2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005549B CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471_VIS007
2 J90831376B FLY_CAM_PW_SYNC_EXT_CABLE_ASSY 1 SM41_VIS006
3 AM03-005552A CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471_VIS010
4 AM03-006925A CABLE ASSY-FLY CAM SIG EXT 1 SM482_VIS009
