Page SAMSUNG TECHWIN 17 SM168 Cover Ass’y (2/3) NO. L ev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference A 1 J70521075 D GAS_SPRING_BRA CKET1 4 2 FC38-0000 79 GAS_SPRING_K S2-300-PS1-03 2 8 B 3 J3409…
Page
SAMSUNG TECHWIN
16
SM168

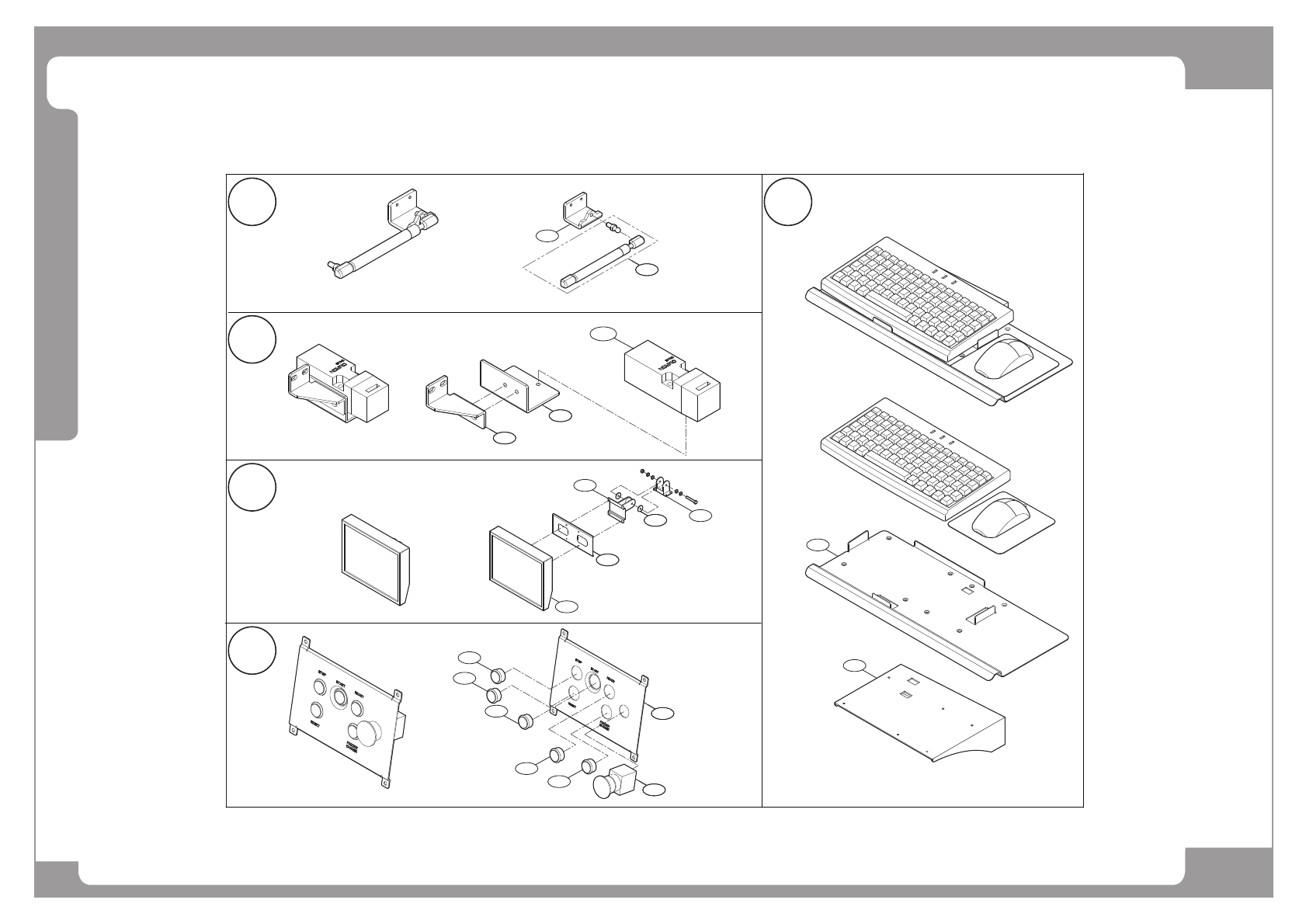

Cover Ass’y (2/3)
8
10
4
5
6
9
3
1
7
2
11
14
12
13
15
16
17
18
19
A
B
C
D
E
Page
SAMSUNG TECHWIN
17
SM168
Cover Ass’y (2/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A
1 J70521075D GAS_SPRING_BRACKET1 4
2 FC38-000079 GAS_SPRING_KS2-300-PS1-032 8
B
3 J34091002A DOOR_SWITCH 2
4 FC09-001727A DOOR_SENSOR_BKT3 2
5 FC09-001726A DOOR_SWITCH_BKT3 2
C
6 FC15-000998A HINGE_PLT 2
7 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 1
8 FC15-000505B COVER-MONITOR_GUIDE_PL;SPCC,WHITE 2 FC30-000844A
9 J7252061A PAD_BRACKET 4
10 FC15-000997A LCD_BKT 2
D
11 J6739088A SWITCH_1B_LED_RED 2
12 J6739089A SWITCH_1B_LED_YELLOW 2
13 J6739090A SWITCH_1B_LED_GREEN 2
14 J3403047A SWITCH_2B_LED_WHITE 2
15 J6739087A SWITCH_1B_LED_WHITE 2
16 J3403082A EMS SW 2
17 FC30-001473A PLATE-FRONT_OP_PANEL_SM168 1
E
18 FC15-001005A KEYBOARD_BASE 1
19 FC15-000957A KEYBOARD_BASE_BKT 2 FC15-000957A
Page
SAMSUNG TECHWIN
18
SM168

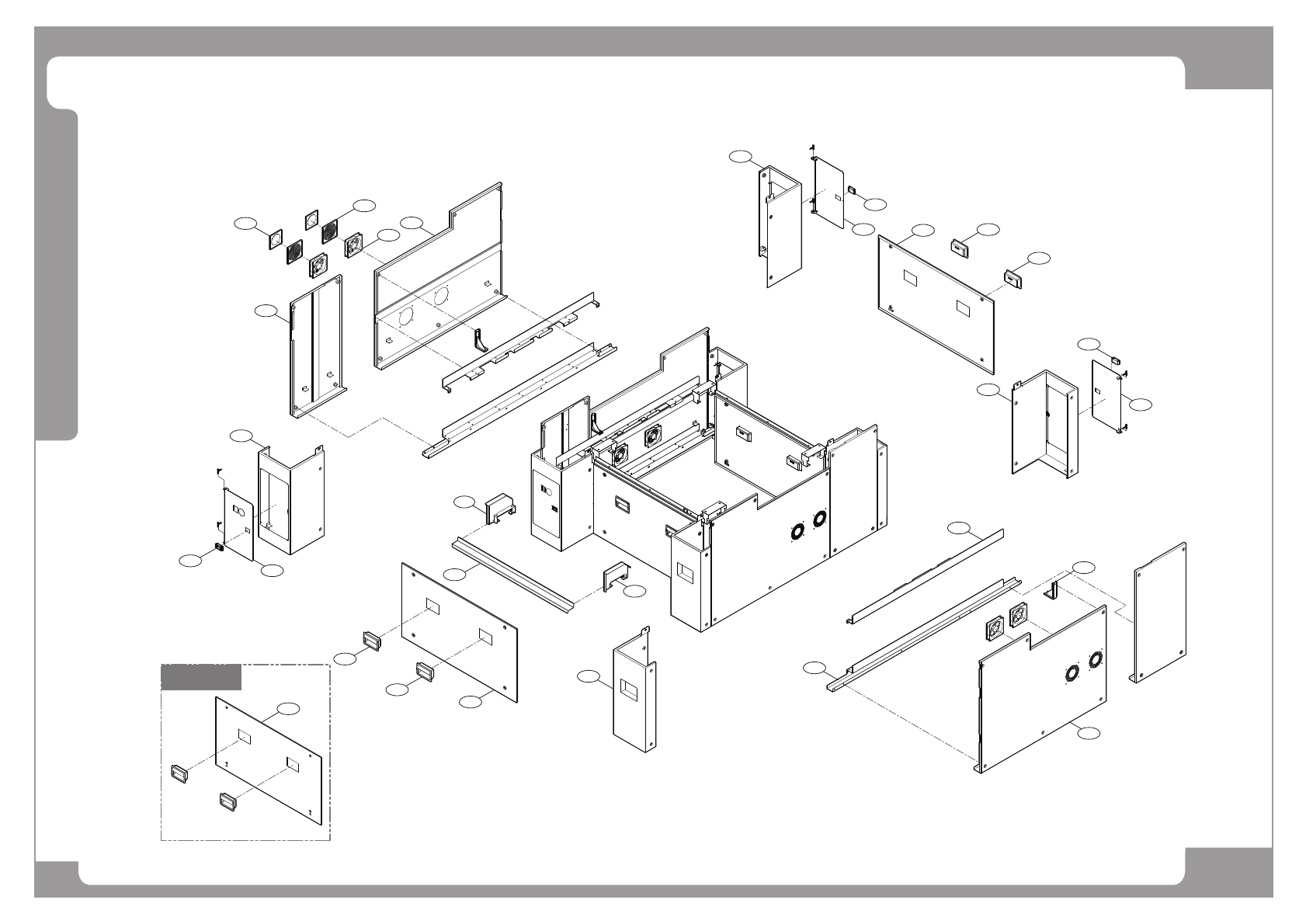

Cover Ass’y (3/3)
6
15
14
22
20
19
21
7
4
23
18
5
13
17
3
16
2
1
9
10
11
9
8
8
8
12
24
8
Option
28
