Page SAMSUNG TECHWIN 24 SM168 X-Y Frame Ass'y(1/4) 1 7 10 11 13 14 4 8 9 12 2 3 5 6

Page

SAMSUNG TECHWIN

23

SM168

Base Frame Ass’y

NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference

1 FC15-000983A COVER BOTTOM FR 2

2 FC15-000985A COVER BOTTOM RR 1

3 FC15-000986A COVER BOTTOM RL 1

4 J7051010D HOUSING-FOOT 4

5 J2100018 NUT-FOOT 4

6 J70511014A BOLT_FOOT 4

7 J7051008C BASE-FOOT 4

8 J7351001A CUSHION FOOT 4

Page

SAMSUNG TECHWIN

24

SM168

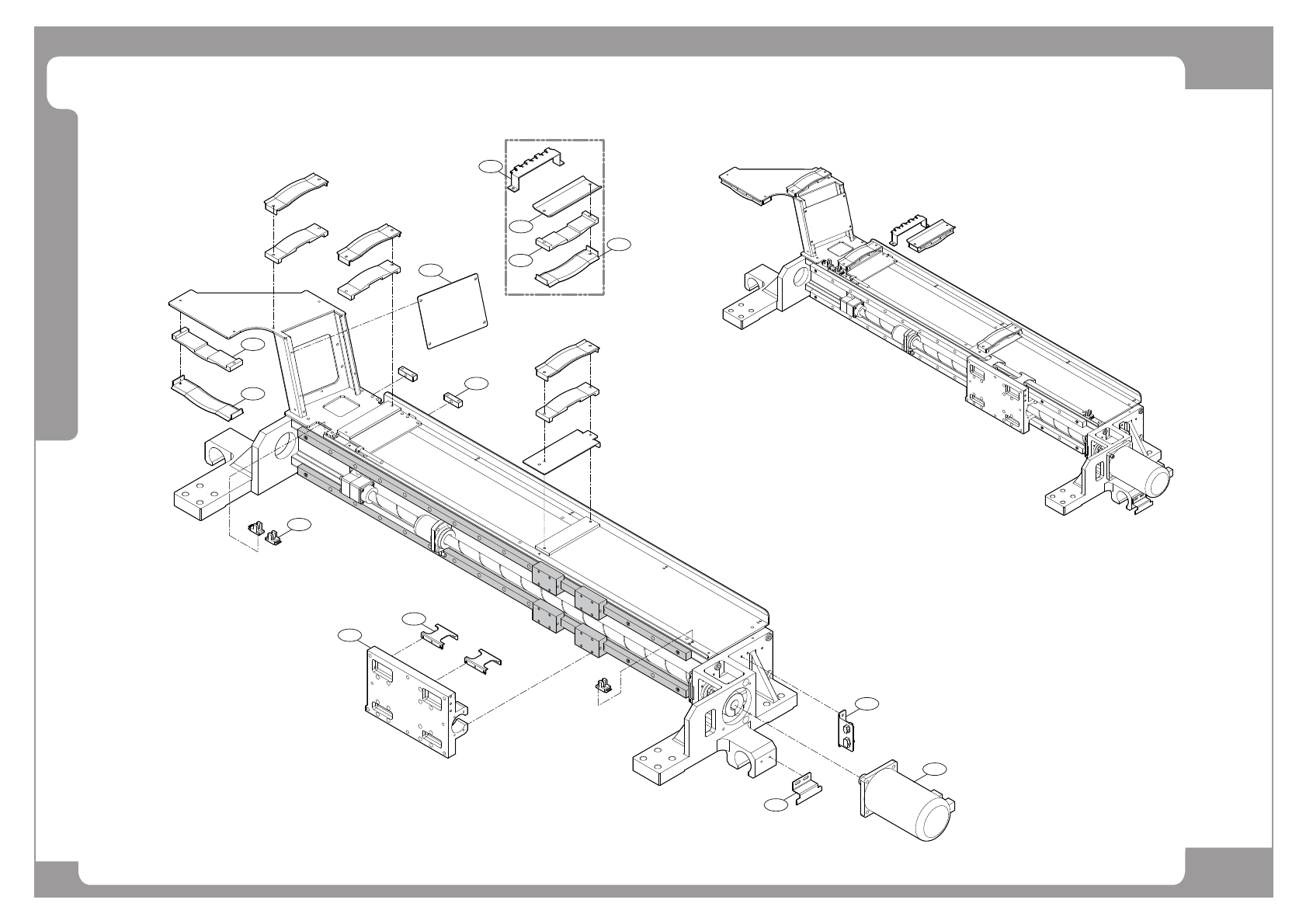

X-Y Frame Ass'y(1/4)

1

7

10

11

13

14

4

8

9

12

2

3

5

6

Page

SAMSUNG TECHWIN

25

SM168

X-Y Frame Ass'y(1/4)

NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference

1 J70541124A CABLE_SPACER 1

2 J7054260A CABLE_FIXER 1

3 J7354023A CABLE_CUSHION_X 3

4 J7054255A CUSHION_BRACKET_X 3

5 J7354024A CABLE CUSHION Y 1

6 J7054256A CUSHION BRACKET Y 1

7 J70541116A COVER_Y_CABLE_DUCT_BRK 1

8 FC30-000540A K_DUCT_SPACER 2

9 J3212022 LIMIT SENSOR 3

10 J7154268A HEAD BASE 1

11 J70541038A SENSOR DOG-X 2

12 J70541129B SENSOR DOG-Y 1

13 J70541126A CONNECTOR BKT 1

14 J31081055A SERVO_MOTOR 1
