Page SAMSUNG TECHWIN 32 SM168 ANC Ass'y 5 6 1 2 9 7 10 8 3 4 11 12 14 13 15 16 17
Page
SAMSUNG TECHWIN
31
SM168
X-Y Frame Ass'y(4/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70541115A COVER BKT 2
2 FC09-000980B Y CABLE DUCT BRK 2
3 FC09-001880A BRACKET-SM421_Y_CABLE_DUCT 1
4 J7354024A CABLE CUSHION Y 1
5 J7054256A CUSHION BRACKET Y 1
6 FC09-000671A MT-411P-XY001A-CON_PANEL-Y 1
7 HP09-000148 MANIFOLD_AIR_KM11 1
8 FC15-001496A COVER-Z_AMP_482 1
9 J1300191 SEMUS NABE SCREW 6
10 AM03-005372A ASSY,ELECTRIC-HEAD_Z_MOTOR_DRIVER_ASSY 3
11 AM03-006409A SM471_PW02_CABLE_ASSY 1
12 FC09-002205B BRACKET-Z_MOTOR_DRIVER_82 1
Page
SAMSUNG TECHWIN
32
SM168
ANC Ass'y
5
6
1
2
9
7
10
8
3
4
11
12
14
13
15
16
17
Page

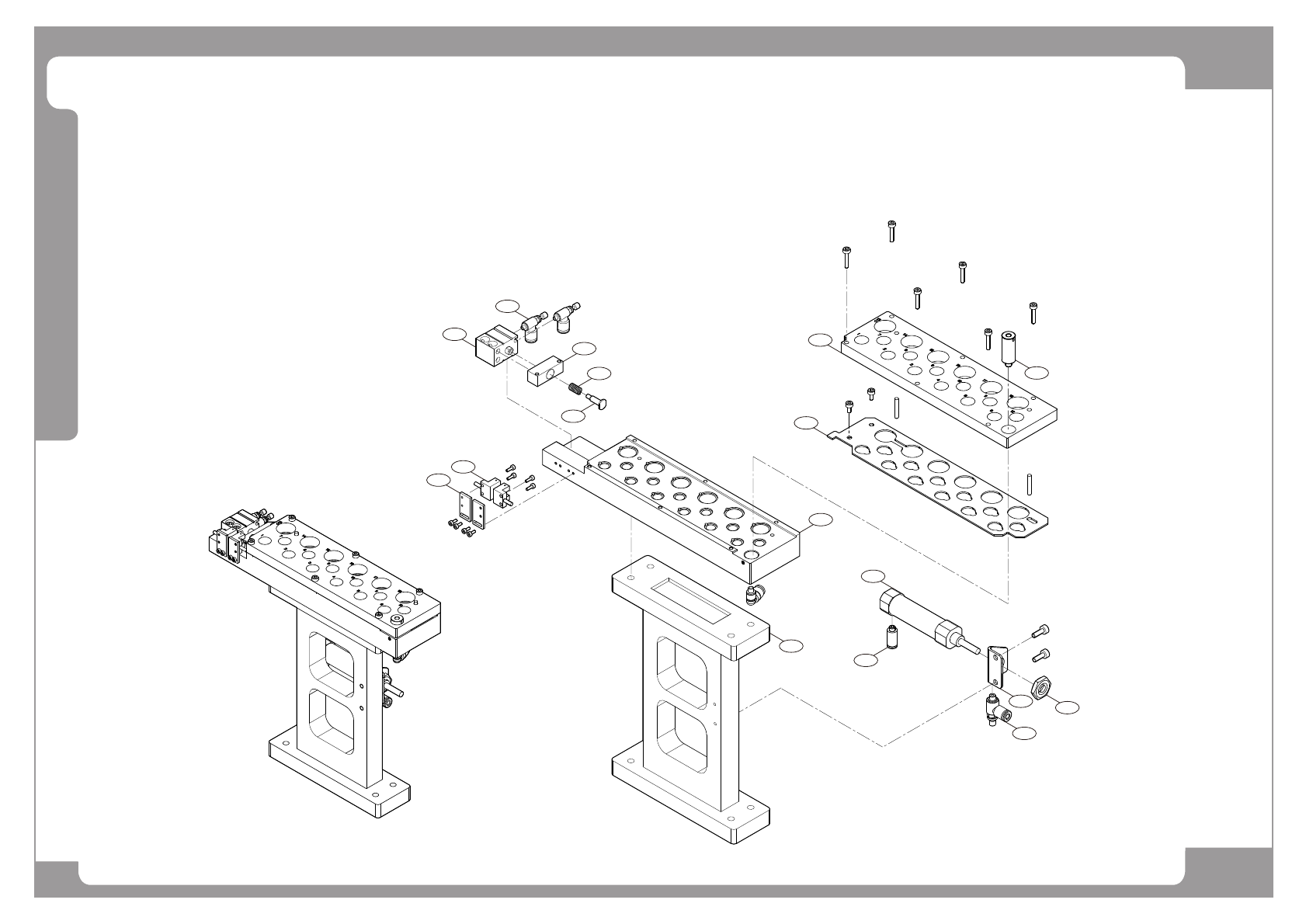

SAMSUNG TECHWIN
33
SM168
ANC Ass'y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-001768A COVER 1
2 FC15-001769A SHUTTER 1
3 FC05-000307A TOOL BASE 1
4 FC30-001496A ANC_PLATE 1
5 J6703029A SPEED_CONTOL_VALVE 2
6 HP03-000083 CYLINDER 1
7 FC05-000306A SHUTTER_SPT 1
8 FC05-000215A ANC_BASE 1
9 FC38-000093A SPRING 1
10 FC18-000894A SPACE_PIN 1
11 J3212027A SENSOR 2
12 FC30-001554A SNS_PLATE 2
13 J70561001A CYLINDER_BRACKET 1
14 HP06-000074 STRAIGHT FITTING 1
15 J67011016B AIR_CYLINDER 1
16 J6703031A SPEED CONTROLLER 1
17 J67011016B HEX NUT 1
