User Manual SIPLACE CF 3 Technical data

Software version SR.101.xx 06/2003 US Edition 3.11 Nozzle changer for the 6-segment Collect&Place head

105

3.11.6 Changing the magazine

Æ To remove the magazine, push the spring hook (item 1 in Fig. 3.11 - 4) away from the maga-

zine. Lift the magazine out of the carrier.

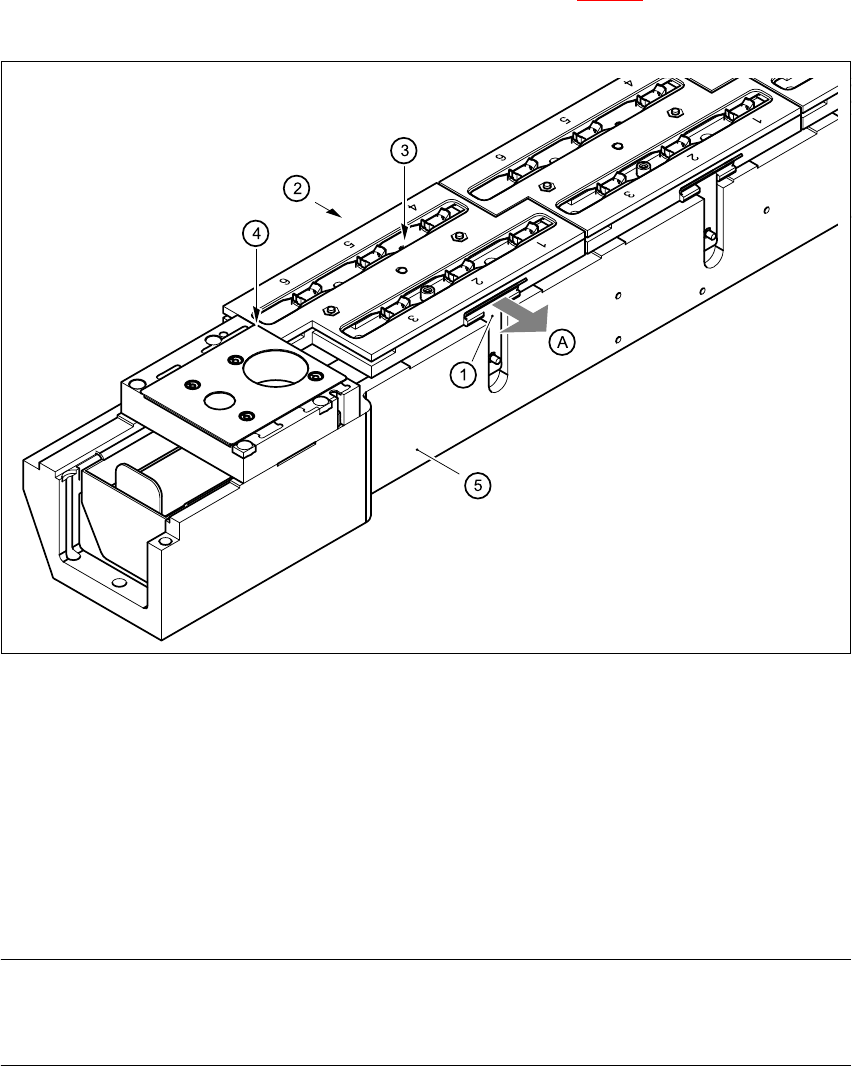

Fig. 3.11 - 4 Changing the magazine

(1) Spring hook

(2) Retaining clamp

(3) Centering hole

(4) Slot

(5) Carrier

(A) Push the spring hook away from the magazine

NOTE 3

Make sure that you insert the magazine so that the centering pins slide into the centering hole

(item 3) and slot (item 4). 3

Æ First place the side of the magazine with the centering hole (item 3) and the slot (item 4) on

the base (5). The two knobs on the magazine must slide into the retaining clamp (item 2).

Æ Push the spring hook (item 1) away from the magazine.

3 Technical data User Manual SIPLACE CF

3.11 Nozzle changer for the 6-segment Collect&Place head Software version SR.101.xx 06/2003 US Edition

106

Æ Press the magazine so that it lies flat on the base, then release the spring hook. The spring

hook must latch into place.

3.11.7 Position detection

There is a position detection fiducial on every magazine.

Fig. 3.11 - 5 Nozzle changer - position detection

(1) Positioning fiducial

(2) Position of the nozzles in the magazine with respect to the positioning fiducial

User Manual SIPLACE CF 3 Technical data

Software version SR.101.xx 06/2003 US Edition 3.12 PCB conveyor

107

3.12 PCB conveyor

3.12.1 Structure of the PCB conveyor

The placement machine is supplied with a PCB conveyor. The left or the right side of the PCB

conveyor can be used as the stationary side, as required.

Fig. 3.12 - 1 PCB conveyor

(1) input conveyor

(2) center conveyor

(3) output conveyor

(4) lifting table

(5) width adjustment

(T) Direction of PCB transport
