User Manual SIPLAC E CF 3 Technical data Software version SR.101.xx 06/2003 US Edition 3.12 PCB conveyor 107 3.12 PCB conve yor 3.12.1 Structure of the PCB conveyor The pla cement ma chine is suppli ed with a P CB conve …
3 Technical data User Manual SIPLACE CF
3.11 Nozzle changer for the 6-segment Collect&Place head Software version SR.101.xx 06/2003 US Edition
106
Æ Press the magazine so that it lies flat on the base, then release the spring hook. The spring
hook must latch into place.
3.11.7 Position detection
There is a position detection fiducial on every magazine.
Fig. 3.11 - 5 Nozzle changer - position detection
3
(1) Positioning fiducial
(2) Position of the nozzles in the magazine with respect to the positioning fiducial
User Manual SIPLACE CF 3 Technical data
Software version SR.101.xx 06/2003 US Edition 3.12 PCB conveyor
107
3.12 PCB conveyor
3.12.1 Structure of the PCB conveyor
The placement machine is supplied with a PCB conveyor. The left or the right side of the PCB
conveyor can be used as the stationary side, as required.
3

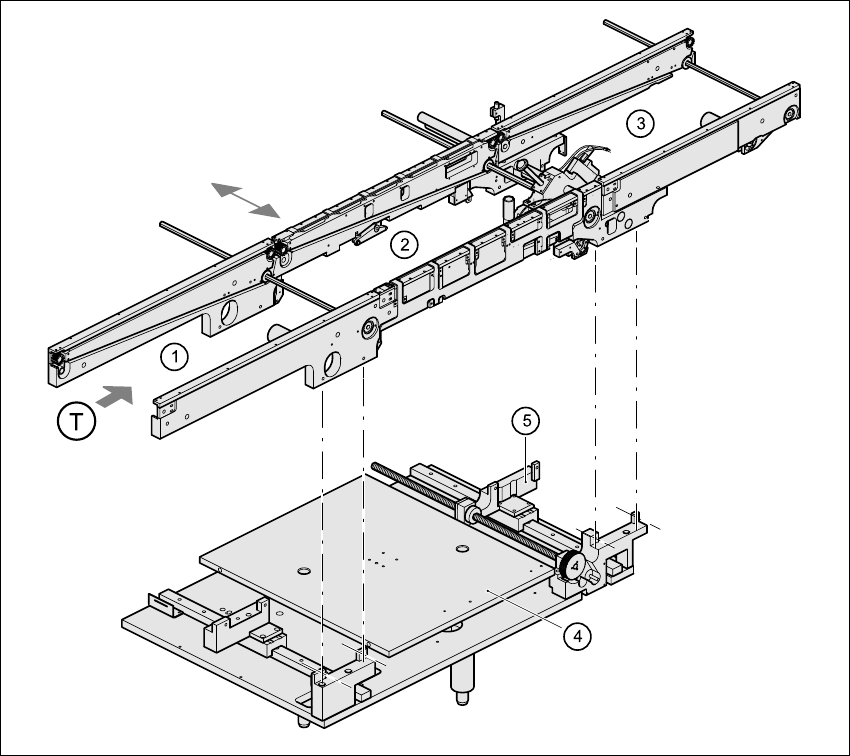

Fig. 3.12 - 1 PCB conveyor
3
(1) input conveyor
(2) center conveyor
(3) output conveyor
(4) lifting table
(5) width adjustment
(T) Direction of PCB transport
3 Technical data User Manual SIPLACE CF
3.12 PCB conveyor Software version SR.101.xx 06/2003 US Edition
108
3.12.2 Technical data
3
PCB format
(length x width)
50 mm x 50 mm to 508 mm x 460 mm
(2" x 2" to 20" x 18")
Long board: length up to 610 mm (24") (available upon
request)
PCB thickness 0.5 mm to 4.5 mm
Max. PCB warpage Up: 4.5 mm - PCB thickness
On bottom: 0.5 mm + PCB thickness
Clearance on PCB underside 25 mm (standard), 40 mm (option)
PCB transport height 830 mm ± 15 mm (standard)
900 mm ± 15 mm (optional)
930 mm ± 15 mm (optional)
950 mm ± 15 mm (SMEMA: optional)
Fixed conveyor side Right (standard), left (optional)
Type of interface Siemens
SMEMA
Component-free PCB handling edge 3 mm
PCB changeover time 2.5 s
Ink spot recognition Possible
Automatic width adjustment Possible
