KW1_CL8-16_M-PL_2011 - 第28页

KW1-M1 14S-000 KW1-M1 140-010 KW1-M1 14A-000 No. Part No. Part Name Q'ty Remarks KW1-M1 140-010 T APE GUIDE UNIT 1 KW1-M1 14S-000 T APE GUIDE ASSY 1 KW1-M1 14A-000 HAND LEVER ASSY 1 1 KW1-M1 177-000 MAIN ARM 1 2 3 K…

100%1 / 88

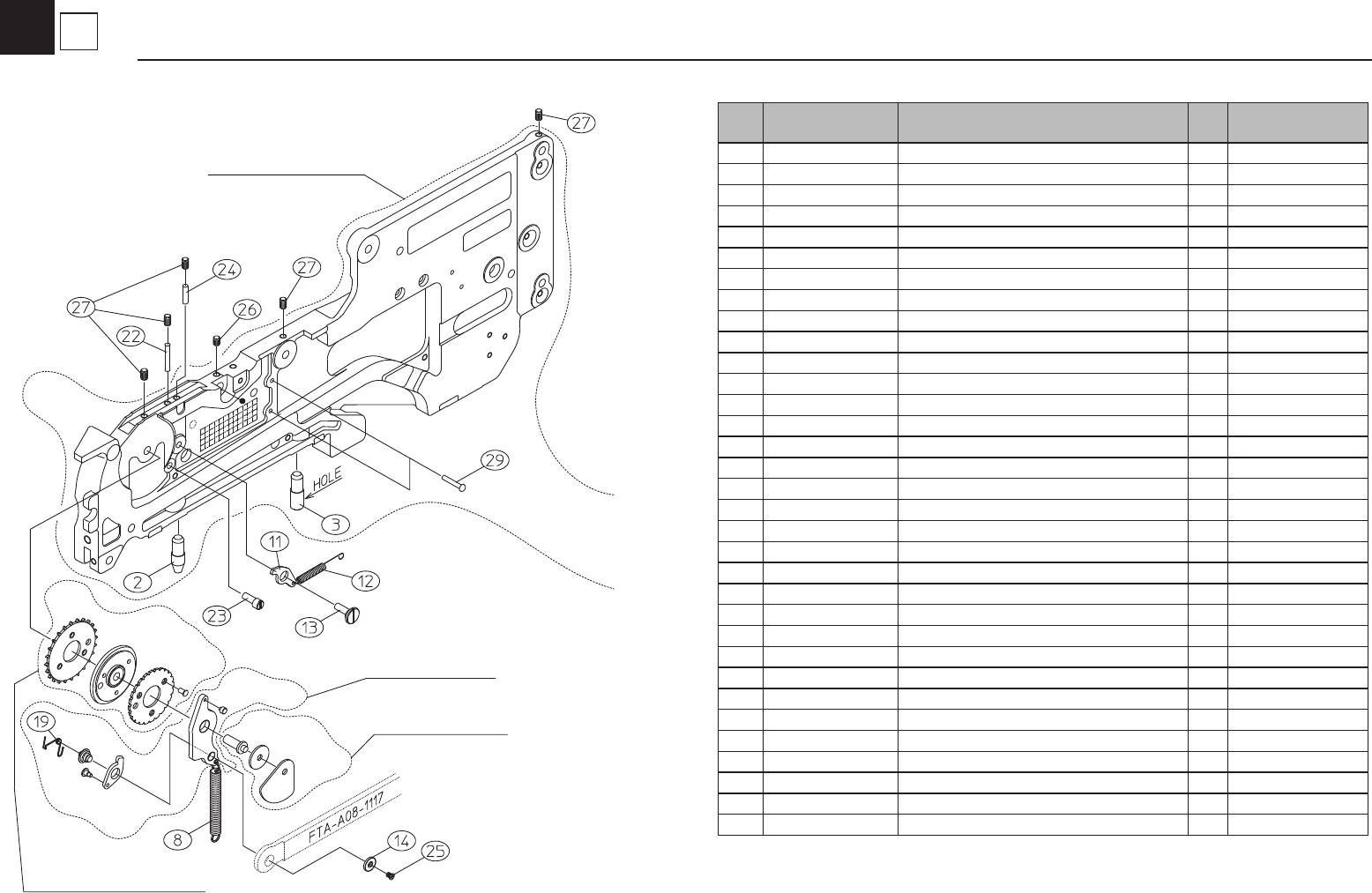

KW1-M1110-011
Continued on
Page 5-4,5-5
KW1-M112A-000
K87-M112L-100
KW1-M1120-000
No. Part No. Part Name Q'ty Remarks
KW1-M1110-011 Body Assy 1
K87-M112L-100 Sprocket Axis Assy 1
KW1-M112A-000 Racking Lever Assy 1
KW1-M1120-000 Sprocket Assy 1
1
2 KW1-M1112-000 Knock Pin (Front) 1 *Attention
3 KW1-M1113-000 Knock Pin (Rear) 1 *Attention
4
5
6
7
8 KW1-M111E-001 Spring 1
9
10
11 K87-M111H-200 Back Stopper 1
12 KW1-M111A-000 Spring 1
13 K87-M111B-000 Back Stopper Axis 1
14 K87-M111C-000 Plane Washer 1
15
16
17
18
19 K87-M112D-100 Coil Spring 1
20
21
22 K87-M111D-000 Push Pin 1
23 K87-M111F-100 Stopper Pin 1
24 K87-M111G-100 Push Pin 1
25 K87-M111P-000 Screw,Flat Head+ 1
26 K87-M111X-000 Screw,Set 1
27 K87-M111R-000 Screw,Set 5
28
29
K87-M1115-000 Circular Rivet
2
*Attention
KW1-0911
5
1
BODY & RACHET Unit CLA-84
CL-84(D type) 8mm-4P(STD
＆
EMBOSS)
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
KW1-M114S-000
KW1-M1140-010
KW1-M114A-000
No. Part No. Part Name Q'ty Remarks
KW1-M1140-010 TAPE GUIDE UNIT 1
KW1-M114S-000 TAPE GUIDE ASSY 1
KW1-M114A-000 HAND LEVER ASSY 1
1 KW1-M1177-000 MAIN ARM 1
2
3 KW1-M1143-010 SHUTTER PLATE 1 *Attention
4
KW1-M1144-010
SHUTTER GUIDE PIN 2
*Attention
5 KW1-M114N-000
GUIDE AXIS
1
6
KW1-M116K-000 LEVER AXIS
1
7
8
9
10
11 K87-M111C-000 PLANE WASHER 2
12 K87-M1181-000 ROD CONNECT 1
13
14
15 K87-M1184-000
CONNECT PIN 1
16 KW1-M1185-001
MULTI CYLINDER
1
17
KW1-M111L-001 BARB CONNECTOR STRAIGHT
2
18 K87-M111M-000 GASKET 2
19 KW1-M11B1-000 AIR HOSE (70mm) 1
20 K87-M111P-000 SCREW,FLAT HEAD+ 2 *Attention
21 K87-M11BF-000 SCREW,FLAT HEAD+ 2
22 KW1-M11B6-000 S.W.
付
SCREW,CAPBOLT HEAD 2
23 K87-M11B9-000 CIRCLIP E 1
KW1-1107
5
2
TAPE GUIDE & AIR CYLINDER Assy
CLA-84
CL-84(Dtype) / CLI-84(Atype) 8mm-STD
*Attention: This parts need thread locker and training.
*Attention:
接着部品のため修理依頼を推奨します。

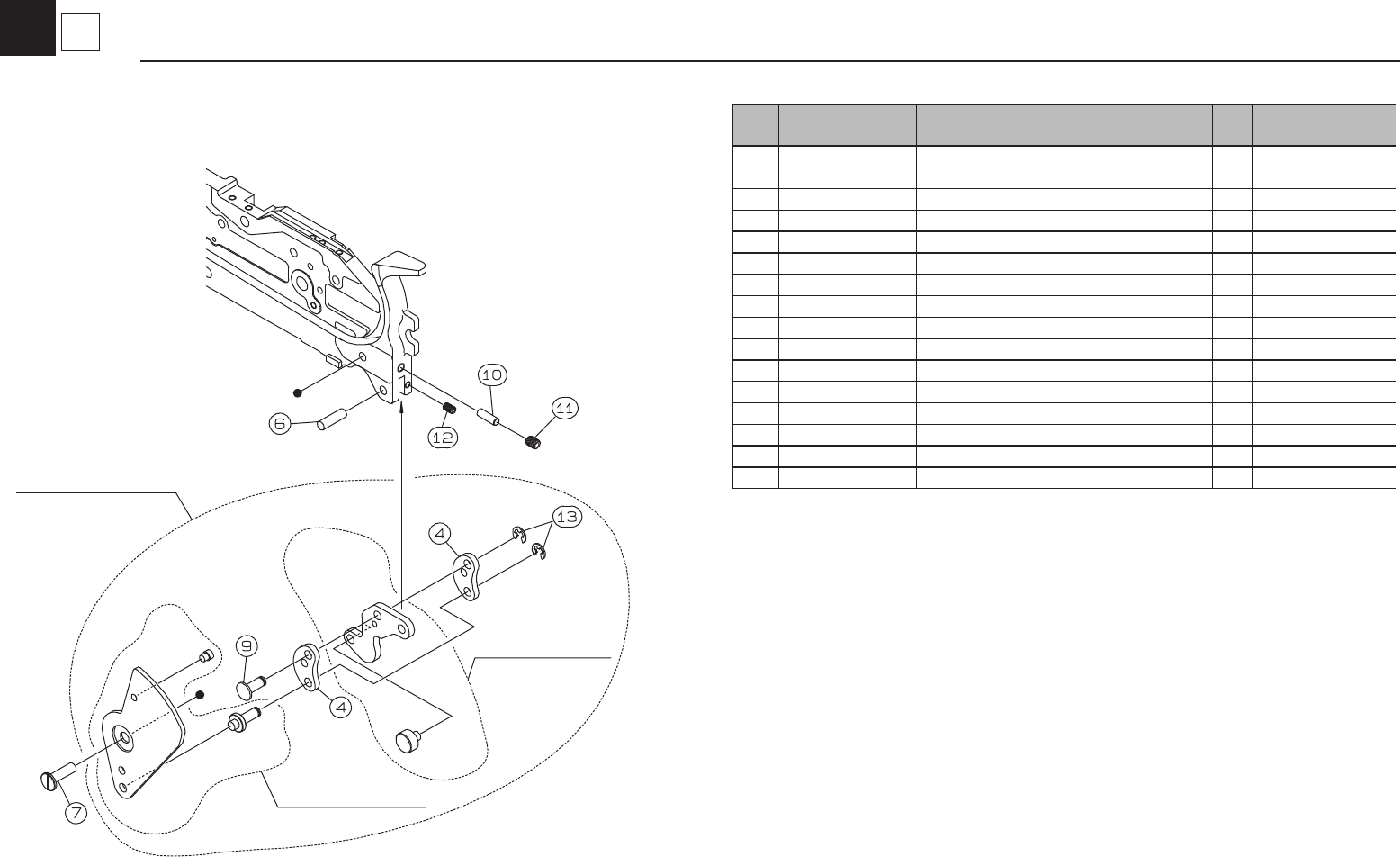

KW1-M1131-102
KW1-M1132-001
KW1-M113A-000
No. Part No. Part Name Q'ty Remarks
KW1-M1131-102 CLAMP LEVER UNIT 1
KW1-M1132-001 CLAMP LEVER ASSY 1
KW1-M113A-000 CLANK ARM ASSY 1
1
2
3
4 K87-M113D-001 ARM 2
5
6 K87-M113M-000 AXIS PIN 1
7 K87-M113L-100 CLAMP LEVER AXIS 1
8
9 K87-M113E-000 HINGE PIN 2 1
10 K87-M113H-000 PUSH PIN (L=10) 1
11 K87-M111V-000 SCREW,SET 1
12 K87-M111R-000 SCREW,SET 1
13 K87-M11D7-000 CIRCLIP E 2
KW1-0911
5
3
TOGGLE CLAMP Assy CLA-84
CL-84 ~ 82E (D type) / CLI-84 ~ 82E(A type) 8mm
