KW1_CL8-16_M-PL_2011 - 第46页

KW1-M1540-010 KW1-M1 14A-000 KW1-M154S-000 No. Part No. Part Name Q'ty Remarks KW1-M1540-010 T APE GUIDE UNIT 1 KW1-M154S-000 T APE GUIDE ASSY 1 KW1-M1 14A-000 HAND LEVER ASSY 1 1 KW1-M1 177-000 MAIN ARM 1 2 3 KW1-M…

100%1 / 88
KW1-M1510-000
Continued on
Page 8-4,8-5
KW1-M112A-000
K87-M112L-100
KW1-M1320-000
No. Part No. Part Name Q'ty Remarks Change Compati.
KW1-M1510-000 Body Assy
1
K87-M112L-100 Sprocket Axis Assy
1
KW1-M112A-000 Racking Lever Assy
1
KW1-M1320-000 Sprocket Assy
1
1
2
KW1-M1112-000 Knock Pin (Front)
1
*Attention
3
KW1-M1113-000 Knock Pin (Rear)
1
*Attention
4
5
6
7
8
KW1-M131E-000 Spring
1
9
10
11
K87-M111H-200 Back Stopper
1
12
KW1-M111A-000 Spring
1
13
K87-M111B-000 Back Stopper Axis
1
14
K87-M111C-000 Plane Washer
1
15
16
17
18
19
K87-M112D-100 Coil Spring
1
20
21
22
K87-M111D-000 Push Pin
1
23
K87-M111F-100 Stopper Pin
1
24
K87-M111G-100 Push Pin
1
25
K87-M111P-000 Screw,Flat Head+
1
26
K87-M111X-000 Screw,Set
1
27
K87-M111R-000 Screw,Set
5
28
29
KW1-M154V-000 Plate
1
30
K87-M11BA-000 Screw,Flat Head +
1
31
K87-M1115-000 Circular Rivet
2
*Attention
KW1-1107
8
1
BODY & RACHET Unit CLY-823
CL-823(D type) 8mm-2P(0603)
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
KW1-M1540-010
KW1-M114A-000
KW1-M154S-000
No. Part No. Part Name Q'ty Remarks
KW1-M1540-010 TAPE GUIDE UNIT 1
KW1-M154S-000 TAPE GUIDE ASSY 1
KW1-M114A-000 HAND LEVER ASSY 1
1 KW1-M1177-000 MAIN ARM 1
2
3 KW1-M1543-010 SHUTTER PLATE 1 *Attention
4
KW1-M1144-010 SHUTTER GUIDE PIN
2 *Attention
5 KW1-M114N-000
GUIDE AXIS
1
6 KW1-M1345-010
LEAF SPRING 1
7 KW1-M134T-001 LEAF SPRING 1
8
9 KW1-M116K-000 LEVER AXIS 1
10
11
12
13
14 K87-M111C-000 PLANE WASHER 2
15
K87-M1181-000 ROD CONNECT
1
16
K87-M1546-000 ADJUST PLATE
1
17
18 K87-M1184-000 CONNECT PIN 1
19 KW1-M1185-001 MULTI CYLINDER 1
20 KW1-M111L-001 BARB CONNECTOR 2
21 K87-M111M-000 GASKET 2
22 KW1-M11B1-000 AIR HOSE (70mm) 1
23
24 K87-M11BF-000 SCREW,FLAT HEAD+IB 2
25 K87-M1547-000 SCREW,TRUSS HEAD 2
26 K87-M1548-000 PLANE WASHER 2
27 K87-M53BS-000 SCREW,PAN HEAD+ 1
28 KW1-M11B6-000 BOLT,SOCKET HEAD SW 2
29 K87-M11B9-000 CIRCLIP E 1
KW1-1107
8
2
TAPE GUIDE & AIR CYLINDER Assy
CLY-823
CL-823(D type) / CLI-823(A type) 8mm-0603
*Attention: This parts need thread locker and training.
*Attention:
接着部品のため修理依頼を推奨します。
KW1-M1131-102
KW1-M1132-001
KW1-M113A-000

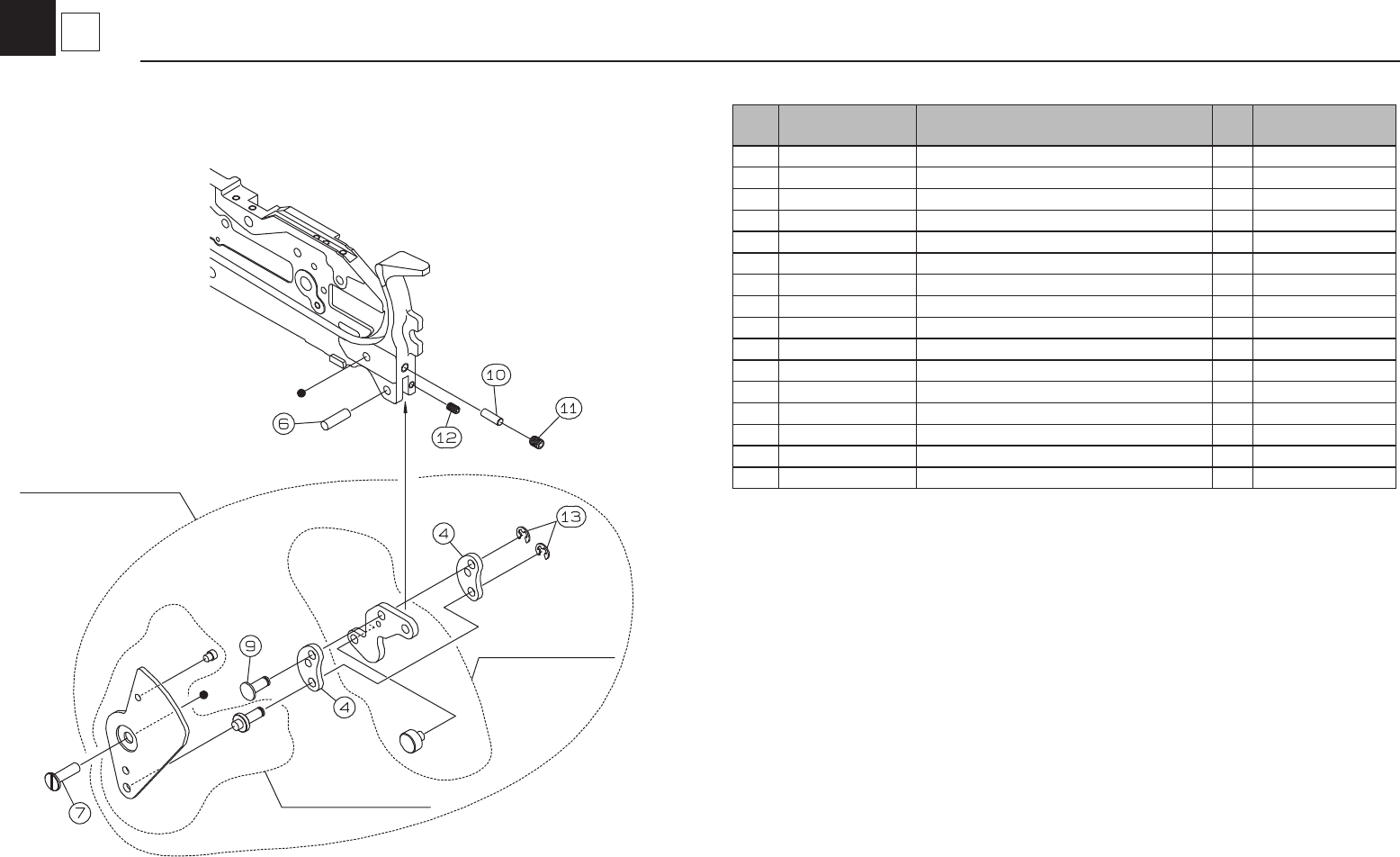

No. Part No. Part Name Q'ty Remarks
KW1-M1131-102 CLAMP LEVER UNIT 1
KW1-M1132-001 CLAMP LEVER ASSY 1
KW1-M113A-000 CLANK ARM ASSY 1
1
2
3
4 K87-M113D-001 ARM 2
5
6 K87-M113M-000 AXIS PIN 1
7 K87-M113L-100 CLAMP LEVER AXIS 1
8
9 K87-M113E-000 HINGE PIN 2 1
10 K87-M113H-000 PUSH PIN (L=10) 1
11 K87-M111V-000 SCREW,SET 1
12 K87-M111R-000 SCREW,SET 1
13 K87-M11D7-000 CIRCLIP E 2
KW1-0911
8
3
TOGGLE CLAMP Assy CLY-823
CL-84 ~ 82E (D type) / CLI-84 ~ 82E(A type) 8mm
