KW1_CL8-16_M-PL_2011 - 第48页
Continued from Page 8-1 KW1-M1 15D-000 KW1-M1 150-000 No. Part No. Part Name Q'ty Remarks KW1-M1 150-000 Handle Lever Assy 1 KW1-M1 15D-000 Guide Pin Assy 1 1 KW1-M1 14L-000 Cover 1 2 3 4 5 6 KW1-M155L-000 Hold Arm …
KW1-M1131-102
KW1-M1132-001
KW1-M113A-000
No. Part No. Part Name Q'ty Remarks
KW1-M1131-102 CLAMP LEVER UNIT 1
KW1-M1132-001 CLAMP LEVER ASSY 1
KW1-M113A-000 CLANK ARM ASSY 1
1
2
3
4 K87-M113D-001 ARM 2
5
6 K87-M113M-000 AXIS PIN 1
7 K87-M113L-100 CLAMP LEVER AXIS 1
8
9 K87-M113E-000 HINGE PIN 2 1
10 K87-M113H-000 PUSH PIN (L=10) 1
11 K87-M111V-000 SCREW,SET 1
12 K87-M111R-000 SCREW,SET 1
13 K87-M11D7-000 CIRCLIP E 2
KW1-0911
8
3

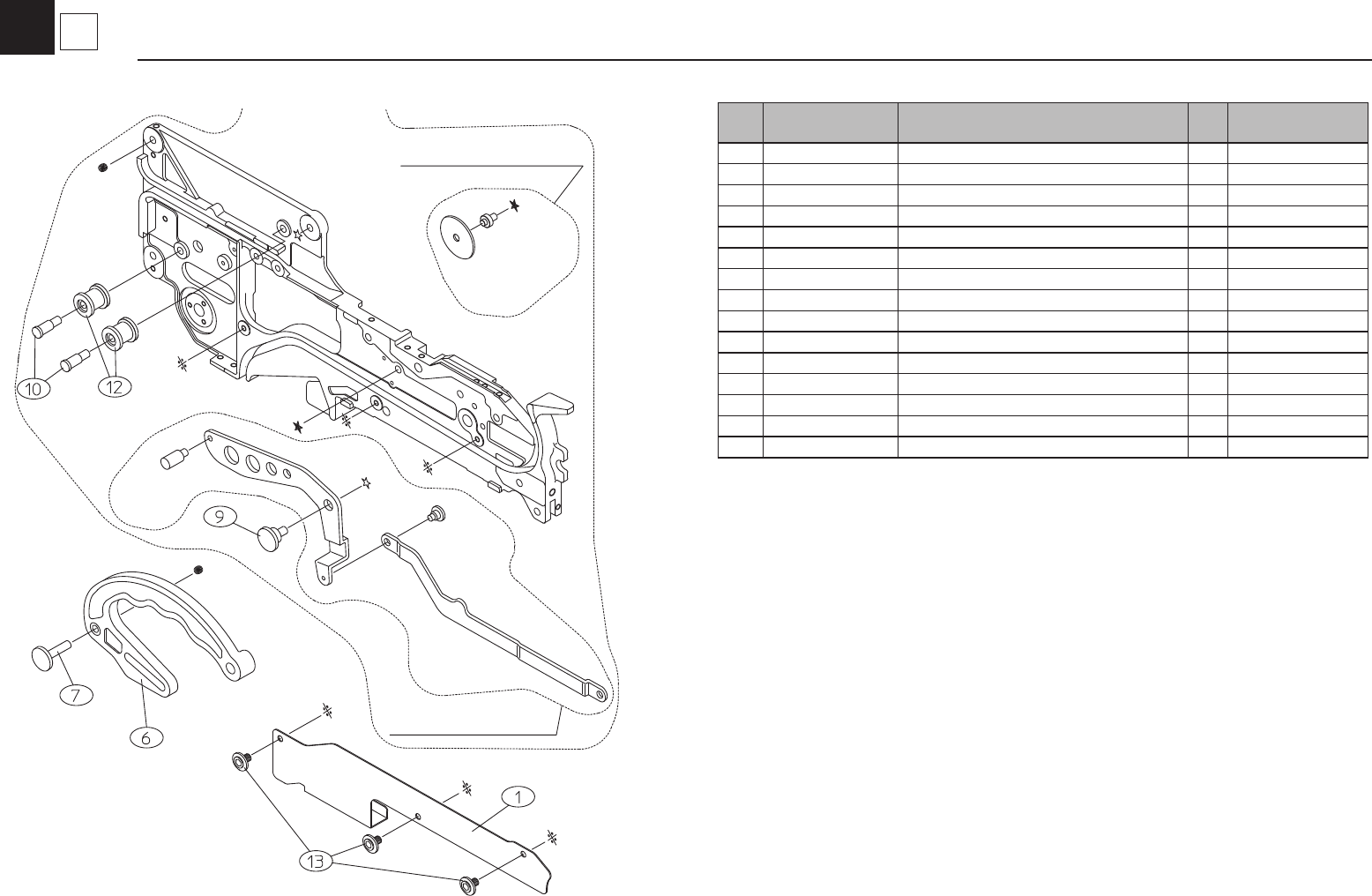

TOGGLE CLAMP Assy CLY-823
CL-84 ~ 82E (D type) / CLI-84 ~ 82E(A type) 8mm
Continued from
Page 8-1
KW1-M115D-000
KW1-M1150-000
No. Part No. Part Name Q'ty Remarks
KW1-M1150-000 Handle Lever Assy 1
KW1-M115D-000 Guide Pin Assy 1
1 KW1-M114L-000 Cover 1
2
3
4
5
6 KW1-M155L-000 Hold Arm (Green) 1
7 KW1-M115M-000 Hold Arm Axis 1
8
9 KW1-M116F-000 Lever Axis Pin 1
10 KW1-M1165-000 Roller Axis 2 *Attention
11
12 KW1-M116U-000 Roller 2 *Attention
13 KW1-M111T-000 Screw,Thin Head 3
KW1-0911
8
4
HOLD ARM & ROLLER,COVER Assy CLY-823
CL-823(A type) 8mm-0603-7inch
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
KW1-M116D-000
KW1-M119L-000
KT-A08-1170-D
KW1-M1192-100
KW1-M1191-100
Continued from
Page 8-1
LG4-M1A8D-000
No. Part No. Part Name Q'ty Remarks Change Compati.
Roller Kit
KW1-M116D-000 Tension Lever Assy
1
KW1-M119L-000 Idle Roller Assy
1
KW1-M1192-001 Indentation Lever Assy
1
Can not sell
KW1-M1192-100 Indentation Lever Assy
1
(2009/7/23) NG
KW1-M119F-000 Drive Roller Assy
1
Can not sell
LG4-M1A8D-000 Drive Roller Assy
1
(2009/7/23) NG
KW1-M1191-001 Drive Roller Unit
1
Can not sell
KW1-M1191-100 Drive Roller Unit
1
(2009/7/23) OK
KW1-M1191-A00 Drive Roller Unit 40Pes
40
(2009/7/23) OK
1
KW1-M116J-000 Metal Shaft
1
2
3
KW1-M116F-000 Lever Axis Pin
1
*Attention
4
5
KW1-M159P-000 Spring
1
6
KW1-M119R-000 Collar
1
7
8
9
10
KW1-M119K-000 Spring
1
11
12
13
14
KW1-M11A1-011 Lower Guide Plate , R
1
15
KW1-M11A3-001 Lower Guide Plate , L
1
16
K87-M117B-000 Plane Washer
1
17
18
19
K87-M11BA-000 Screw,Flat Head
3
20
K87-M11BB-000 Screw,Flat Head+IB
1
21
K87-M55BG-000 Screw,Truss Head+
1
22
K87-M111N-000 Screw,Pan Head+
2
23
K87-M53BS-000 Screw,Pan Head+
2
24
K87-M1115-000 Circular Rivet
1
*Attention
KW1-0911
8
5

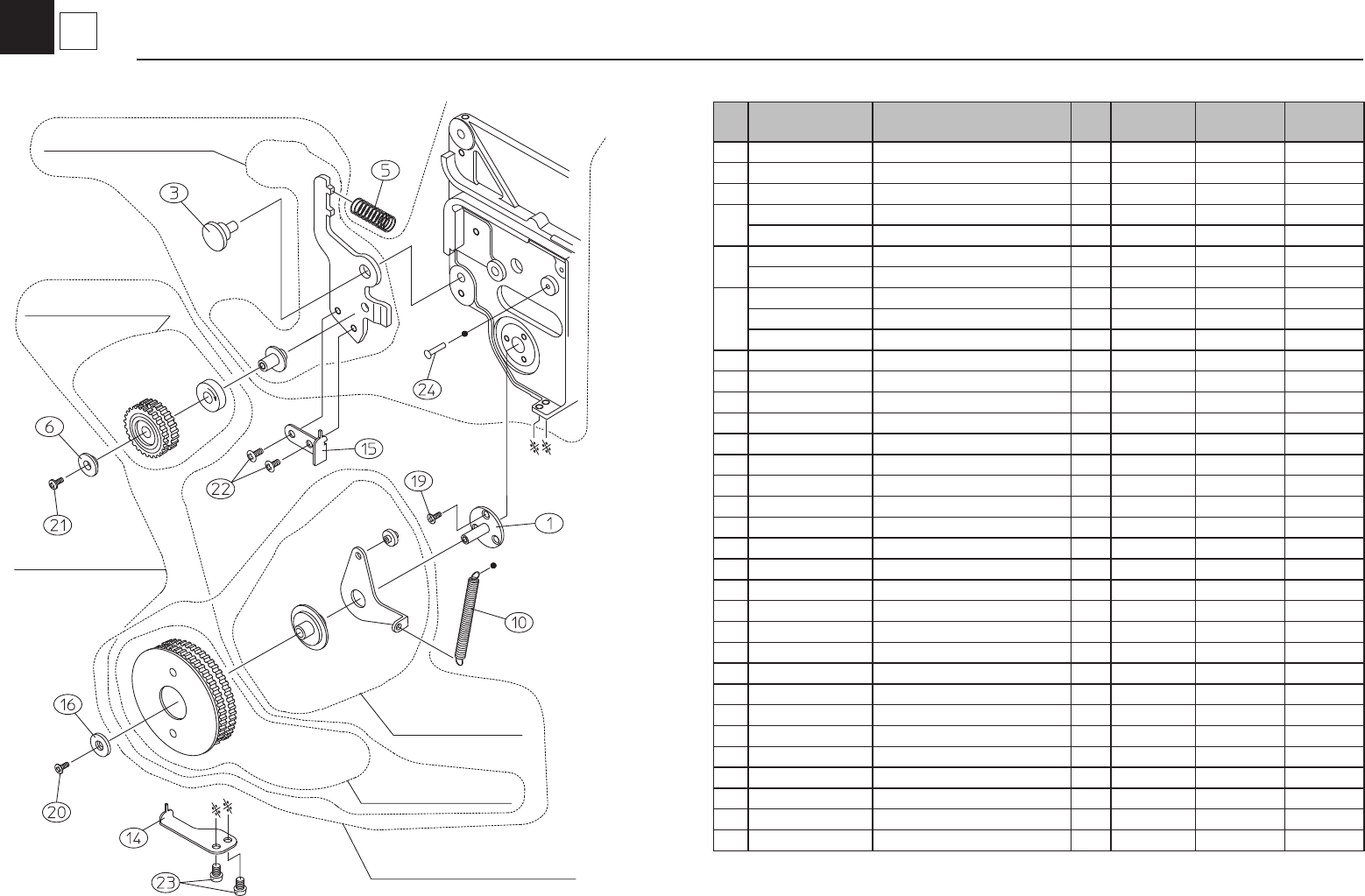

ROLL UP Unit CLY-823
CL-823(D type) 8mm-2P(0603)
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
