KW1-MAA10-000 Continued on Page 13-4,13-5 K87-M212L-100 KW1-M222A-000 KW1-M1 120-000 ( OLD : KW1-M2210-001 ) No. Part No. Part Name Q'ty Remarks Change Compati. KW1-M1 120-000 Sprocket Assy 1 KW1-M2210-001 Body Assy…

100%1 / 88
S027-M0489-20
CL-82-0402
No. Part No. Part Name Q'ty Remarks
S027-M0489-20 CL-8-7 Reel Holder Unit 1
1 1
2 1
3 1
4 1
5 KW1-M111S-000 Screw,Flat Head+ 1
6
K87-M111S-000 Screw,Flat Head+
2
7
8
S027-M0489-Y0
Serial No.Sticker(STD) 1
9 S027-M0489-Y0 Serial No.Sticker(4P_T03) 1
10 S027-M0489-Y0 Serial No.Sticker(1005) 1
11 S027-M0489-Y0 Serial No.Sticker(0603) 1
12 S027-M0489-Y0 Serial No.Sticker(2P_T03) 1
13 S027-M0489-Y0 Serial No.Sticker(0402) 1
KW1-1107
12
6
REEL PLATE Assy(7in)
CLY-84E
CL-84~82E{Pocket (D) type} 8mm-7inch
KW1-MAA10-000
Continued on
Page 13-4,13-5
K87-M212L-100
KW1-M222A-000
KW1-M1120-000
( OLD : KW1-M2210-001 )
No. Part No. Part Name Q'ty Remarks Change Compati.
KW1-M1120-000 Sprocket Assy 1
KW1-M2210-001 Body Assy 1
KW1-MAA10-000 Body Assy 1 sharing with CLi MR30109 OK
KW1-M222A-000 Racking Lever Assy 1
K87-M212L-100 Sprocket Axis Assy 1
1 KW1-M1113-000 Knock Pin (Rear) 1 *Attention
2
3
4
5
6
7 K87-M111H-200 Back Stopper 1
8 KW1-M111A-000 Spring 1
9
10
11
12 K87-M111C-000 Plane Washer 1
13
14 K87-M1112-100 Knock Pin (Front) 1 *Attention
15 K87-M112D-100 Coil Spring 1
16
17
18
19 K87-M111G-000 Push Pin 1
20 K87-M111D-000 Push Pin 1
21 K87-M111G-100 Push Pin 1
22
23 KW1-M221F-100 Stopper Pin 1
24 K87-M211B-000 Back Stopper Axis 1
25 K87-M111P-000 Screw,Flat Head+ 1
26 K87-M111T-000 Screw,Set 2
27 K87-M111R-000 Screw,Set 6
28
29
K87-M1115-000 Circular Rivet
2
*Attention
KW1-2011
13
1
BODY & RACHET Unit
CL-12
CL-12(B type) 12mm
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
KW1-M224S-000
KW1-M2240-010
KW1-M224A-000
No. Part No. Part Name Q'ty Remarks
KW1-M2240-010 TAPE GUIDE PLATE UNIT 1
KW1-M224S-000 TAPE GUIDE PLATE ASSY 1
KW1-M224A-000 HAND LEVER ASSY 1
1 KW1-M116K-000 LEVER AXIS 1
2 KW1-M2277-000 MAIN ARM 1
3 KW1-M221E-000 SPRING 1
4
5
KW1-M2243-010 SHUTTER PLATE
1
*Attention
6
KW1-M2244-010
SHUTTER GUIDE PIN 2
*Attention
7
8
9
10 KW1-M2284-000 CYLINDER ADJUST PLATE 1
11 KW1-M224D-000 SUB ARM 1
12 K87-M111C-000 PLANE WASHER 2
13
14 K87-M1181-000 ROD CONNECT 1
15
K87-M214N-000 GUIDE AXIS
1
16
17
K87-M2149-000
SHUTTER COVER 1
*Attention
18 K87-M214P-000 GUIDE PIN 1
19 K87-M1184-000 CONNECT PIN 1
20 KW1-M2285-000 MULTI CYLINDER 1
21 K87-M56C1-000 BARB CONNECTOR STRAIGHT 2
22 KW1-M22B1-000 AIR HOSE (60mm) 1
23 K87-M111P-000 SCREW,FLAT HEAD+ 2 *Attention
24 K87-M11BF-000 SCREW,FLAT HEAD+ 2
25 KW1-M22B6-000 S.W.
付
SCREW,CAPBOLT HEAD 2
26 K87-M11B9-000 CIRCLIP E 1
KW1-1107
13
2

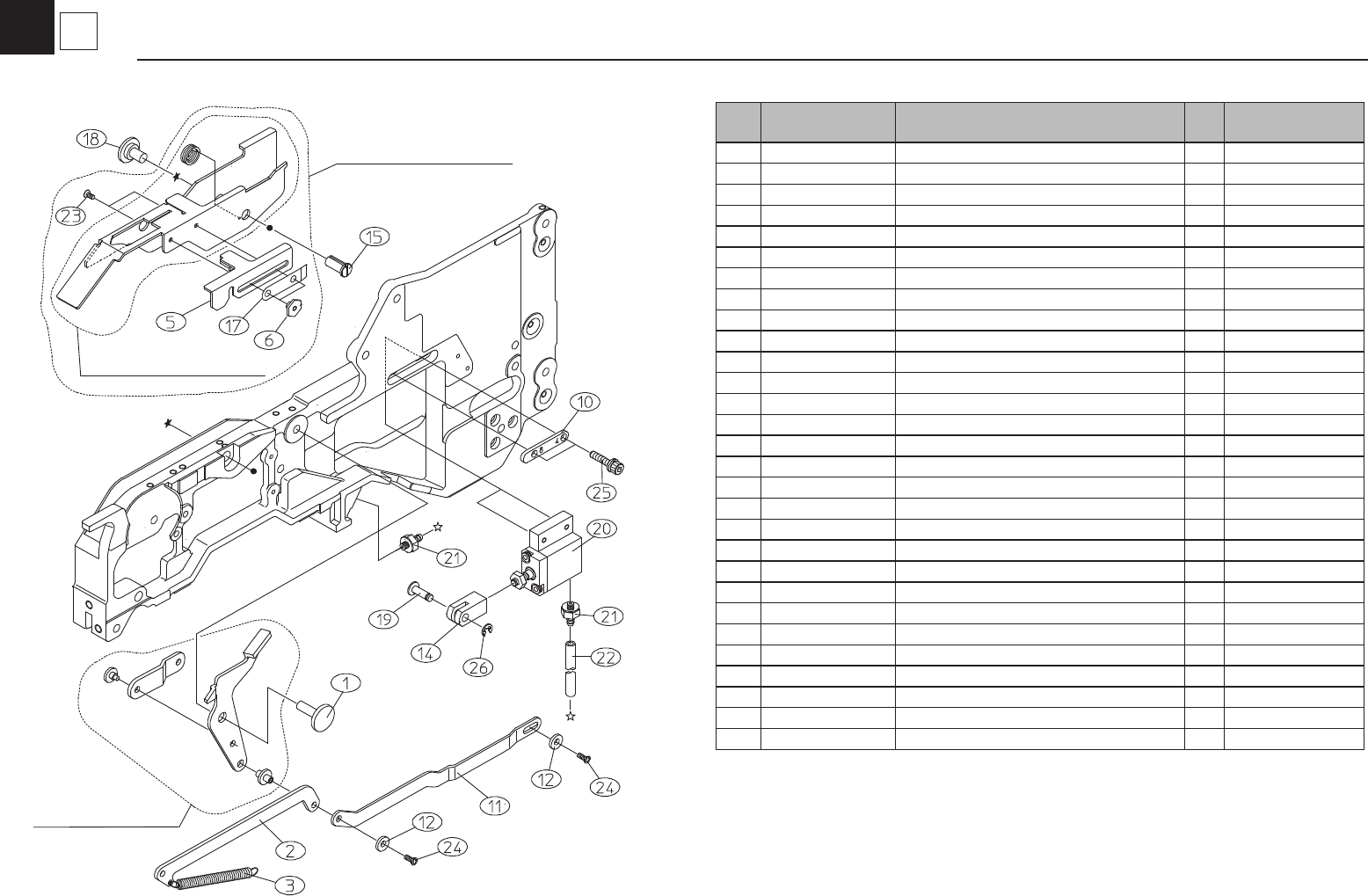

TAPE GUIDE & AIR CYLINDER Assy
CL-12
CL-12(C type) / CLI-12 (A type) 12mm
*Attention: This parts need thread locker and training.
*Attention:
接着部品のため修理依頼を推奨します。
