KW1-M2231-001 KW1-M2232-000 K87-M213A-000 No. Part No. Part Name Q'ty Remarks KW1-M2231-001 Clamp Lever Unit 1 KW1-M2232-000 Clamp Lever Assy 1 K87-M213A-000 Clank Arm Assy 1 1 2 3 4 K87-M1 13D-001 Arm 2 5 K87-M1 13…

100%1 / 88
KW1-M324S-000
KW1-M3240-010
KW1-M324A-000
No. Part No. Part Name Q'ty Remarks Change Compati.
KW1-M3240-000 TAPE GUIDE PLATE UNIT
1
KW1-M3240-010
TAPE GUIDE PLATE UNIT 1
OK
KW1-M324S-000 TAPE GUIDE PLATE ASSY 1
KW1-M324A-000 HAND LEVER ASSY 1
1
KW1-M111E-001 SPRING 1 S.T.D.
KW1-M321E-A00
MAIN ARM RETURN SPRING
1 16mm Pich MH90036
2 KW1-M116K-000 LEVER AXIS 1
3 KW1-M2244-010 SHUTTER GUIDE PIN 2 *Attention
4
5
6 KW1-M3277-000 MAIN ARM 1
7
8 KW1-M3243-010 SHUTTER PLATE 1 *Attention
9
10 KW1-M3284-000 CYLINDER ADJUST PLATE 1
11 KW1-M324D-000 SUB ARM 1
12 K87-M111C-000 PLANE WASHER 2
13
14 K87-M1181-000 ROD CONNECT 1
15 K87-M214N-000 GUIDE AXIS 1
16
17 K87-M2149-000 SHUTTER COVER 1 *Attention
18 K87-M214P-000 GUIDE PIN 1
19 K87-M1184-000 CONNECT PIN 1
20 KW1-M2285-000 MULTI CYLINDER 1
21 K87-M56C1-000
BARB CONNECTOR STRAIGHT
2
22 KW1-M22B1-000 AIR HOSE (60mm) 1
23 K87-M111P-000 SCREW,FLAT HEAD+ 2 *Attention
24 K87-M11BF-000 SCREW,FLAT HEAD+ 2
25 KW1-M22B6-000
S.W.SCREW,CAPBOLT HEAD
2
26 K87-M11B9-000 CIRCLIP E 1
*Attention: This parts need thread locker and training.
*Attention:
接着部品のため修理依頼を推奨します。
KW1-1107
14
2
TAPE GUIDE & AIR CYLINDER Assy
CL-16
CL-16(C type) / CLI-16(A type) 16mm
KW1-M2231-001
KW1-M2232-000
K87-M213A-000
No. Part No. Part Name Q'ty Remarks
KW1-M2231-001 Clamp Lever Unit 1
KW1-M2232-000 Clamp Lever Assy 1
K87-M213A-000 Clank Arm Assy 1
1
2
3
4 K87-M113D-001 Arm 2
5 K87-M113E-000 Hinge Pin 2 1
6
7 K87-M213M-000 Axis Pin 1
8 K87-M213L-100 Clamp Lever Axis 1
9
10 K87-M113H-000 Push Pin 1
11 K87-M111V-000 Screw,Set 2
12 K87-M11D7-000 Circlip E 2
KW1-0911
14
3
TOGGLE CLAMP Assy CL-16
CL12(B type)12mm
Continued from
Page 14-1

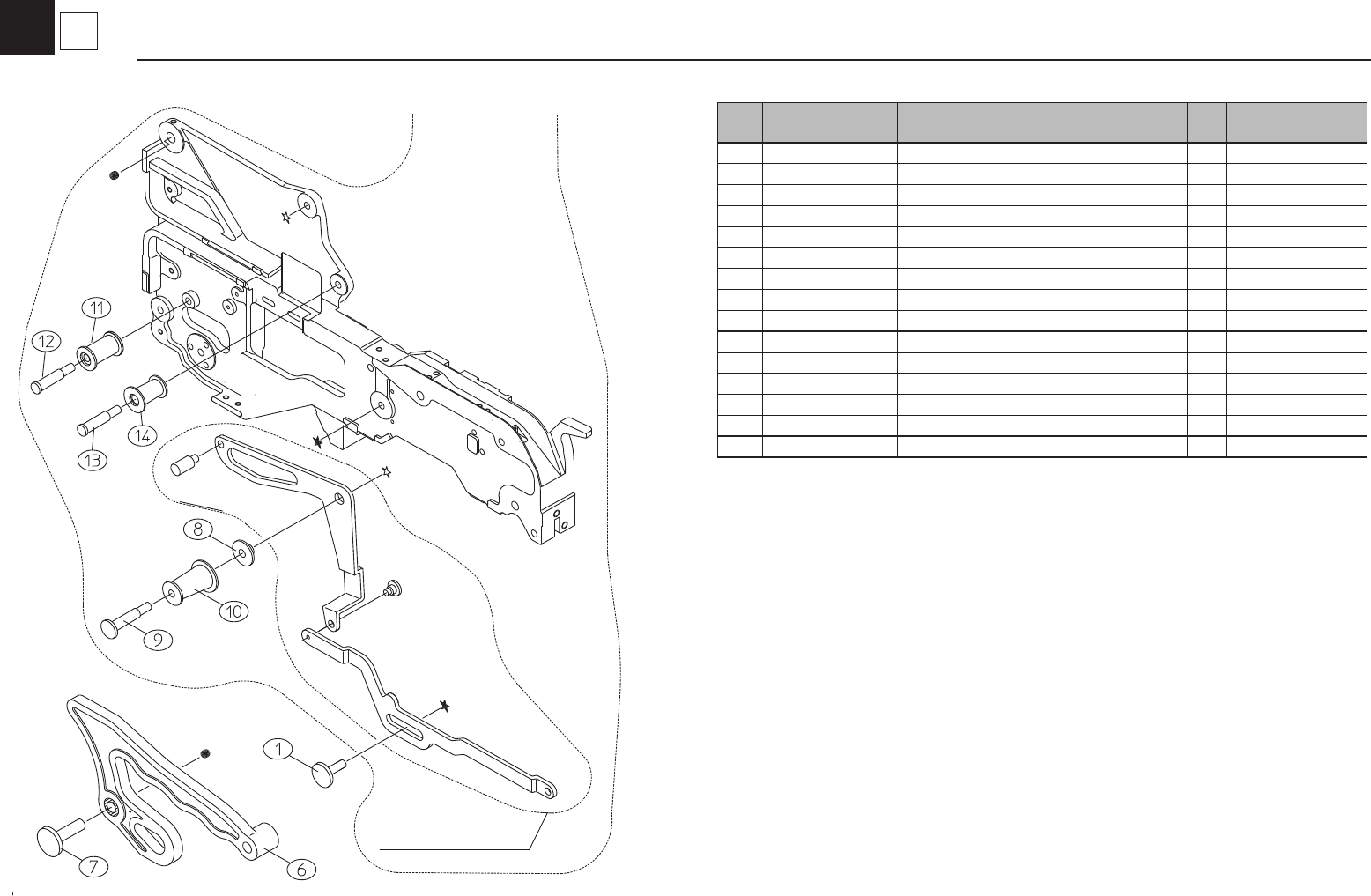

KW1-M3250-000
No. Part No. Part Name Q'ty Remarks
KW1-M3250-000 Handle Lever Assy 1
1 KW1-M116K-000 Lever Axis 1
2
3
4
5
6 KW1-M325L-200 Hold Arm (Black) 1
7 KW1-M325M-000 Hold Arm Axis 1
8 Lever Metal 1 *Attention
9 Metal Axis 1 *Attention
10 Taper Roller 1 *Attention
11 Roller 1 *Attention
12 Roller Axis 1 *Attention
13 Roller Axis 1 *Attention
14 Taper Roller 1 *Attention
KW1-0911
14
4
HOLD ARM & ROLLER,COVER Assy CL-16
CL-16(C type) 16mm
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
