KW1-M32D0-101 KW1-M32D1-101 KW1-M32DA-100 No. Part No. Part Name Q'ty Remarks KW1-M32DA-100 T ension Lever Assy 1 KW1-M32D0-101 Reel Holder Assy 1 KW1-M32D1-101 Reel Plate Assy 1 1 2 3 4 5 6 7 K87-M22DL-000 Spring 1…
KW1-M326D-000
Continued from
Page 14-1
KW1-M329L-000
KW1-M3292-000
KW1-M329F-000
KW1-M3291-000
KT-A16-1170-B

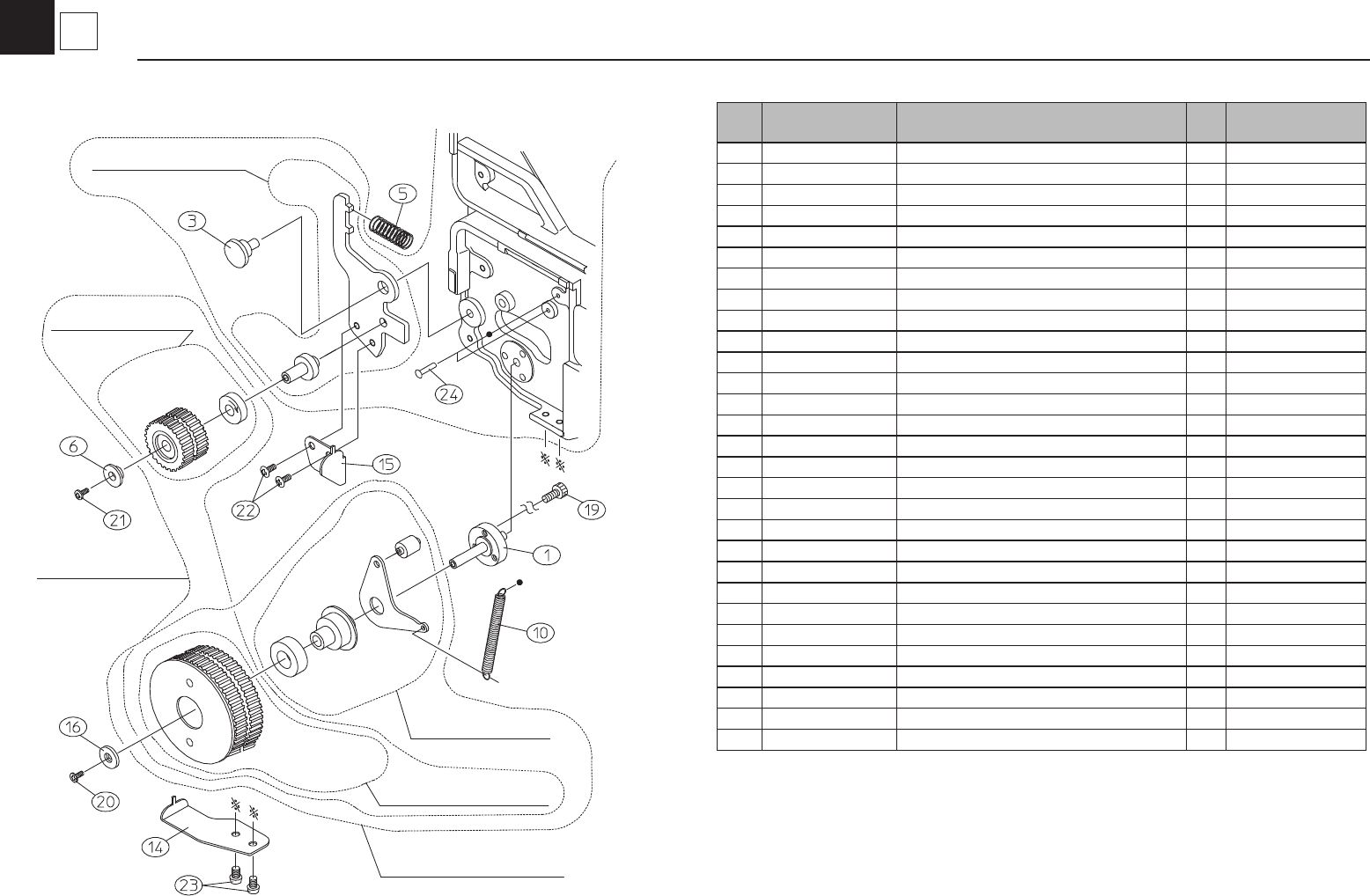

No. Part No. Part Name Q'ty Remarks
KW1-M326D-000 TENSION LEVER ASSY 1 *Attention
KW1-M329L-000 IDLE ROLLER ASSY 1
KW1-M3292-000 INDENTATION LEVER ASSY 1
KW1-M329F-000 DRIVE ROLLER ASSY 1
KW1-M3291-000 DRIVE ROLLER UNIT 1
1 KW1-M326J-000 METAL SHAFT 1
2
3
KW1-M116F-000 LEVER AXIS PIN
1
*Attention
4
5 KW1-M119P-000 SPRING 1
6 KW1-M229R-000 COLLAR 1
7
8
9
10 KW1-M229K-000 SPRING 1
11
12
13
14
KW1-M32A1-001 LOWER GUIDE PLATE , R
1
15
KW1-M32A3-002
LOWER GUIDE PLATE , L 1
16 K87-M117B-000 PLANE WASHER 1
17
18
19 KW1-M22B5-000 SCREW,BOLT HEX.SOCKET 3
20 K87-M11BB-000 SCREW,FLAT HEA+ IB 1
21 K87-M55BG-000 SCREW,TRUSS HEAD+ 1
22 K87-M111N-000 SCREW,PAN HEAD+ 2
23 K87-M53BS-000 SCREW,PAN HEAD+ 2
24 K87-M1115-000 CIRCULAR RIVET 2 *Attention
KW1-1107
14
5
ROLL UP Unit
CL-16
CL-16(C type) 16mm
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
KW1-M32D0-101
KW1-M32D1-101
KW1-M32DA-100
No. Part No. Part Name Q'ty Remarks
KW1-M32DA-100 Tension Lever Assy 1
KW1-M32D0-101 Reel Holder Assy 1
KW1-M32D1-101 Reel Plate Assy 1
1
2
3
4
5
6
7 K87-M22DL-000 Spring 1
8 K87-M55BN-000 Screw,Flat Head+ 3
9 K87-M11D7-200 Circlip C 1
KW1-0911
14
6
REEL PLATE Assy(15in) CL-16
CL-16(C type) 16mm-15inch
