Samsung Component Placer SM320 Intr oduction 5-6 5.4.2. The Sensor Part List 5-1. The table of sens or part list No PA R T N O P ART NAME TYPE Q'TY REMARK 1 J321 2022A PHOTO SENSOR EE-SX674 6 X/Y -AXI…
5-5
5.4.
5.4.1. The Sensor Lay-Out
5-4.
Layout
Samsung Component Placer SM320 Introduction
5-6
5.4.2. The Sensor Part List
5-1. The table of sensor part list
No PART NO PART NAME TYPE Q'TY REMARK
1 J3212022A PHOTO SENSOR EE-SX674 6 X/Y-AXIS HOME/LIMIT
2 J3212048A MICRO PHOTO SENSOR PM-U24 6 Z-AXIS HOME/LIMIT
3 J3212027A MICRO PHOTO SENSOR PM-L24 7 THETA / MIRROR HOME SENSOR
4 J9080778A ANC SENSOR CABLE ASSY SM-CV010 1 ANC SENSOR OPEN / CLOSE
5 J3211015A FEEDER UNLOCK SENSOR E3T-ST110-2M 2 FEEDER UNLOCK CHECK
6 J1300094 PHOTO SENSOR EE-SX672A 3 AUTO PCB WIDTH-HOME/LIMIT
7 J3211033A PHOTO SENSOR BYD50-DDT 2 CHECK PCB IN, OUT, POSIITION
8 J3212040A PHOTO SENSOR BGS-2S15N 2 CHECK PCB WAITING, PLACING
9 J1301640 SAFETY DOOR SWITCH D4DS-2AFS 2 CHECK DOOR OPEN
10 J9060337A HEAD VACUUM SENSOR SUB BOARD REV 1.1 1 CHECK VACUUM PRESSURE
11 J3211027A AREA SENSOR NA2-12 2 SAFETY SENSOR (OPTION)
12 J1301053 PHOTO SENSOR EE-SX670A 2 CHECK BACK UP TABLE UP/DOWN
13 J3211032A PHOTO SENSOR BYD30-DDT 1 PCB QUICK LOADING
Module Function
6-1
6. Module Function
6.1. HeadHead Assembly
6.1.1. Head

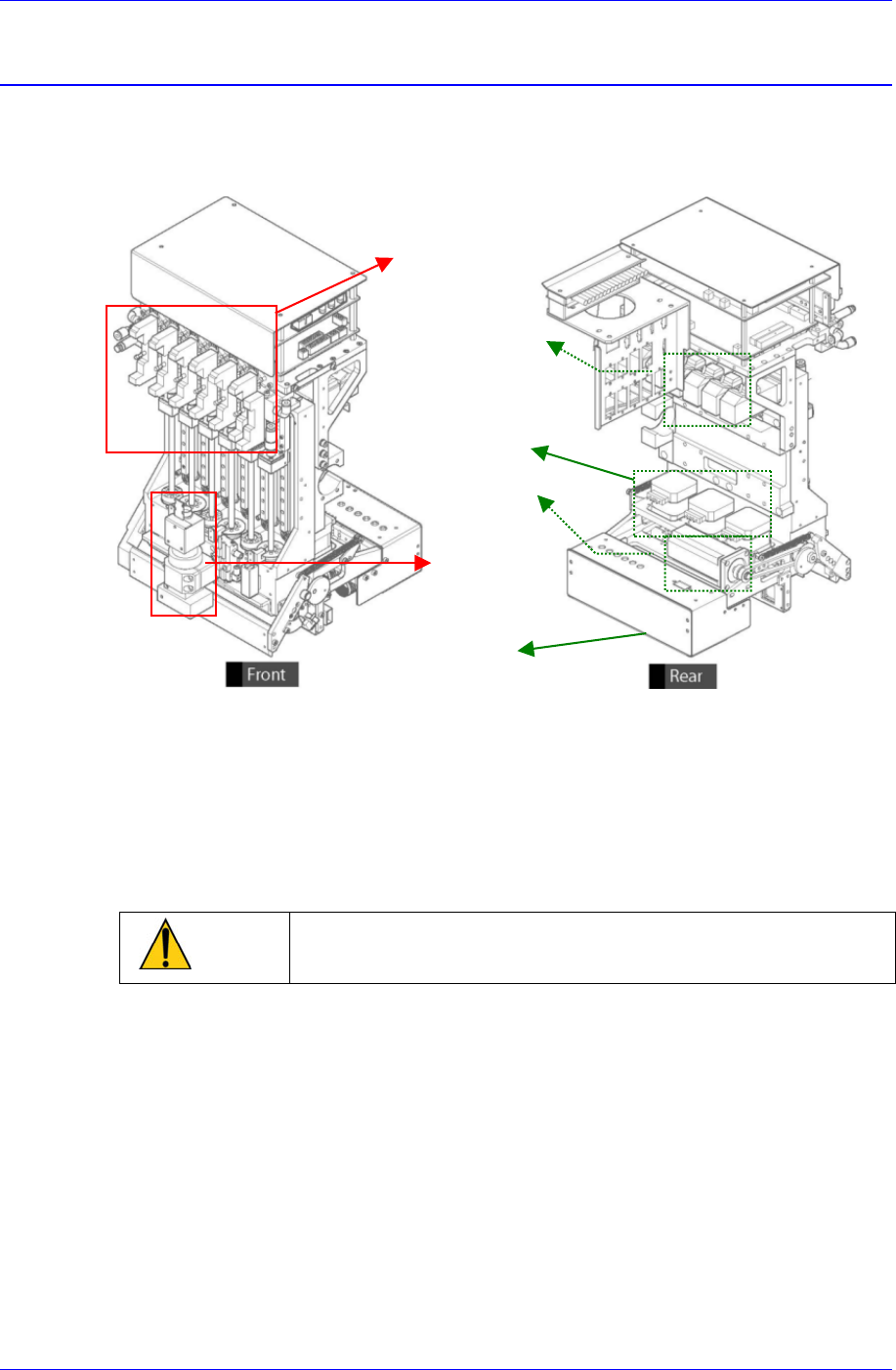

6-1. Head Assembly
Head Assembly 6 Spindle
Units
SpindleFlying Vision Camera
Tape
FeederPickupSpindleSpindleSpindle(30.00
mm)
Z
Vacuum Valve
Fiducial Camera
Flying Vision
Z
Mirror Motor
