18.第16ｽﾃｰｼｮﾝ(NG部ﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部(CSPU,CSPK) 18.Station 16(Parts eject),Waste tape cutter(CSPU,CSPK) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 WPK0370 1 DUCT …
Right-to-left board flow
逆流れ (Option)
A
C
B
A
C
B
18 - 2

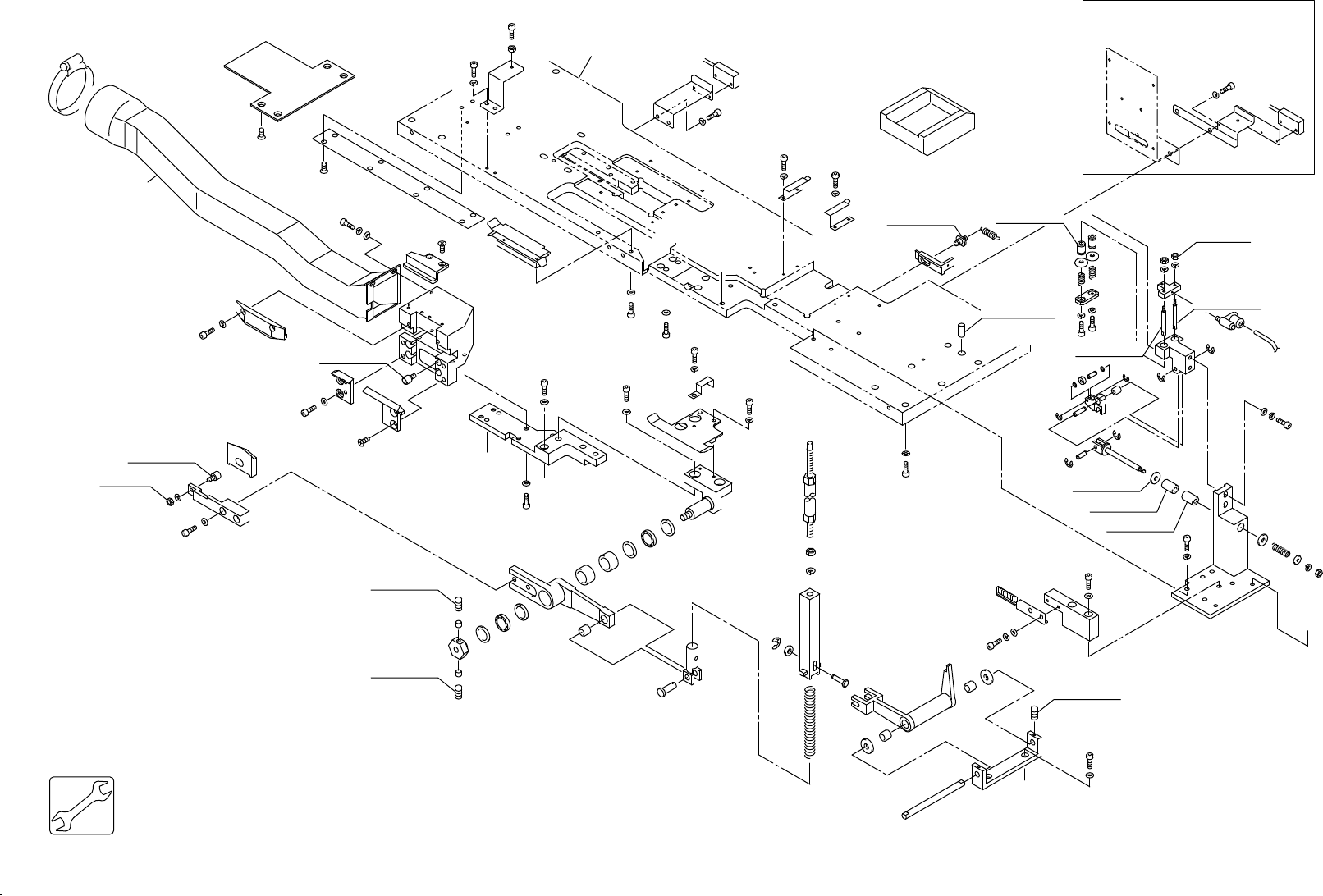

18.第16ｽﾃｰｼｮﾝ(NG部ﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部(WPU,WPK)
18.Station 16(Parts eject),Waste tape cutter(WPU,WPK)
18.第16ｽﾃｰｼｮﾝ(NG部ﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部(WPU,WPK)
18.Station 16(Parts eject),Waste tape cutter(WPU,WPK)
CP-643E PARTS LIST
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
3.9N.m
LOCTITE648
LOCTITE222
LOCTITE222
LOCTITE262
LOCTITE262
4.9N･m
LOCTITE222
LOCTITE601
LOCTITE601
LOCTITE222
LOCTITE601
LOCTITE222
LOCTITE222
LOCTITE222
1.47N･m
(LOCTITE601)
18.第16ｽﾃｰｼｮﾝ(NG部ﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部(CSPU,CSPK)
18.Station 16(Parts eject),Waste tape cutter(CSPU,CSPK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 WPK0370 1 DUCT ﾀﾞｸﾄ FE
2 WPK0023 1 PLATE ﾌﾟﾚｰﾄ FE
3 WPK0330 1 BKT BKT FE
4 WPK0241 1 CUTTER, STATIONARY ｶｯﾀ 固定 FE
5 WPK0260 1 PLATE ﾌﾟﾚｰﾄ FE
6 WPK0271 1 PLATE ﾌﾟﾚｰﾄ FE
7 WPK0071 1 PLATE ﾌﾟﾚｰﾄ FE
8 WPK0312 1 CUTTER, MOVABLE ｶｯﾀ 可動 FE
9 WPK0100 1 CLAMPER ｸﾗﾝﾊﾟ FE
10 WPK0111 1 PLATE ﾌﾟﾚｰﾄ FE
11 WPK0122 1 SHAFT, PIVOT ｼｬﾌﾄ 支点 FE
12 WPK0130 1 LEVER ﾚﾊﾞｰ FE
13 GPK0880 1 NUT ﾅｯﾄ FE
14 GPK2220 2 BLOCK 駒 CO
15 H4296A 2 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ AS1629 FE
16 H4300A 1 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1629 FE
17 H4297A 2 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ AS1831 FE
18 H4301A 1 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1831 FE
19 H4412A 2 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA1612Z FE
20 K1091A 5 CAM FOLLOWER ｶﾑﾌｫﾛｱ CFS-05 OT
21 WPU0281 1 BOX BOX FE
22 WPK0159 1 PLATE ﾌﾟﾚｰﾄ FE
23 WPU0370 1 BKT BKT FE
24 GPH1795 1 PIN ﾋﾟﾝ FE
25 H4403A 3 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA810Z FE
26 WPU0212 1 JOINT ｼﾞｮｲﾝﾄ FE
28 WPU0220 1 JOINT ｼﾞｮｲﾝﾄ FE
29 WPU0340 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
30 WPU0331 1 JOINT ｼﾞｮｲﾝﾄ FE
31 WPU0203 1 LEVER ﾚﾊﾞｰ FE
32 WPU0030 1 BKT BKT FE
33 WPU0070 2 COLLAR ｶﾗｰ CO
34 WPU0151 1 SHAFT ｼｬﾌﾄ FE
35 WPU0361 1 BKT BKT FE
36 WPU0290 1 BRUSH ﾌﾞﾗｼ FE
37 WPU0241 1 PIN ﾋﾟﾝ FE
38 WPU0250 1 WASHER ﾜｯｼｬ FE
39 WPU0383 1 BKT BKT FE
40 WPU0482 1 LEVER ﾚﾊﾞｰ FE
41 H4400A 1 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA59Z FE
42 WPU0181 1 PIN ﾋﾟﾝ FE
CP-643E PARTS LIST
18 - 3
18.第16ｽﾃｰｼｮﾝ(NG部ﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部(CSPU,CSPK)
18.Station 16(Parts eject),Waste tape cutter(CSPU,CSPK)
18.第16ｽﾃｰｼｮﾝ(NG部ﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部(CSPU,CSPK)
18.Station 16(Parts eject),Waste tape cutter(CSPU,CSPK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
43 WPU0121 1 SHAFT ｼｬﾌﾄ FE
44 WPU0141 1 WASHER ﾜｯｼｬ FE
45 WPU0190 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
46 WPU0130 1 WASHER ﾜｯｼｬ FE
47 WPU0270 1 STOPPER ｽﾄｯﾊﾟ PL
48 H4431A 2 BEARING, BALL ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ LM6UU FE
49 WPU0170 1 PIN ﾋﾟﾝ FE
50 WPU0090 1 RETAINER 押え FE
51 WPU0100 1 RETAINER 押え FE
52 MPK0281 1 PLATE ﾌﾟﾚｰﾄ
53 MPK0300 1 SPRING ｽﾌﾟﾘﾝｸﾞ
54 MPK0294 1 PIN ﾋﾟﾝ FE
55 WQC0590 1 BKT BKT FE
56 S1022A 5 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-4 FE
57 H5273A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X5L FE
58 K5170k SCREW, C/R COUNTERSUNK 小ﾈｼﾞ 十穴皿 M4X8L FE
59 N4031A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X10L FE
60 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L FE
61 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L FE
62 N4036A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X5L FE
63 H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L FE
64 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L FE
65 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
66 K5198A SCREW, COUNTERSUNK 小ﾈｼﾞ 皿 M6X15L FE
67 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L FE
68 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L FE
69 H5323A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X18L FE
71 H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L FE
72 H5341A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X20L FE
73 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
74 W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9 FE
75 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
76 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L FE
77 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
78 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
79 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L FE
81 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H FE
82 W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-H FE
83 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
84 N1079A NUT, HEX ﾅｯﾄ 六角 M4 FE
85 N1082A NUT, HEX ﾅｯﾄ 六角 M5 FE
CP-643E PARTS LIST
18 - 4
18.第16ｽﾃｰｼｮﾝ(NG部ﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部(CSPU,CSPK)
18.Station 16(Parts eject),Waste tape cutter(CSPU,CSPK)
