CP-643E-08 PART LIST - 第105页

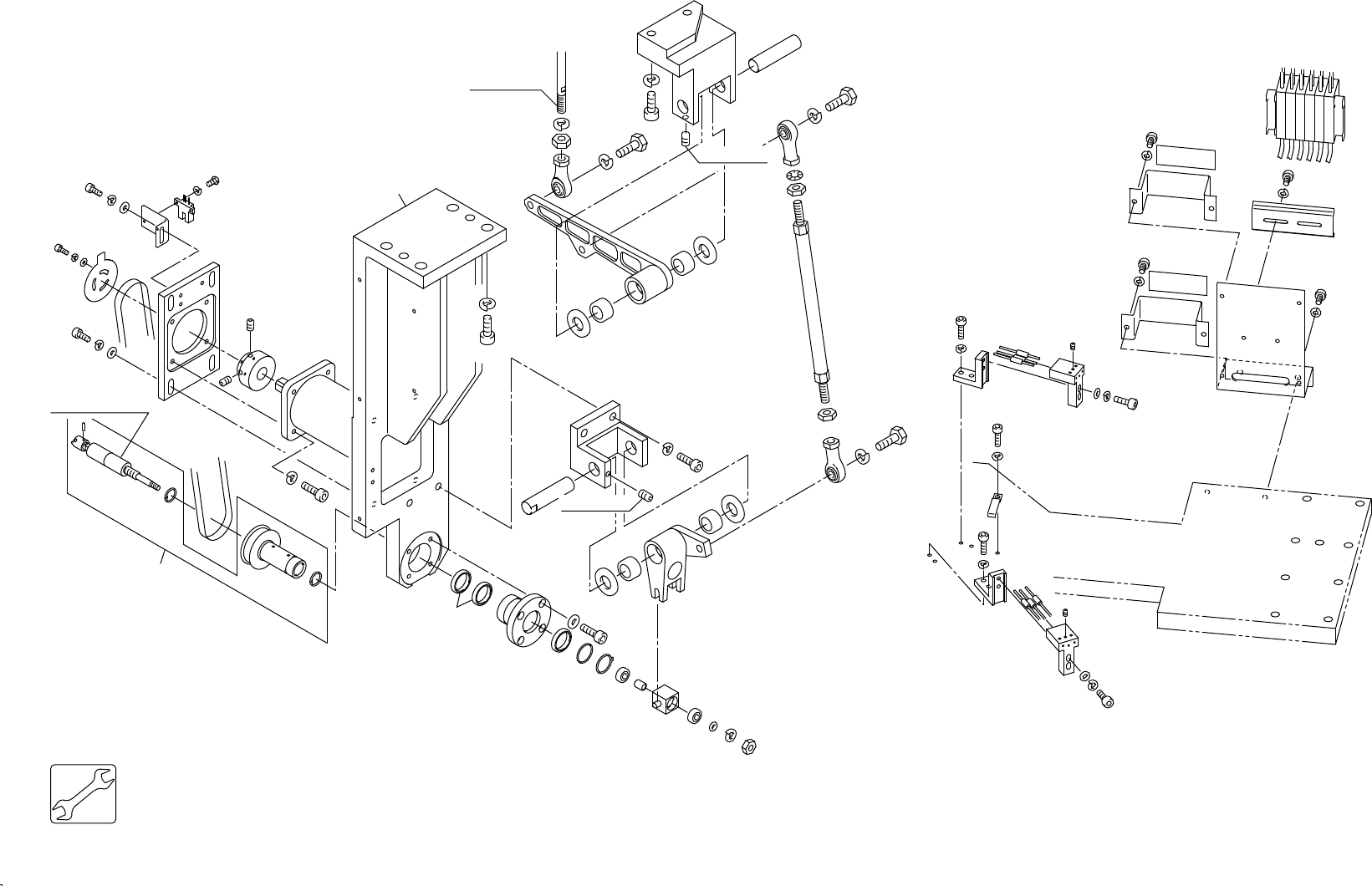

19.第17ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換前確認),第18ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換),第19ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換後確認)(CSPM) 19.Station 17(Nozzle pre change check),Station 18(Nazzle change),Station 19(Nozzle post change check)(CSPM) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.N…
x9
19 - 2
19.第17ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換前確認),第18ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換),第19ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換前確認)(CSPM)
19.Station 17(Nozzle pre change check),Station 18(Nozzle check),Station 19(Nozzle post change check)(CSPM)
19.第17ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換前確認),第18ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換),第19ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換前確認)(CSPM)
19.Station 17(Nozzle pre change check),Station 18(Nozzle check),Station 19(Nozzle post change check)(CSPM)
CP-643E PARTS LIST
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
3.9N.m
LOCTITE222
LOCTITE222
ThreeBond1373B
LOCTITE262
12.74N･m
19.第17ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換前確認),第18ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換),第19ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換後確認)(CSPM)
19.Station 17(Nozzle pre change check),Station 18(Nazzle change),Station 19(Nozzle post change check)(CSPM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 WPM0010 1 BKT BKT FE
2 WPM0021 1 BKT BKT FE
3 WPM0040 4 COLLAR ｶﾗｰ CO
4 YPM0230 1 PLATE ﾌﾟﾚｰﾄ FE
5 WPM0071 1 BKT BKT FE
6 WPM0080 2 SHAFT ｼｬﾌﾄ FE
7 WPM0100 1 PIN ﾋﾟﾝ FE
8 WPM0110 1 WASHER ﾜｯｼｬ FE
9 WPM0120 1 COLLAR ｶﾗｰ FE
10 WPM0132 1 BKT BKT FE
11 AWPM8020 1 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ OT
12 WPM0382 1 WASHER ﾜｯｼｬ FE
13 WPM0170 1 BKT BKT FE
14 WPM0180 1 BKT BKT FE
15 CSPM0012 1 BKT BKT FE
16 WPM0210 2 BKT BKT FE
17 WPM0220 1 SEAL ｼｰﾙ PL
18 WPM0230 1 RAIL ﾚｰﾙ OT
19 WPM0240 1 BKT BKT FE
20 WPM0251 1 DOG ﾄﾞｯｸﾞ AL
21 WPM0293 2 BKT BKT FE
22 WPK0182 1 RETAINER, WIRING 押え 配線 FE
23 WPM0310 1 JOINT ｼﾞｮｲﾝﾄ AL
24 WPM0371 1 LEVER ﾚﾊﾞｰ FE
25 WPM0381 1 LEVER ﾚﾊﾞｰ FE
26 WPM0391 1 JOINT ｼﾞｮｲﾝﾄ FE
27 WPM5012 1 PULLEY ﾌﾟｰﾘ OT
28 SAM6381 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ OT
29 WPM5045 1 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ OT
30 WPM5064 1 PULLEY ﾌﾟｰﾘ OT
31 H4390H 4 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1512A FE
32 H4115H 2 BEARING ﾍﾞｱﾘﾝｸﾞ R-1560ZZ FE
33 H4104A 3 BEARING ﾍﾞｱﾘﾝｸﾞ A-2520 FE
34 H4520M 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 400-5M-9 OT
35 S1038A 1 CIR-CLIP ｻｰｸﾘｯﾌﾟ STW20 FE
36 H3181M 1 PLATE, END ﾌﾟﾚｰﾄ ｴﾝﾄﾞ OT
37 WPA5160 2 PLATE, END ﾌﾟﾚｰﾄ ｴﾝﾄﾞ PBRL8FN OT
38 S1002A 2 CIR-CLIP ｻｰｸﾘｯﾌﾟ RTW15 FE
39 S4040X 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A OT
40 S4054Y 6 SENSOR, FIBER ｾﾝｻ ﾌｧｲﾊﾞ HPF-S053-A OT
41 A1042T 6 AMPLIFIER ｱﾝﾌﾟ HPX-T1 OT
CP-643E PARTS LIST
19 - 3
19.第17,18,19ｽﾃｰｼｮﾝ(CSPM)
19.Station 17(Nozzle pre change check),Station 18(Nazzle change),
Station 19(Nozzle post change check)(CSPM)
19.第17ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換前確認),第18ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換),第19ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換後確認)(CSPM)
19.Station 17(Nozzle pre change check),Station 18(Nazzle change),Station 19(Nozzle post change check)(CSPM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
43 GPH2535 3 BOLT ﾎﾞﾙﾄ FE
44 H5360A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X25L FE
45 H5343A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X30L FE
46 H5341A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X20L FE
47 H5323A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X18L FE
48 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
49 H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L FE
50 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L FE
51 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
52 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L FE
53 K5178M SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X6L FE
54 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L FE
55 N4046A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M6X8L FE
56 N4037A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X8L FE
57 N4018A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X3L FE
58 W1026A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M FE
59 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
60 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
61 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
62 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
63 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
64 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
65 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
66 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
67 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L FE
68 N1089A NUT, HEX ﾅｯﾄ 六角 M8 P=1.25 FE
69 N1091A NUT, HEX ﾅｯﾄ 六角 M8-L FE
70 N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8 FE
71 WPM0401 1 SEAL ｼｰﾙ PL
72 W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-L . FE
CP-643E PARTS LIST
19 - 4
19.第17,18,19ｽﾃｰｼｮﾝ(CSPM)
19.Station 17(Nozzle pre change check),Station 18(Nazzle change),
Station 19(Nozzle post change check)(CSPM)
