CP-643E-08 PART LIST - 第108页
A A x 1 4 2 0 - 2 2 0 . ﾃ ﾞ ﾊ ﾞ ｲ ｽ ﾃ ｰ ﾌ ﾞ ﾙ D 1 ( 1 ∼7 0 ) ( C S S D ) 2 0 . D e v i c e t a b l e D 1 ( 1 ∼7 0 ) ( C S S D ) 2 0 . ﾃ ﾞ ﾊ ﾞ ｲ ｽ ﾃ ｰ ﾌ ﾞ ﾙ D 1 ( 1 ∼7 0 ) ( C S S D ) 2 0 . D e v i c e t a b l e D 1 ( 1 ∼…
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
105
104
105
123
122
124
72
94
62
72
94
114
63
76
101
80
105
68
111
66
67
65
86
106
70
69
90
108
71
93
110
109
76
99
120
76
99
120
77
99
51
117
117
50
54
53
52
56
55
64
93
110
98
60
112
58
59
59
59
116
115
115
57
98
60
61
112
112
80
104
A
125
73
97
118
96
97
119
73
97
96
41
73
97
96
40
39
81
103
46
83
103
32
34
36
35
95
74
74
95
33
37
113
113
38
121
81
103
75
102
81
103
45
77
99
11
9
8
5
7
6
3
77
100
13
12
77
99
8
9
108
91
42
78
101
100
82
104
13
12
2
103
86
85
103
48
105
84
4
107
89
78
100
13
14
88
106
16
92
108
126
126
1
72
94
31
76
101
30
87
106
29
28
27
17
18
19
88
106
26
23
25
24
22
21
20
47
103
83
A
x14
20 - 1

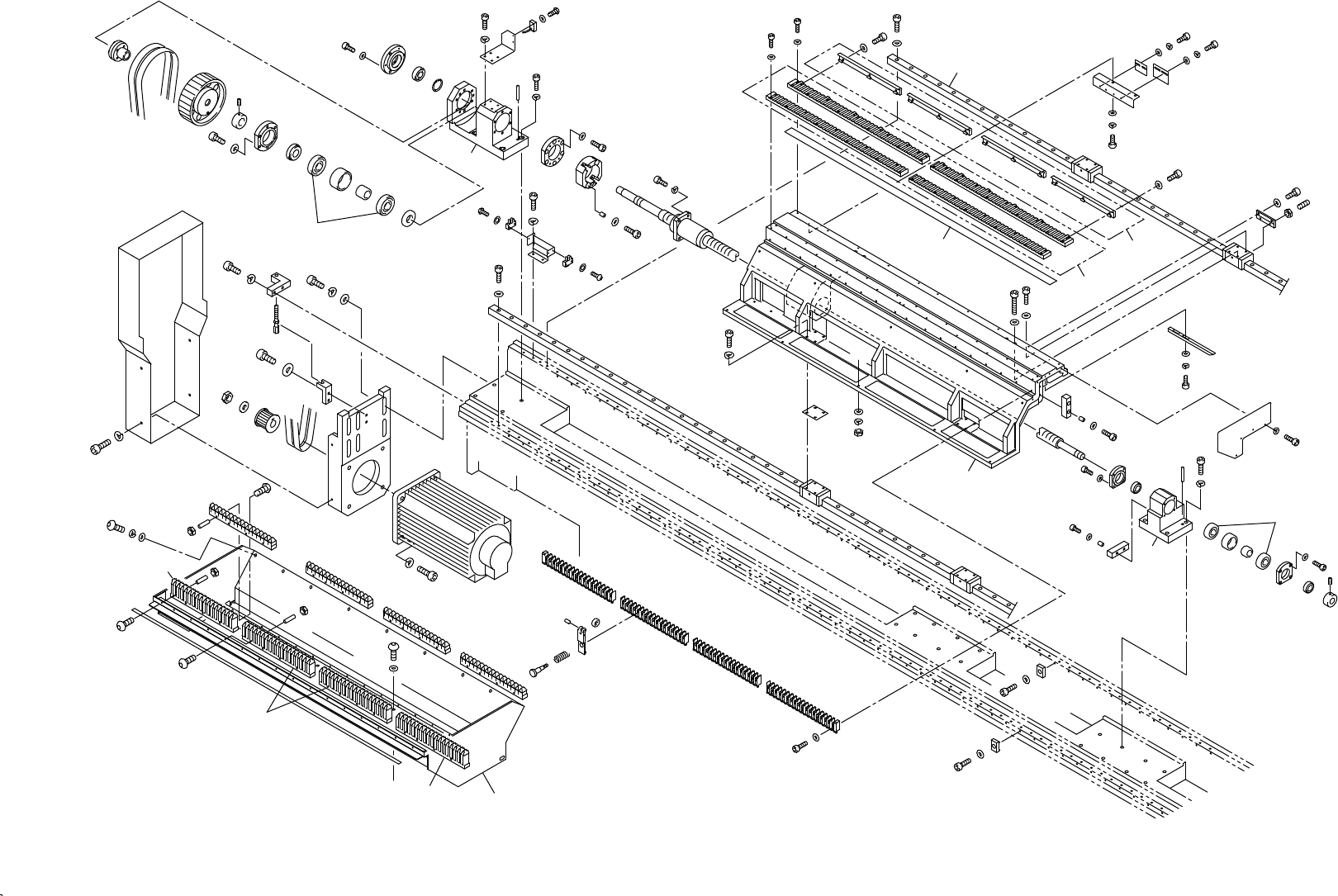

20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1(1∼70)(CSSD)
20.Device table D1(1∼70)(CSSD)
20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1(1∼70)(CSSD)
20.Device table D1(1∼70)(CSSD)
CP-643E PARTS LIST
A
A
x14
20 - 2
20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1(1∼70)(CSSD)
20.Device table D1(1∼70)(CSSD)
20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1(1∼70)(CSSD)
20.Device table D1(1∼70)(CSSD)
CP-643E PARTS LIST
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
3.9N.m
6.86N･m
88.2N･m
LOCTITE262
7.84N･m
LOCTITE262
1.96N･m∼7.84N･m
12.74N･m
24.5N･m
12.74N･m
6.86N･m
88.2N･m
16.66N･m
12.74N･m
20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1 (1∼70)(CSSD)
20.Device table D1 (1∼70)(CSSD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 WSD0553 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
2 WSD1077 1 SLIDE ｽﾗｲﾄﾞ AL
3 WSD1051 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
4 WSD0331 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
5 H4159A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 20TAC47BDB FE
6 WSD0440 1 COLLAR ｶﾗｰ FE
7 WSD0450 1 COLLAR ｶﾗｰ FE
8 WSD0473 2 COVER, DUSTPROOF ｶﾊﾞｰ 防塵 FE
9 WSD1040 2 COLLAR ｶﾗｰ FE
11 N1040A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ WBK20L-31 注2. Note.2 FE
12 WSD1020 2 STOPPER ｽﾄｯﾊﾟ PL
13 WSD0421 8 COLLAR ｶﾗｰ FE
14 WSD0862 1 STOPPER ｽﾄｯﾊﾟ PL
16 WSD0393 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
17 R2059E 1 RING, LOCKING ﾘﾝｸﾞ 締結 SCE210 22X32 OT
18 WSD0671 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ OT
19 WSD0081 1 PULLEY ﾌﾟｰﾘ OT
20 . 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ WBK25L-31 注2. Note.2 FE
21 WSD0351 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
22 WSD0361 1 COLLAR ｶﾗｰ FE
23 H4161A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 25TAC62DB FE
24 WSD0372 1 COLLAR ｶﾗｰ FE
25 WSD0381 1 COLLAR ｶﾗｰ FE
26 WSD0411 1 COLLAR ｶﾗｰ FE
27 S1010A 1 CIR-CLIP ｻｰｸﾘｯﾌﾟ RTW42 FE
28 H4248A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 6004ZZ FE
29 WSD0341 1 CAP ｷｬｯﾌﾟ FE
30 WSD0611 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
31 S3138T 1 SW, PHOTOELECTRIC SW 光電 PZ2-51 OT
32 WSD1120 1 NAMEPLATE, SEAL 銘板 ｼｰﾙ PL
33 WSD0216 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 注1. Note.1 FE
34 WSD0226 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 注1. Note.1 FE
35 WSD0198 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 注1. Note.1 FE
36 WSD0208 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 注1. Note.1 FE
37 WSD0235 1 CLAMPER ｸﾗﾝﾊﾟ FE
38 WSD0245 1 CLAMPER ｸﾗﾝﾊﾟ FE
39 WSD4011 1 PLATE, TIGHTENING ﾌﾟﾚｰﾄ 締付け FE
40 WSD0142 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
41 WSD0161 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
42 WSD0481 1 DOG, SW ﾄﾞｯｸﾞ SW FE
45 WSD0132 2 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 FE
CP-643E PARTS LIST
20 - 3
20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1 (1∼70)(CSSD)
20.Device table D1 (1∼70)(CSSD)
