20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1 (1∼70)(CSSD) 20.Device table D1 (1∼70)(CSSD) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 WSD0553 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE 2 WSD1077 1…
A
A
x14
20 - 2

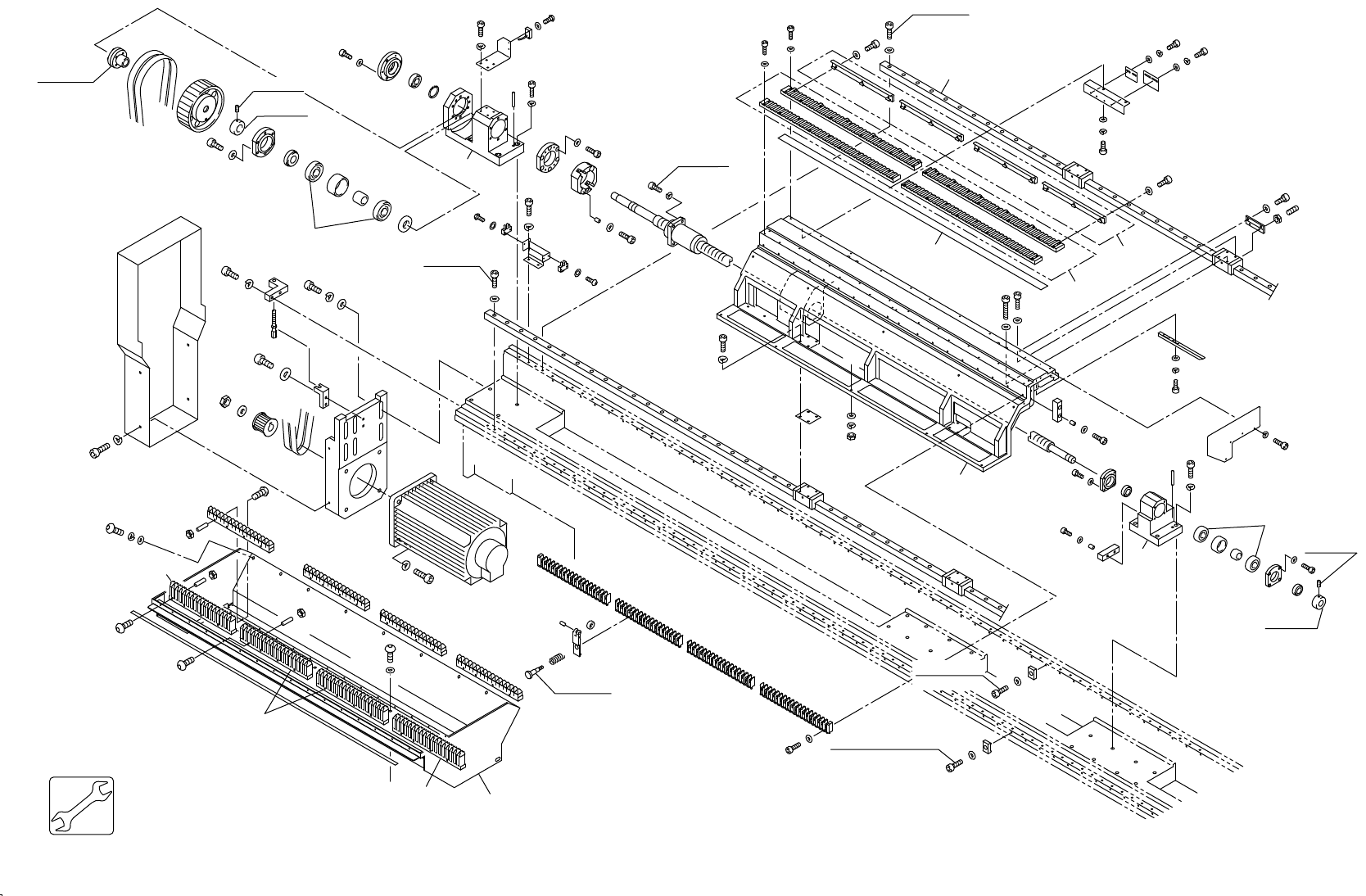

20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1(1∼70)(CSSD)
20.Device table D1(1∼70)(CSSD)
20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1(1∼70)(CSSD)
20.Device table D1(1∼70)(CSSD)
CP-643E PARTS LIST
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
3.9N.m
6.86N･m
88.2N･m
LOCTITE262
7.84N･m
LOCTITE262
1.96N･m∼7.84N･m
12.74N･m
24.5N･m
12.74N･m
6.86N･m
88.2N･m
16.66N･m
12.74N･m
20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1 (1∼70)(CSSD)
20.Device table D1 (1∼70)(CSSD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 WSD0553 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
2 WSD1077 1 SLIDE ｽﾗｲﾄﾞ AL
3 WSD1051 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
4 WSD0331 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
5 H4159A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 20TAC47BDB FE
6 WSD0440 1 COLLAR ｶﾗｰ FE
7 WSD0450 1 COLLAR ｶﾗｰ FE
8 WSD0473 2 COVER, DUSTPROOF ｶﾊﾞｰ 防塵 FE
9 WSD1040 2 COLLAR ｶﾗｰ FE
11 N1040A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ WBK20L-31 注2. Note.2 FE
12 WSD1020 2 STOPPER ｽﾄｯﾊﾟ PL
13 WSD0421 8 COLLAR ｶﾗｰ FE
14 WSD0862 1 STOPPER ｽﾄｯﾊﾟ PL
16 WSD0393 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
17 R2059E 1 RING, LOCKING ﾘﾝｸﾞ 締結 SCE210 22X32 OT
18 WSD0671 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ OT
19 WSD0081 1 PULLEY ﾌﾟｰﾘ OT
20 . 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ WBK25L-31 注2. Note.2 FE
21 WSD0351 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
22 WSD0361 1 COLLAR ｶﾗｰ FE
23 H4161A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 25TAC62DB FE
24 WSD0372 1 COLLAR ｶﾗｰ FE
25 WSD0381 1 COLLAR ｶﾗｰ FE
26 WSD0411 1 COLLAR ｶﾗｰ FE
27 S1010A 1 CIR-CLIP ｻｰｸﾘｯﾌﾟ RTW42 FE
28 H4248A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 6004ZZ FE
29 WSD0341 1 CAP ｷｬｯﾌﾟ FE
30 WSD0611 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
31 S3138T 1 SW, PHOTOELECTRIC SW 光電 PZ2-51 OT
32 WSD1120 1 NAMEPLATE, SEAL 銘板 ｼｰﾙ PL
33 WSD0216 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 注1. Note.1 FE
34 WSD0226 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 注1. Note.1 FE
35 WSD0198 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 注1. Note.1 FE
36 WSD0208 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 注1. Note.1 FE
37 WSD0235 1 CLAMPER ｸﾗﾝﾊﾟ FE
38 WSD0245 1 CLAMPER ｸﾗﾝﾊﾟ FE
39 WSD4011 1 PLATE, TIGHTENING ﾌﾟﾚｰﾄ 締付け FE
40 WSD0142 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
41 WSD0161 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
42 WSD0481 1 DOG, SW ﾄﾞｯｸﾞ SW FE
45 WSD0132 2 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 FE
CP-643E PARTS LIST
20 - 3
20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1 (1∼70)(CSSD)
20.Device table D1 (1∼70)(CSSD)
20.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ D1 (1∼70)(CSSD)
20.Device table D1 (1∼70)(CSSD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
46 WSD0042 1 BEARING, SLIDE ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ OT
47 WSD0052 1 BEARING, SLIDE ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ OT
48 WSD0620 2 SPACER ｽﾍﾟｰｻ FE
50 WSD0962 1 GUIDE, HOLDER ｶﾞｲﾄﾞ 受け FE
51 WSD0972 1 GUIDE, HOLDER ｶﾞｲﾄﾞ 受け FE
52 WSD0014 70 CLAMPER ｸﾗﾝﾊﾟ FE
53 WSD0652 70 SPRING ｽﾌﾟﾘﾝｸﾞ FE
54 WSD0641 70 BOLT ﾎﾞﾙﾄ FE
55 H4435T 70 BEARING ﾍﾞｱﾘﾝｸﾞ L-1150ZZ FE
56 R5025T 70 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ 5ﾟX10 OT
57 WSD0833 1 HOLDER, REEL ﾎﾙﾀﾞﾘｰﾙ AL
58 WSD0851 1 STEADY BRACE 振れ止め PL
59 WSD0841 3 STEADY BRACE 振れ止め PL
60 MPD5140 32 COLLAR ｶﾗｰ FE
61 MPZ1560 1 SEAL ｼｰﾙ PL
62 S4040Z 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX406-W2A OT
63 WSD1091 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
64 SAM1190 1 MOTOR, AC SERVE ﾓｰﾀ ACｻｰﾎﾞ OT
65 WSD0534 1 PLATE, STEEL ﾌﾟﾚｰﾄ 綱板 FE
66 WSD0690 1 WASHER ﾜｯｼｬ OT
67 MPD6040 1 PULLEY ﾌﾟｰﾘ OT
68 WSD0275 1 COVER, SAFETY ｶﾊﾞｰ 安全 FE
69 WSD0090 1 BOLT ﾎﾞﾙﾄ FE
70 WSD0061 1 BLOCK ﾌﾞﾛｯｸ FE
71 WSD0070 1 BLOCK ﾌﾞﾛｯｸ FE
72 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L FE
73 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
74 H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L FE
75 N4038A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X10L FE
76 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L FE
77 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
78 H5302A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X20L FE
80 K5262N SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M6X35L FE
81 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L FE
82 H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L FE
83 H5325A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X22L FE
84 H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L FE
85 H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L FE
86 H5332A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X50L FE
87 H5340A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X15L FE
88 H5341A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X20L FE
