23.1.防音ﾎﾞｯｸｽ(CSPV) 23.1.Noise reduction box(CSPV) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 WPV0214 1 BOX, NOISE REDACTION BOX 防音 OT 2 WPV0022 1 DUST COLLECTO…
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
38
65
59
63
63
59
66
38
67
11
12
10
13
9
34
52
56
29
30
31
24
56
61
51
55
23
8
7
22
55
60
33
37
74
18
63
58
46
19
68
59
69
63
74
58
3
46
17
15
14
1
39,40
71
49
72
59
54
70
49
47
25
62
57
28
41
45
26
42
41
44
43
49
27
64
20
49
21
73
53
57
36
35
5
54
59
6
2
49
50
32
48
49
16
16
48
49
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
x12.5
C
E
H
G
L
F
K
J
N
M
L
H
G
E
F
A
A
B
B
K
J
D
C
N
M
23 - 1

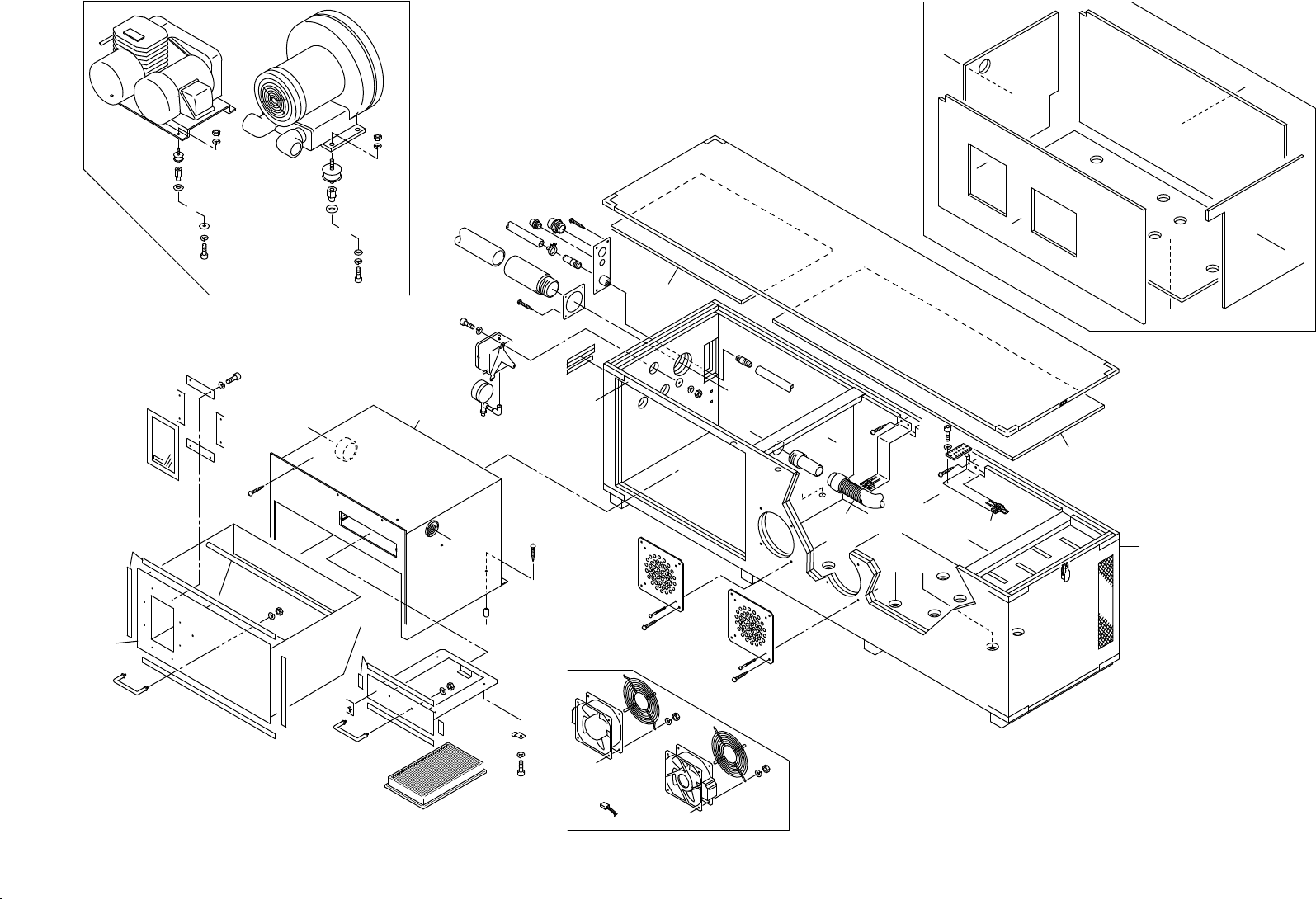

23.1.防音ボックス(CSPV)
23.1.Noise reduction box(CSPV)
23.1.防音ボックス(CSPV)
23.1.Noise reduction box(CSPV)
CP-643E PARTS LIST
23.1.防音ﾎﾞｯｸｽ(CSPV)
23.1.Noise reduction box(CSPV)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 WPV0214 1 BOX, NOISE REDACTION BOX 防音 OT
2 WPV0022 1 DUST COLLECTOR ﾀﾞｸﾄｺﾚｸﾀ FE
3 WPV0031 1 CATCH PAN 受け皿 FE
5 AWPV8011 1 PLATE ﾌﾟﾚｰﾄ OT
6 WPV0060 4 PLATE ﾌﾟﾚｰﾄ FE
7 WPV0070 4 SPACER ｽﾍﾟｰｻ FE
8 WPV0080 4 WASHER ﾜｯｼｬ FE
9 WPV0092 1 MATERIAL, SOUNDPROOF 素材 防音 OT
10 WPV0224 1 MATERIAL, SOUNDPROOF 素材 防音 OT
11 WPV0231 1 MATERIAL, SOUNDPROOF 素材 防音 OT
12 WPV0122 1 MATERIAL, SOUNDPROOF 素材 防音 OT
13 WPV0133 1 MATERIAL, SOUNDPROOF 素材 防音 OT
14 WPV0142 1 MATERIAL, SOUNDPROOF 素材 防音 OT
15 WPV0151 1 MATERIAL, SOUNDPROOF 素材 防音 OT
16 MPZ4120 2 PLATE ﾌﾟﾚｰﾄ FE
17 CSPV0070 1 SEAL ｼｰﾙ PL
18 MPZ4090 1 SEAL ｼｰﾙ PL
19 MPZ4241 1 BKT BKT FE
20 MPZ4251 1 PIPE, PIPING ﾊﾟｲﾌﾟ 配管 FE
21 MPZ4271 1 COVER ｶﾊﾞｰ FE
22 LPZ2530 4 DAMPER ﾀﾞﾝﾊﾟ OT
23 LPZ2540 4 WASHER ﾜｯｼｬ FE
24 GGA0240 4 MATERIAL, RUBBER 素材 ｺﾞﾑ OT
25 GXZ4041 1 PIPE ﾊﾟｲﾌﾟ FE
26 GXZ4050 1 PIPE ﾊﾟｲﾌﾟ FE
27 GXZ4063 1 PLATE ﾌﾟﾚｰﾄ FE
28 GXZ4070 3 WASHER ﾜｯｼｬ FE
29 GXZ4080 8 WASHER ﾜｯｼｬ FE
30 GXZ4090 8 WASHER ﾜｯｼｬ FE
31 GXZ4110 4 SPACER ｽﾍﾟｰｻ FE
32 GXZ4130 3 COLLAR ｶﾗｰ FE
33 S5001B 1 BLOWER, VORTEX 送風器渦巻 VFC504A-7W OT
34 H5447W 1 PUMP, VACUUM ﾎﾟﾝﾌﾟ ﾊﾞｷｭｰﾑ KHA750A-305-G1 OT
35 S3158A 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ ISG190-030-G1 OT
36 . 1 GAUGE ｹﾞｰｼﾞ 4-041421 OT
37 A4091A 1 ELEMENT, AIR CLEANER ｴﾚﾒﾝﾄ ｴｱｰｸﾘｰﾅ 16546-V0100 OT
38 M5050T 2 MOTOR, FAN ﾓｰﾀ ﾌｧﾝ 109-601 OT
39 . 2 TERMINAL BLOCK 端子台 MK3/2 3P OT
40 H2002Z 2 FUSE ﾋｭｰｽﾞ MTG4A50084C OT
41 . 1 HOSE ﾎｰｽ wside19ﾟ,outside26ﾟ(5m) OT
42 H1153A 1 BAND, HOSE ﾊﾞﾝﾄﾞ ﾎｰｽ 27(Wire) OT
CP-643E PARTS LIST
23 - 2
23.1.防音ﾎﾞｯｸｽ(CSPV)
23.1.Noise reduction box(CSPV)
23.1.防音ﾎﾞｯｸｽ(CSPV)
23.1.Noise reduction box(CSPV)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
43 K5152A 1 CONNECTOR, CABLE ｺﾈｸﾀ ｹｰﾌﾞﾙ NC-2 OT
44 K5151A 1 CONNECTOR, CABLE ｺﾈｸﾀ ｹｰﾌﾞﾙ NC-1 OT
45 S5027A 1 SOCKET ｿｹｯﾄ 1/2. OT
46 T5006B 2 HANDLE 取手 THA-240-No7 OT
47 . BELLOWS HOSE ｼﾞｬﾊﾞﾗﾎｰｽ 38ﾟ P Type OT
48 K5181A 2 SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M4X90L FE
49 K5185A 14 SCREW, C/R ROUND 小ﾈｼﾞ 十穴丸 ﾟ5.8X25L FE
50 K5186A 3 SCREW, C/R ROUND 小ﾈｼﾞ 十穴丸 ﾟ5.8X38L FE
51 H5383A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M12X20L FE
52 H5340A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X15L FE
53 H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L FE
54 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L FE
55 W1027A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 12M/M FE
56 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
57 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
58 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
59 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
60 N1073T NUT, HEX ﾅｯﾄ 六角 M12 P=1.5CFH12 FE
61 N1089A NUT, HEX ﾅｯﾄ 六角 M8 P=1.25 FE
62 N1085A NUT, HEX ﾅｯﾄ 六角 M6 P=1.0 FE
63 N1079A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7 FE
64 WPT0130 1 HOSE, AIR ﾎｰｽ ｴｱｰ OT
65 K1141Z 1 GUARD, FIN ｶﾞｰﾄﾞ ﾌｨﾝ 109-619 OT
66 K11413 1 GUARD, FIN ｶﾞｰﾄﾞ ﾌｨﾝ 109-620 OT
67 H3120T 1 PLUG ﾌﾟﾗｸﾞ 489-086L21 OT
68 GGA0411 4 RETAINER 押え FE
69 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X6L FE
70 WPV0250 1 BKT BKT FE
71 WPV0260 1 BKT BKT FE
72 CLF9210 1 BKT, GROUNDING BKT ｱｰｽ OT
73 CSPV0090 1 SEAL ｼｰﾙ PL
74 H1183T 2 PACKING ﾊﾟｯｷﾝ 20M/MX2M ･ FE
CP-643E PARTS LIST
23 - 3
23.1.防音ﾎﾞｯｸｽ(CSPV)
23.1.Noise reduction box(CSPV)
