U s e d o n l y w h e n t h e n o i s e r e d u c t i o n c o v e r i s a t t a c h e d 防音カバー取付時のみ A B B A x 1 0 2 6 - 2 2 6 . 1 . カムボックス 3 ( C S P A ) 2 6 . 1 . C a m b o x 3 ( C S P A ) 2 6 . 1 . カムボックス 3 ( C S P A ) 2…
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
100
60
99
97
62
55
51
61
98
55
62
98
97
55
62
62
55
51
61
98
97
47
Used only when the noise reduction cover is attached
防音カバー取付時のみ
51
61
28,96
29
55
62
68
67
54
62
30
31
62
57
58
63
32
34
47
45
43
56
62
89
91
87,95
88
92
90
94
93
39
62
53
74
62
53
49
60
42
38
53
62
47
52
61
40
46
41
46
41
37
53
62
44
48
80
45
56
64
101
101
45
58
63
33
77
60
76
78
75
62
53
78
79
41
35
53
62
52
61
40
46
46
41
65
53
62
A
B
B
A
x10
26 - 1

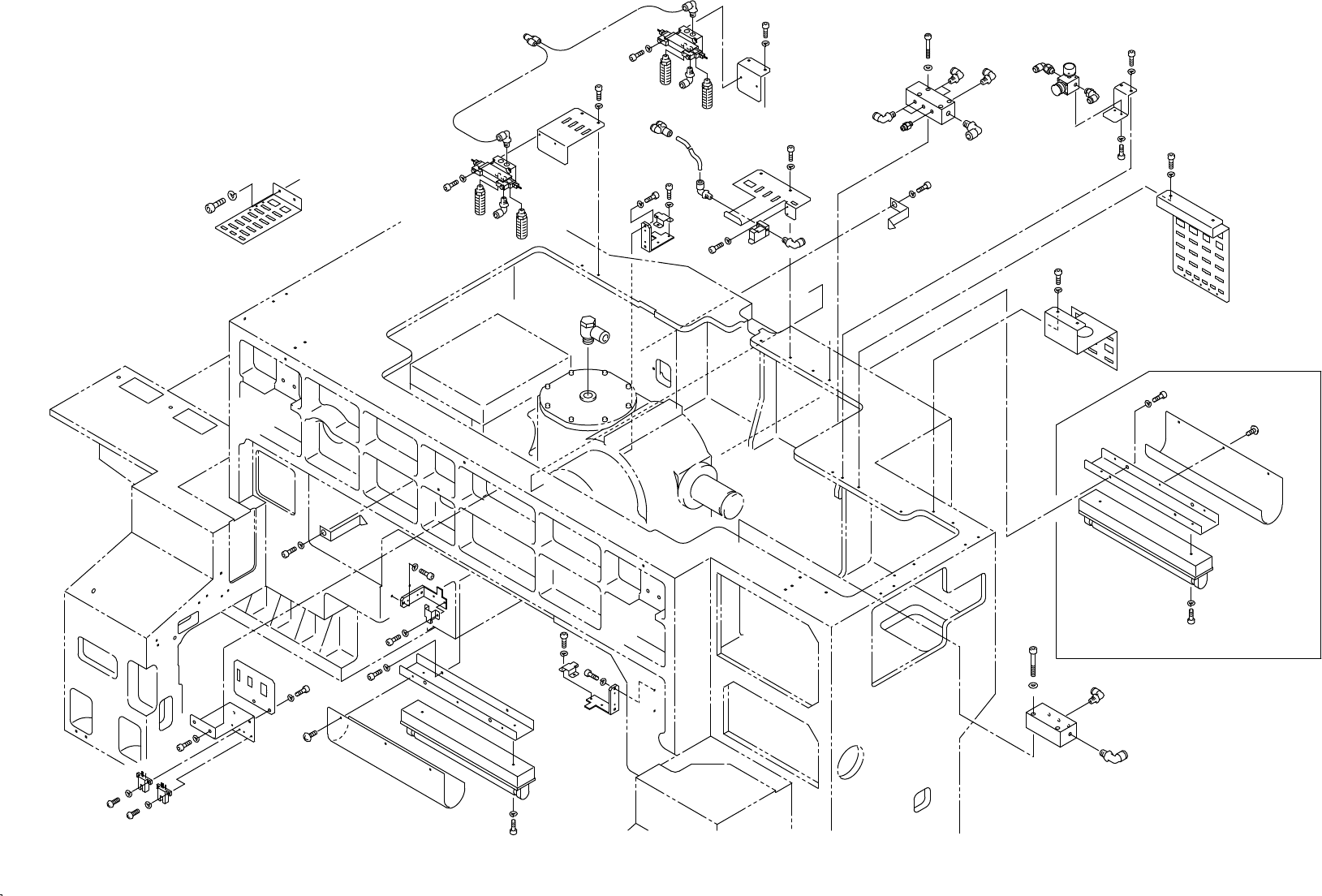

26.1.カムボックス 3(CSPA)
26.1.Cam box 3(CSPA)
26.1.カムボックス 3(CSPA)
26.1.Cam box 3(CSPA)
CP-643E PARTS LIST
Used only when the noise reduction cover is attached
防音カバー取付時のみ
A
B
B
A
x10
26 - 2
26.1.カムボックス 3(CSPA)
26.1.Cam box 3(CSPA)
26.1.カムボックス 3(CSPA)
26.1.Cam box 3(CSPA)
CP-643E PARTS LIST
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
3.9N.m
LOCTITE572
LOCTITE572
LOCTITE572
LOCTITE572
LOCTITE572
LOCTITE572
26.1.ｶﾑﾎﾞｯｸｽ3(CSPA)
26.1.Cam box 3(CSPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
28 S2010K 1 LAMP (Select parts) ﾗﾝﾌﾟ(選択部品) FT-11001 (60HZ) 注1. Note.1 OT
29 MPA3540 1 PLATE, RETAINER ﾌﾟﾚｰﾄ 押え 注1. Note.1 FE
30 WPA0521 1 BKT, SW BKT SW FE
31 CSWZ0060 1 PLATE ﾌﾟﾚｰﾄ FE
32 WPA0470 1 NAMEPLATE, ARROW 銘板 矢印 FE
33 WPA0462 1 NAMEPLATE, ARROW 銘板 矢印 FE
34 WPA5130 1 JOINT, ROTARY ｼﾞｮｲﾝﾄ ﾛｰﾀﾘ OT
35 WWZ0331 1 PLATE ﾌﾟﾚｰﾄ FE
37 WWZ0320 1 BKT BKT FE
38 WPA1840 1 BKT BKT FE
39 CSWZ0051 1 PLATE ﾌﾟﾚｰﾄ FE
40 H1067F 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL A12PD25-1S-02-E OT
41 S1053T 4 SILENCER ｻｲﾚﾝｻ KM-23 OT
42 H10246 1 VALVE, PRESSURE REDUCING ﾊﾞﾙﾌﾞ 減圧 R002-01G OT
43 WPI0010 1 TERMINAL ﾀｰﾐﾅﾙ AL
44 WPI0020 1 TERMINAL ﾀｰﾐﾅﾙ AL
45 A4043A 6 ELBOW ｴﾙﾎﾞ PL6-01(1/8) OT
46 A4045A 6 ELBOW ｴﾙﾎﾞ PL6-02(1/4) OT
47 A4045Z 3 ELBOW ｴﾙﾎﾞ PL8-01(1/8) OT
48 A4046A 1 ELBOW ｴﾙﾎﾞ PL8-02(1/4) OT
49 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L FE
51 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
52 H5293A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X25L FE
53 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L FE
54 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L FE
55 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
56 H5309A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X50L FE
57 H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L FE
58 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L FE
60 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
61 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
62 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
63 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
64 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L FE
65 WWZ0281 1 PLATE ﾌﾟﾚｰﾄ FE
67 K5209A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X8L FE
68 MPA3531 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ 注1. Note.1 PL
74 WWZ0312 1 PLATE ﾌﾟﾚｰﾄ FE
75 CSWZ0070 1 PLATE ﾌﾟﾚｰﾄ FE
76 H1083T 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL SS22J-M5-D24UP-Z OT
77 H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L FE
CP-643E PARTS LIST
26 - 3
26.1.ｶﾑﾎﾞｯｸｽ3(CSPA)
26.1.Cam box 3(CSPA)
