31.1.ｲﾝｷｬﾘｱ(CSQC) 31.1.In carrier(CSQC) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 3 CSQC5102 1 CLAMPER ｸﾗﾝﾊﾟ X-No.787∼ FE 4 CSQC4113 1 CLAMPER ｸﾗﾝﾊﾟ X-No.787∼ F…

100%1 / 247
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
109
110
107
109
110
107
112
12
113
109
110
110
109
110
110
108
109
107
12
107
109
108
111
111
111
111
111
111
111
71
92
106
101
85
85
101
85
101
85
101
85
101
85
101
85
85
85
100
71
79
71
79
100
92
92
100
71
79
92
105
79
111
92
100
79
71
92
79
71
92
92
105
86
85
89
85
85
89
85
66
101
85
101
85
101
85
101
85
101
85
101
85
94
85
81
80
10
82
81
80
82
81
80
10
82
81
82
80
76
76
79
71
79
71
94
66
66
85
63
62
102
102
31
31
101
31
31
31
31
31
101
31
31
31
31
31
101
26
101
27
29
26
86
21
21
20
20
92
19
19
85
18
106
18
100
100
100
100
92
10
10
9
101
58
9
101
9
105
101
105
8
7
101
4
3
x5
A
B
A
B
B
A
31 - 1

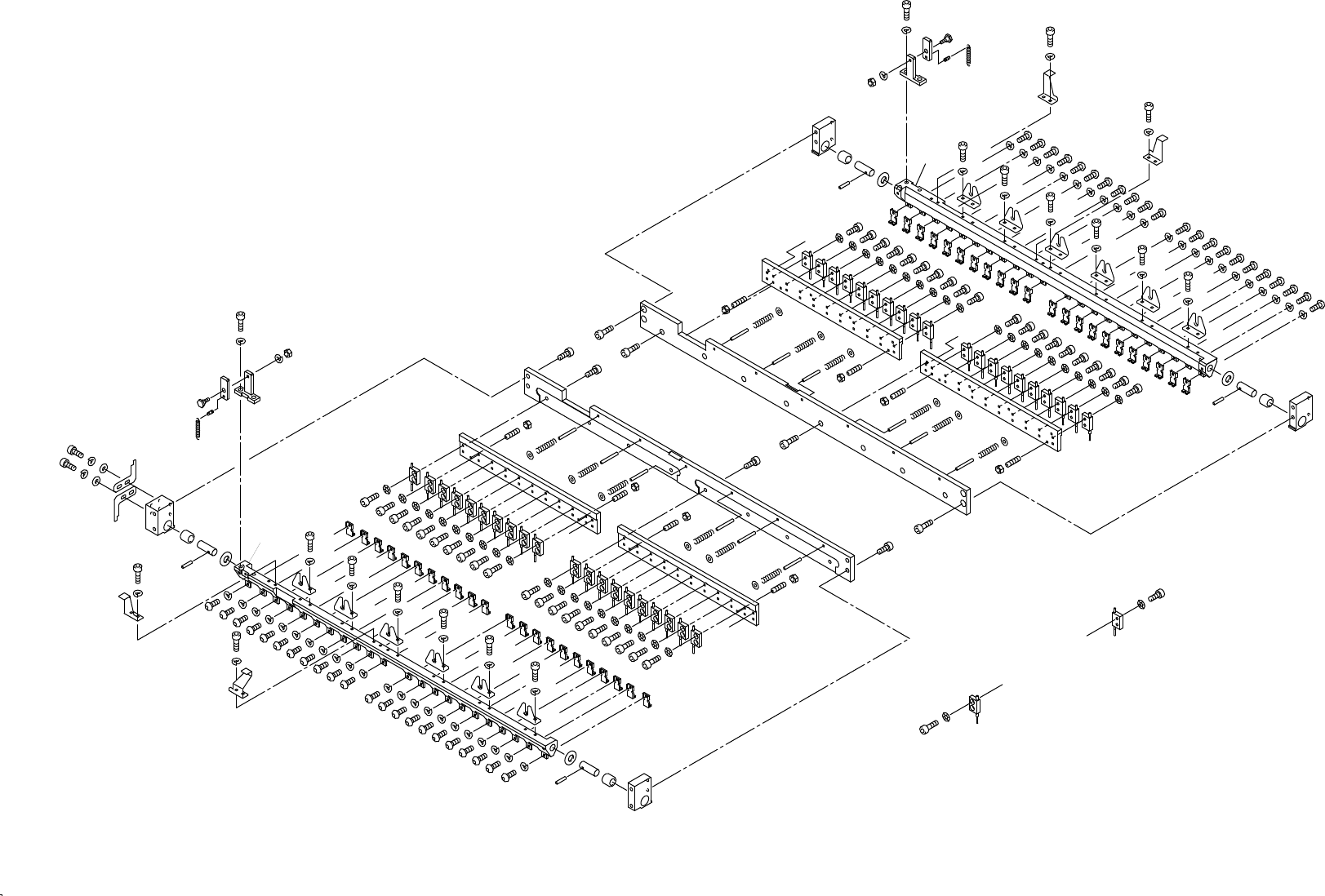

31.1.インキャリア(CSQC)
31.1.In carrier(CSQC)
31.1.インキャリア(CSQC)
31.1.In carrier(CSQC)
CP-643E PARTS LIST
31.1.ｲﾝｷｬﾘｱ(CSQC)
31.1.In carrier(CSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
3 CSQC5102 1 CLAMPER ｸﾗﾝﾊﾟ X-No.787∼ FE
4 CSQC4113 1 CLAMPER ｸﾗﾝﾊﾟ X-No.787∼ FE
7 CSQC4145 1 PLATE ﾌﾟﾚｰﾄ FE
8 CSQC4154 1 PLATE ﾌﾟﾚｰﾄ FE
9 CSQC4160 3 HOLDER ﾎﾙﾀﾞ FE
10 CSQC4171 4 PIN, PIVOT ﾋﾟﾝ 支点 FE
12 CSQC5162 2 PLATE ﾌﾟﾚｰﾄ X-No.787∼ AL
18 CSQC4290 2 BKT BKT FE
19 CSQC4300 2 BLOCK ﾌﾞﾛｯｸ FE
20 CSQC4310 2 PIN ﾋﾟﾝ FE
21 CSQC4321 4 HOOK, SPRING ﾌｯｸ ｽﾌﾟﾘﾝｸﾞ FE
26 CSQC4521 2 DOG ﾄﾞｯｸﾞ FE
27 CSQC4531 1 DOG ﾄﾞｯｸﾞ FE
29 CSQC4561 1 DOG ﾄﾞｯｸﾞ FE
31 CSQC4590 12 BKT BKT FE
58 CSQC4880 1 HOLDER ﾎﾙﾀﾞ FE
62 CSQC4920 1 DOG ﾄﾞｯｸﾞ FE
63 CSQC4930 1 DOG ﾄﾞｯｸﾞ FE
66 CSQC5371 44 JAW 爪 FE
71 S30205 12 SPRING ｽﾌﾟﾘﾝｸﾞ WR6-25 FE
76 S30207 2 SPRING ｽﾌﾟﾘﾝｸﾞ AWS4-20 FE
79 H2053A 12 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 3ﾟX25L FE
80 H4403A 4
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA810Z FE
81 H2031A 4 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 3ﾟX14L FE
82 W1001Y 4
WASHER
ﾜｯｼｬ 70W-0815 FE
85 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
86 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
89 W1042A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-3 FE
92 N1076A
NUT, HEX
ﾅｯﾄ 六角 M3 P=0.5 FE
94 K5255H
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X5L FE
100 N4024A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め M3X12L FE
101 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X6L FE
102 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X8L FE
105 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X8L FE
106 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10L FE
107 ADCQK8010 40 PIN, CLAMP ﾋﾟﾝ ｸﾗﾝﾌﾟ OT
108 ADCQK8020 4 PIN, CLAMP ﾋﾟﾝ ｸﾗﾝﾌﾟ OT
109 H5273A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X5L FE
110 W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L FE
111 W1061E 12
WASHER, FLAT
ﾜｯｼｬ 平         
M4ﾖｳｶﾞｲｹｲﾟ10ﾎﾟﾘｶｰﾎﾞﾈｰﾄ FE
112 CSQC5142 1 PLATE ﾌﾟﾚｰﾄ AL
CP-643E PARTS LIST
31 - 2
31.1ｲﾝｷｬﾘｱ(CSQC)
31.1 In carrier(CSQC)
31.1.ｲﾝｷｬﾘｱ(CSQC)
31.1.In carrier(CSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
113 CSQC5152 1 PLATE ﾌﾟﾚｰﾄ AL
CP-643E PARTS LIST
31 - 3
31.1ｲﾝｷｬﾘｱ(CSQC)
31.1 In carrier(CSQC)
