8.1.Yｽﾗｲﾄﾞ(CSSY)
8.1.Y slide(CSSY)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
2 WSY4030 2 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT
3 WSY3081 1 CATCH PAN 受け皿
4 WSY4091 1 HOLDER ﾎﾙﾀﾞ FE
5 WSY4111 1 HOLDER ﾎﾙﾀﾞ FE
7 CSSY0141 1 HOLDER ﾎﾙﾀﾞ X-No.787∼ FE
8 CSSY0100 1 PLATE ﾌﾟﾚｰﾄ FE
9 CSSY0110 2 TUBE ﾁｭｰﾌﾞ OT
10 CSSY0342 1 BKT BKT X-No.787∼ FE
11 CSSY0330 1 COVER ｶﾊﾞｰ FE
12 CCSY0290 1 BKT BKT X-No.787∼ FE
13 WSY4318 1 SLIDE, Y-AXIS ｽﾗｲﾄﾞ Y軸 AL
14 WSY4321 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
15 CSSY0222 1 BKT, MOTOR BKT ﾓｰﾀ AL
16 WSY4340 1 COVER, BEARING 蓋 ﾍﾞｱﾘﾝｸﾞ FE
17 WSY4351 1 COVER ｶﾊﾞｰ FE
18 CSSY0232 1 BKT, SUPPORT BKT 支え 注2. Note.2 AL
20 WSY4380 1 CATCH PAN 受け皿 FE
22 CSSY0200 1 BKT BKT X-No.1087∼ FE
23 CSSY0060 1 BLIND ﾌﾞﾗｲﾝﾄﾞ FE
24 CSSY0070 1 BLIND ﾌﾞﾗｲﾝﾄﾞ FE
25 WSY4430 1 COUPLING ｶｯﾌﾟﾘﾝｸﾞ OT
26 WSY4440 1 COLLAR ｶﾗｰ FE
27 IPB0431 4 COLLAR ｶﾗｰ FE
28 IPB5230 4 STOPPER ｽﾄｯﾊﾟ PL
29 SAM6351 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ SGMSH-20ACA-FJ21 OT
32 H4217Z 1
BEARING
ﾍﾞｱﾘﾝｸﾞ 7004CDBC8P5 FE
33 N1025Z 1
NUT, LOCK
ﾅｯﾄ ﾛｯｸ ZM020 FE
34 WSY4460 2
COVER, SCREW
ｶﾊﾞｰ ｽｸﾘｭｳ OT
35 K4138N 1
FLEXIBLE TRACK
ｹｰﾌﾞﾙﾍﾞｱ 250.03-055-13-2030.12P OT
36 H4181A 1
BEARING
ﾍﾞｱﾘﾝｸﾞ 6003ZZ FE
38 H5285A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X5L FE
40 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10L FE
41 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X12L FE
42 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X15L FE
43 H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X25L FE
44 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X15L FE
45 H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X20L FE
47 H5323A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X18L FE
48 H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X20L FE
49 .
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X25L FE
51 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
CP-643E PARTS LIST
8 - 3
8.1.Yｽﾗｲﾄﾞ(CSSY)
8.1.Y slide(CSSY)
8.1.Yｽﾗｲﾄﾞ(CSSY)
8.1.Y slide(CSSY)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
52 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
53 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
54 W1043A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-4 FE
55 W1044A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-5 FE
56 W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L FE
58 W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-6-H FE
59 K5361T
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M5X12L FE
61 K5203A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ        M3X6L FE
63 K5257A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ    M4X8L FE
64 K5261A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ    M5X10L FE
65 K5261T
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ    M5X15L FE
67 N1082A
NUT, HEX
ﾅｯﾄ 六角 M5 P=0.8 FE
68 WSD0620 2 SPACER ｽﾍﾟｰｻ t=1.00 注1. Note.1 FE
74 CSSY0300 1 BKT BKT X-No.787∼ FE
75 WSY4530 2 BKT BKT FE
76 .
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め M4X16L FE
77 N1080A
NUT, HEX
ﾅｯﾄ 六角 M4 FE
78 WSY4540 2 SPACER ｽﾍﾟｰｻ FE
79 CSSY0240 1 BKT BKT FE
80 CSSY0031 1 SEAL ｼｰﾙ PL
82 H3145L 1 PLUG ﾌﾟﾗｸﾞ KQ2P-06 OT
83 Y3066X 2 UNION ﾕﾆｵﾝ KQ2E06-01 X-No.787∼ OT
84 K50764 1 CONNECTOR ｺﾈｸﾀ KQ2U06-01S X-No.787∼ OT
85 H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X12L FE
86 CSSY0180 1 BKT BKT X-No.787∼ FE
87 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X8L FE
88 H5301A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X18L FE
89 Y3079H 3 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-99 X-No.787∼ OT
90 Y3082C 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2VD06-01S X-No.787∼ OT
91 H2075A 2 PIN, TAPER ﾋﾟﾝ ﾃｰﾊﾟ OT
92 CSSY0280 1 BKT BKT FE
93 CSSY0360 1 COVER ｶﾊﾞｰ FE
94 CSSY0322 1 BKT BKT FE
95 CSSY0351 1 BKT BKT FE
96 CSSS1460 1 COVER ｶﾊﾞｰ FE .
注1.仕様選択部品 WSD0710(t=0.95),WSD0720(t=1.05),WSD0730(t=1.10),WSD0740(t=0.975),WSD0750(t=1.025)
Note.1 : (Specified part selection) WSD0710(t=0.95),WSD0720(t=1.05),WSD0730(t=1.10),WSD0740(t=0.975),WSD0750(t=1.025)
注2.(15) BKTﾓｰﾀと(18) BKT支えは組み合わせ部品ですので同時に交換してください｡
Note.2 : The bkt motor No.15 and the bkt support No.18 are used as set.
If the replacement of one of the bkt is necessary both must be replaced.
CP-643E PARTS LIST
8 - 4
8.1.Yｽﾗｲﾄﾞ(CSSY)
8.1.Y slide(CSSY)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
0.5 1 2 10
X7
37
50
1
1
50
37
6
44
57
66
59
8
53
46
46
53
8
39
51
21
60
31
30
60
67
51
68
9
31
60
1
37
50
1
37
50
1
37
50
37
50
1
46
53
8
46
53
8
6
57
44
66
59
8 - 5

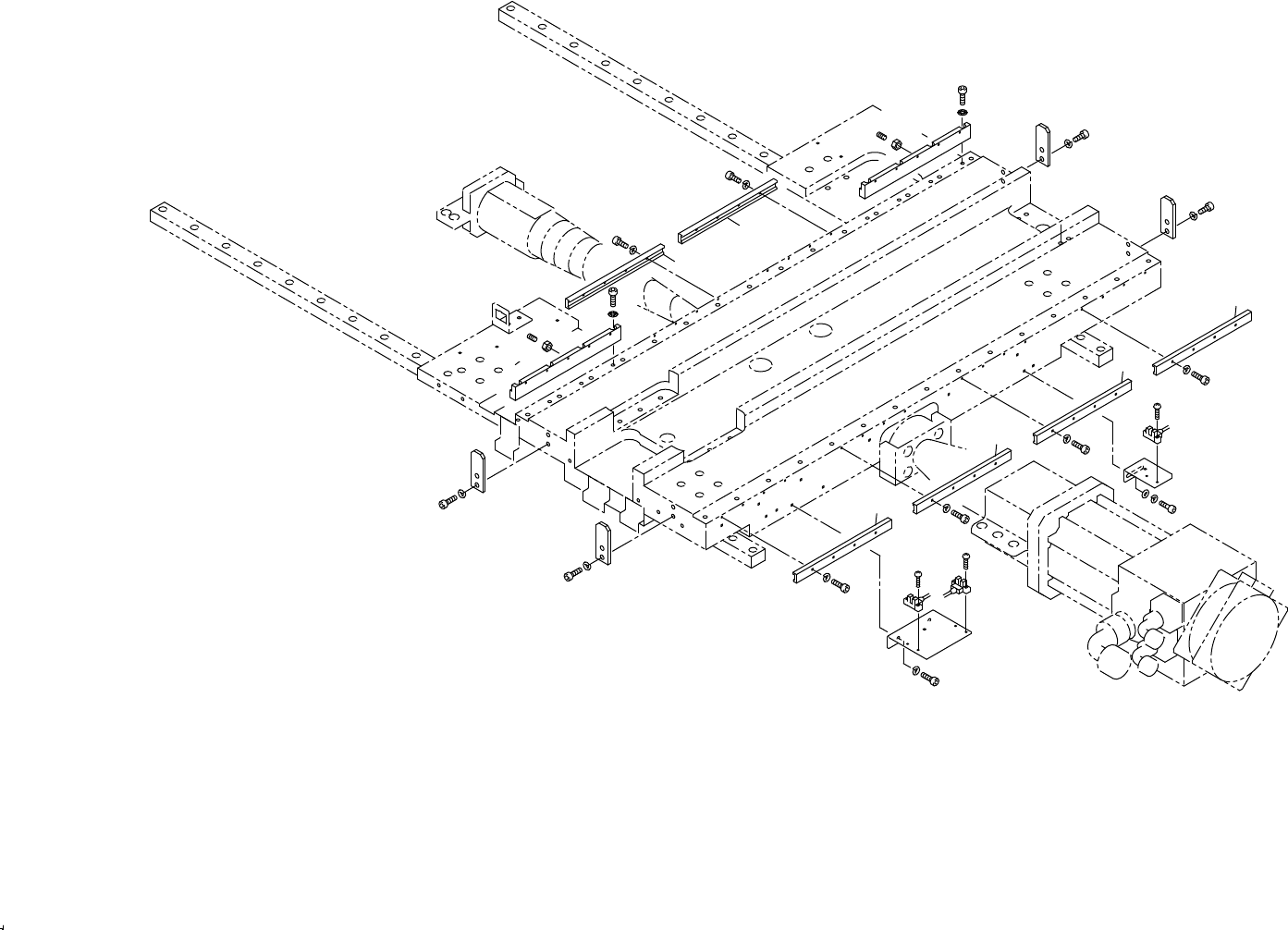

8.2.Ｙ スライド(CSSY)
8.2.Ｙ slide(CSSY)
8.2.Ｙ スライド(CSSY)
8.2.Ｙ slide(CSSY)
CP-643E PARTS LIST
