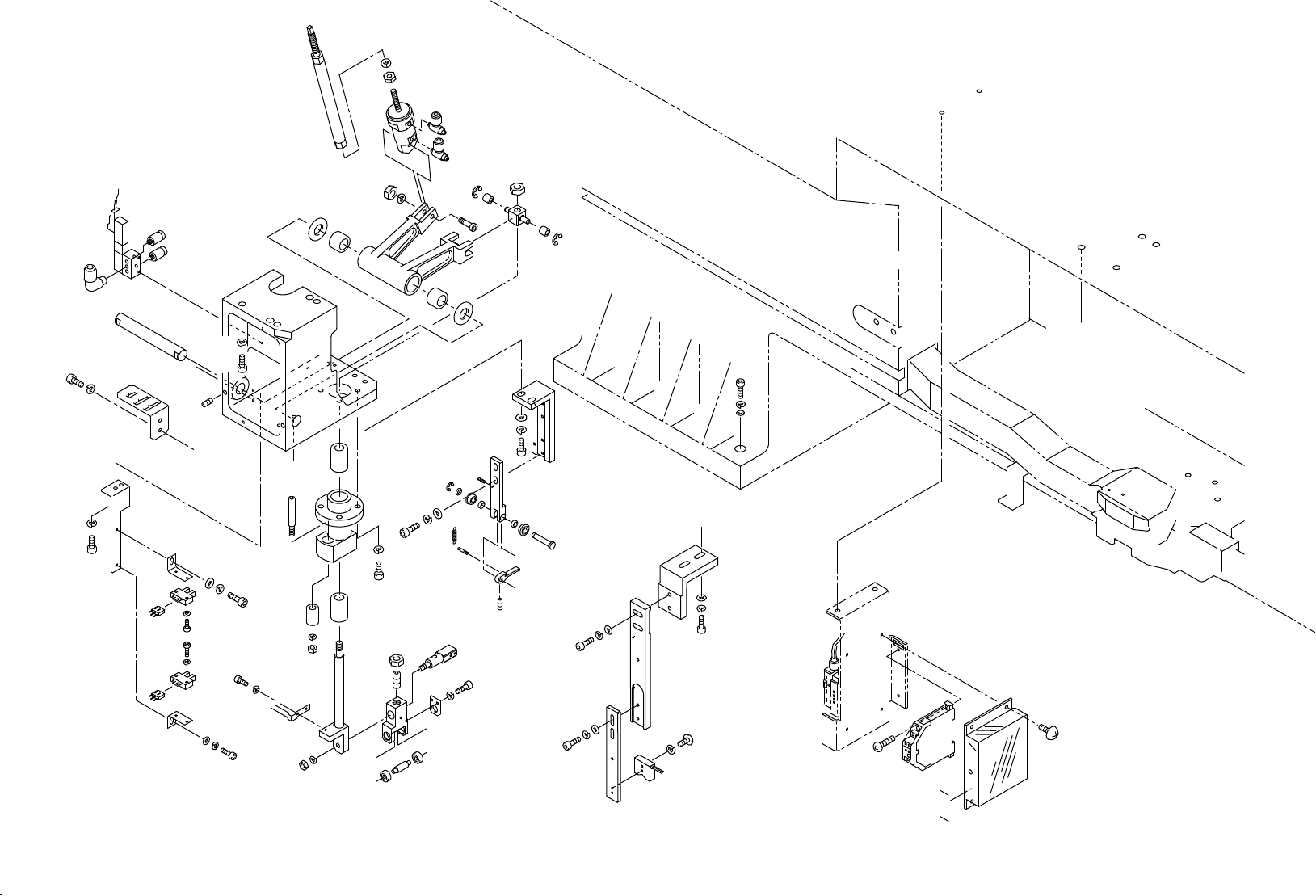

11.ﾌｨｰﾀﾞﾁｪｯｸｾﾝｻ(CSGZ)
11.Feeder check sensor(CSGZ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
47 H2025A 4 PIN, SNAP ﾋﾟﾝ ｽﾅｯﾌﾟ SSP-5 OT
48 S4040Z 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX406-W2A OT
49 WGZ1070 2 BOLT, ADJUSTING ﾎﾞﾙﾄ ｾﾘ FE
51 H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L FE
52 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
53 H5294A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X30L FE
54 H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L FE
55 H5242A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X25L FE
56 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
57 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
58 WGZ2061 1 BKT BKT FE
59 WGZ2050 1 BKT BKT FE
60 H5302A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X20L FE
61 WGZ2020 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
62 S4040X 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A OT
63 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L FE
64 WGZ2030 1 HOLDER ﾎﾙﾀﾞ FE
65 WGZ2010 1 DOG ﾄﾞｯｸﾞ FE
66 WGZ0370 1 LEVER ﾚﾊﾞｰ X-No.822∼ PL
67 WGZ2070 1 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え FE
68 WPL0113 1 PIN ﾋﾟﾝ FE
70 H3166H 1 PLUNGER, BALL ﾌﾟﾗﾝｼﾞｬ ﾎﾞｰﾙ BST-8 OT
71 N1089A NUT, HEX ﾅｯﾄ 六角 M8 P=1.25 FE
72 WGZ1341 1 GUIDE ｶﾞｲﾄﾞ AL
73 WGZ1351 1 GUIDE ｶﾞｲﾄﾞ AL
74 WGZ2120 1 LEVER ﾚﾊﾞｰ PL
75 WGZ2100 1 PIN ﾋﾟﾝ FE
76 N4047A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M6X10L FE
77 S1021A 1 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-3 FE
78 WGZ1370 1 BKT, SENSOR BKT ｾﾝｻ FE
79 H4116T 4 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ SST-1260 FE
80 WGZ1421 1 BKT BKT FE
81 WGZ1430 1 HOLDER ﾎﾙﾀﾞ FE
82 WGZ1440 1 BKT BKT FE
83 WGZ1391 4 SPRING ｽﾌﾟﾘﾝｸﾞ FE
84 WGZ1400 4 STOPPER ｽﾄｯﾊﾟ FE
85 H5292A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X20L ･ FE
CP-643E PARTS LIST
11 - 4
11.ﾌｨｰﾀﾞﾁｪｯｸｾﾝｻ(CSGZ)
11.Feeder check sensor(CSGZ)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
0.5 1 2 10
66
63
74,75,76
64
65
62
45
57
81
46
49
78
61
59
60
58
59
60
55
79
49
46
42
18
20
72
16
30
69
70
71
17
71
70
19
15
43
47
50
14
21
41
46
40
45
37
36
41
46
49
22
41
46
49
22
37
36
45
40
51
47
28
13
28
39
45
12
11
38
45
23
77
27
80
24
51
47
26
25
43
47
8
9
25
42
46
73
33
67
68
3
53
44
48
1
4
31
31
4
2
52
29
35
7
35
29
5
51
47
34
34
32
51
47
6
x5.5
B
B
A
A
82
84
83
12 - 1
12.第1ｽﾃｰｼｮﾝ(ﾊﾟｰﾂ吸着)(WPL)
12.Station 1(Parts pick up)(WPL)
12.第1ｽﾃｰｼｮﾝ(ﾊﾟｰﾂ吸着)(WPL)
12.Station 1(Parts pick up)(WPL)
CP-643E PARTS LIST
x5.5
B
B
A
A
12 - 2
12.第1ｽﾃｰｼｮﾝ(ﾊﾟｰﾂ吸着)(WPL)
12.Station 1(Parts pick up)(WPL)
12.第1ｽﾃｰｼｮﾝ(ﾊﾟｰﾂ吸着)(WPL)
12.Station 1(Parts pick up)(WPL)
CP-643E PARTS LIST
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
3.9N.m
LOCTITE222
LOCTITE222
LOCTITE601
LOCTITE262
LOCTITE262
LOCTITE601
LOCTITE601
LOCTITE222
