You will need a waste bin, a collecting container and a vacuum cleaner with appropriate nozzle for
the daily cleaning jobs. 5
5
5

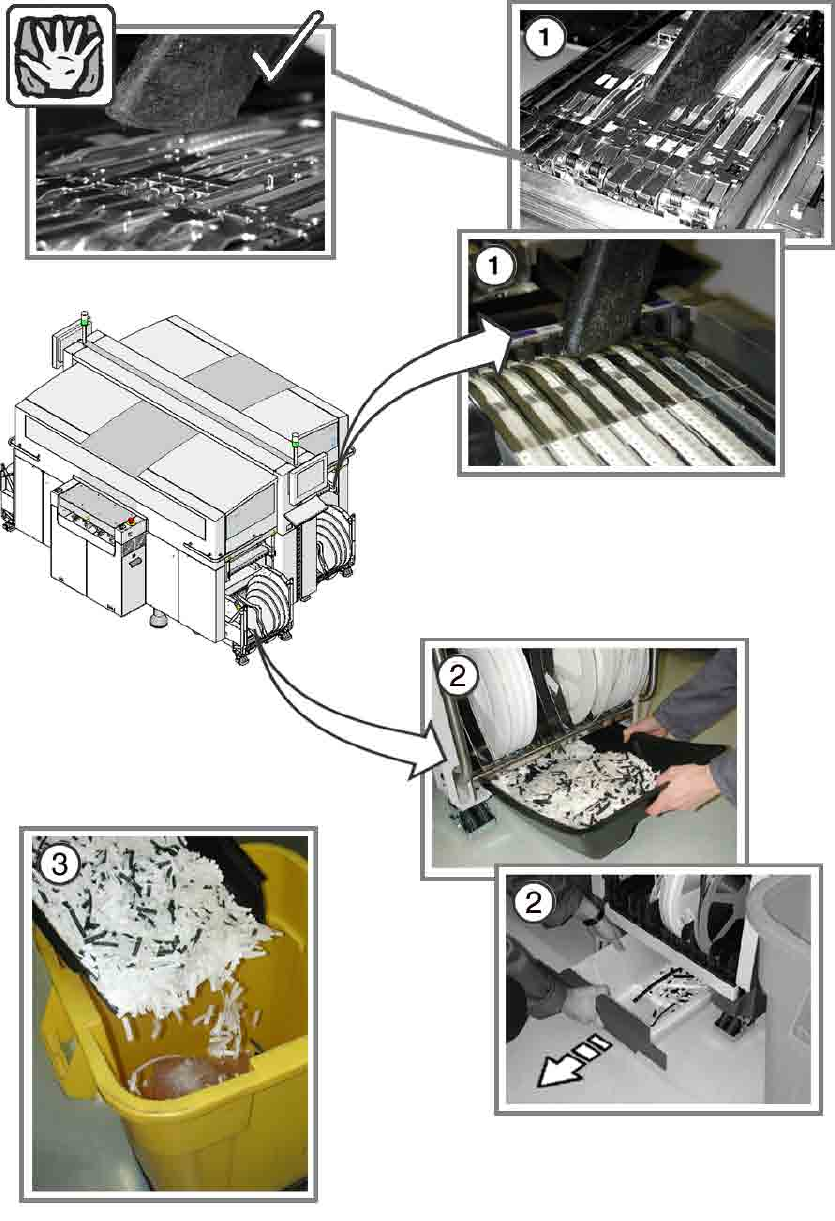

Carry out the cleaning jobs in the order shown in the graphic to minimize down times. 5
5
: Press the Stop button at the first station if the gantry is over the placement position.
This will stop it outside your working area.
5
: Open the protective cover.
5
Empty the reject bin 5
a Remove the reject bin and empty it into the collecting container.
5
We recommend that you empty the reject bin every day, since this will show whether a certain
component is being rejected frequently. Determine the cause of the error using the Track Error
menu or OIS. 5
5
s Clean around the reject bin with the vacuum cleaner and replace the bin.
5
The inside of the placement machine should be free of loose components since these can cause
faults if they get caught between moving parts. 5
5
5
Vacuum the nozzle changer 5
Keep the vacuum cleaner nozzle at least 1 cm away from the nozzles to prevent any damage. 5
5
5
d Vacuum the nozzle changers for the Collect&Place and the Pick&Place head.
5
The nozzle changers should be free of dirt and loose components since these could prevent noz-
zles being picked up and set down correctly. 5
