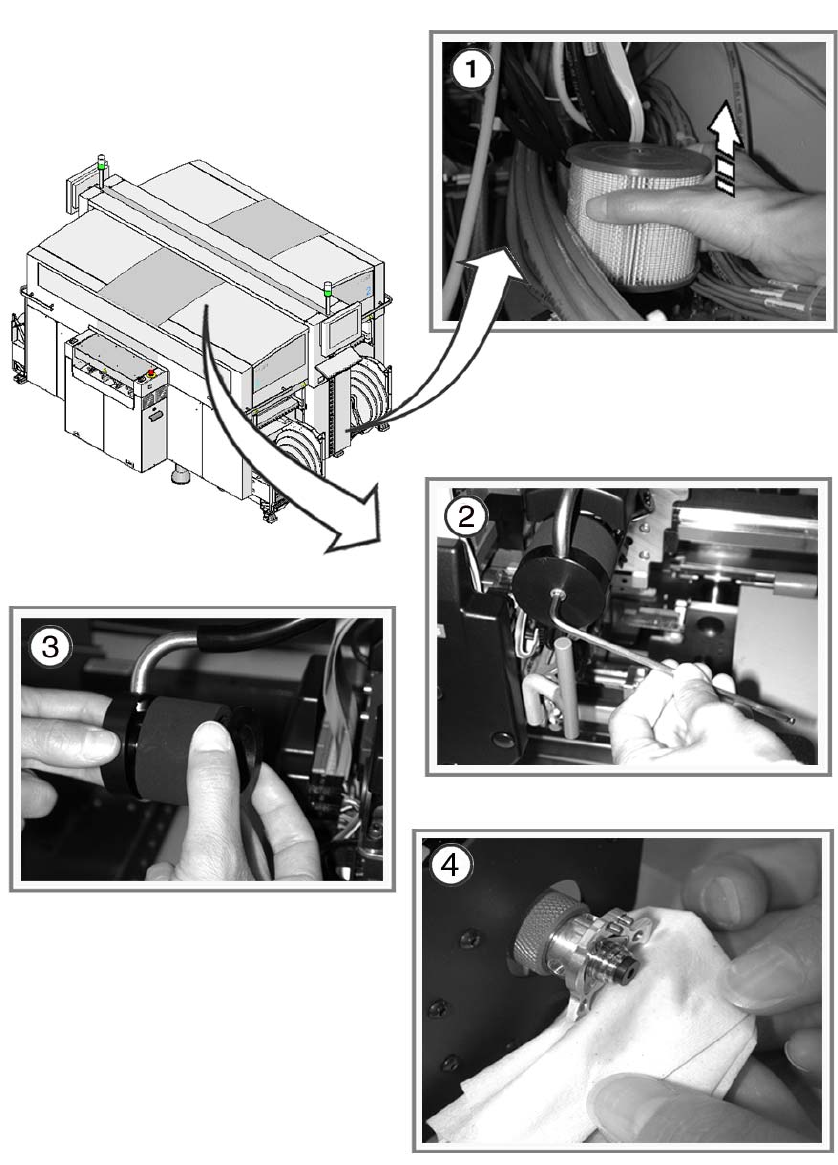

Check or replace the intake filter for cooling the Y motor 8
a Unscrew the wing screw over the intake filter and remove the filter.
: Replace the filter if it is dirty
.
8
: Push the compressed air supply carefully back into the machine base.
8
Be careful not to squash any cables or hoses. 8
8
8
: Close the flap valve to the compressed air supply.
: Open the main compressed air valve once more.
8
8
Inspect or replace the silencer 8
s Loosen the screw used to fix the Collect&Place head silencer.
d Check the sile
ncer
for dirt.
If it is discolored, replace the dirty filter with a new filter, an
d reverse the sequence described
above to fit.
8
8
Clean TwinHead sleeve and nozzle seating 8
f Use a lint-free cloth lightly sprayed with Teflon spray to clean the sleeve and nozzle seating.
: Carefully blow through the nozzle.
