SIPLACE D3 8 2-monthly maintenance jobs 08/2008 US Edition 45 V acuum the felt filter drawer unit s 8 a Remove the covers from the felt filter the drawer units . s Use an appropriate nozzle to vacuum the felt filters. : …
8 2-monthly maintenance jobs SIPLACE D3
08/2008 US Edition
44
8
SIPLACE D3 8 2-monthly maintenance jobs
08/2008 US Edition
45

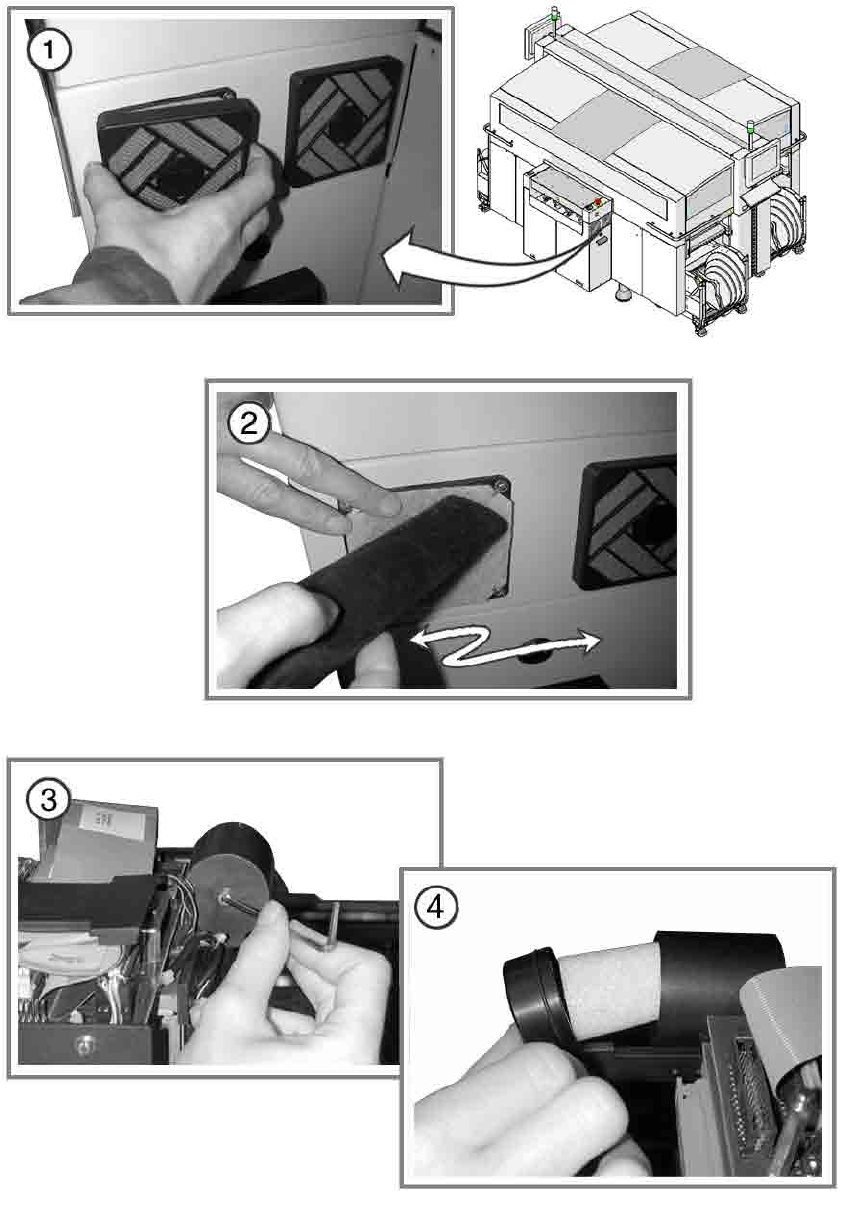

Vacuum the felt filter drawer units 8
a Remove the covers from the felt filter the drawer units.
s Use an appropriate nozzle to vacuum the felt filters.
: Check the filter
mats for dirt after cleaning them with a vacuum cleaner.
Replace them if they are very dirty.
: Replace any worn felt filters.
: Fit the covers.
: Repeat these tasks for all eight fans.
8
8
Check the filter element 40 µm 8
: Remove the protective cover from the relevant placement head.
d Loosen the screw in order to remove the casing of the filter element 40 µm.
f Check whether
the filter element is discolored.
If it is discolored, replace it with a new element.
: Fit the casing and the head cover.
: Check the filter
elements of all the placement heads.
8
8
: Close the protective covers.
8
9 4-monthly maintenance jobs SIPLACE D3
08/2008 US Edition
46
9 4-monthly maintenance jobs
9.1 Maintain the C&P 6 / 12 placement heads
Structure of the 12-segment Collect&Place head 9
s
a
g
f
d
9
Fig. 9.1 - 1 12-segment Collect&Place head, digital
(1) Vacuum generator
(2) Turning station, DP axis
(3) Star with 12 sleeves, DR axis
(4) Forced air valve
(5) Silencer
