SIPLACE D3 9 4-monthly maintenance jobs 08/2008 US Edition 51 Z axis (front p art of head) 9 a Use a brush or cottonwool bud to remove dirt from the Z axis toothed belt. : Clean the rollers, toothed whee ls and the tooth…

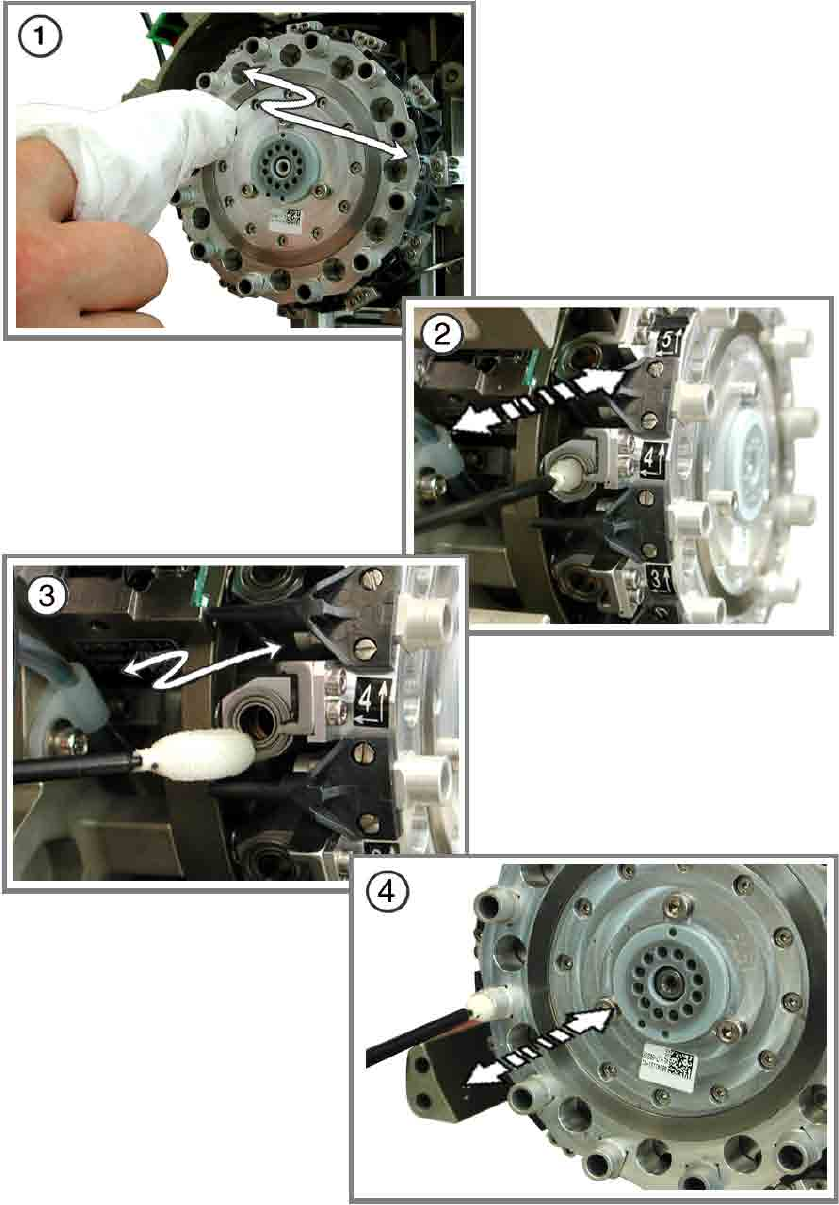

9 4-monthly maintenance jobs SIPLACE D3
08/2008 US Edition
50
9
SIPLACE D3 9 4-monthly maintenance jobs
08/2008 US Edition
51
Z axis (front part of head) 9
a Use a brush or cottonwool bud to remove dirt from the Z axis toothed belt.
: Clean the rollers, toothed wheels and the toothed belt with a cottonwool bud or a lint-free cloth.
: Check the to
othe
d belt for wear.
Replace the toothed belt if it shows sign
s of wear (see
servicing instructions).
: Lightly grease the toothed belt with ISOFLEX TOPAS NCA 52 and remove any excess grease.
9
s Check that the Z axis guide runs easily and without play.
: Check the jaws a
nd the ball race for damage.
Contact your regional Service Center if defects are identified in the Z axis, the jaws or the b
all
race.
9
Oil the recirculating ball guide (lower bearing) 9
: Move the Z axis into its bottom pos
ition.
d Clean the grooves in the miniature roller table front
and back using cottonwool buds dipped in
ethyl alcohol.
: Wipe the n
eedle of the oil dispenser clean.
Do not force oil out of the oil dispenser. A visible drop would be too much oil. 9
9
9
f Simply place the needle immediately beside the ball cage/bearing on the grooves of the guide
rail. The action will cause sufficient oil to reach the grooves (capillary effect).
: Move the Z axis up and down several ti
mes to distribute the film of oil.
9
