SIPLACE D3 9 4-monthly maintenance jobs 08/2008 US Edition 57 St ar brake 9 : Check the sta r brake for damage and to ensu re that it is working correctly . 9 a Wipe the st ar brake using a d ry , lint-free cloth. Make s…
9 4-monthly maintenance jobs SIPLACE D3
08/2008 US Edition
56
9
SIPLACE D3 9 4-monthly maintenance jobs
08/2008 US Edition
57

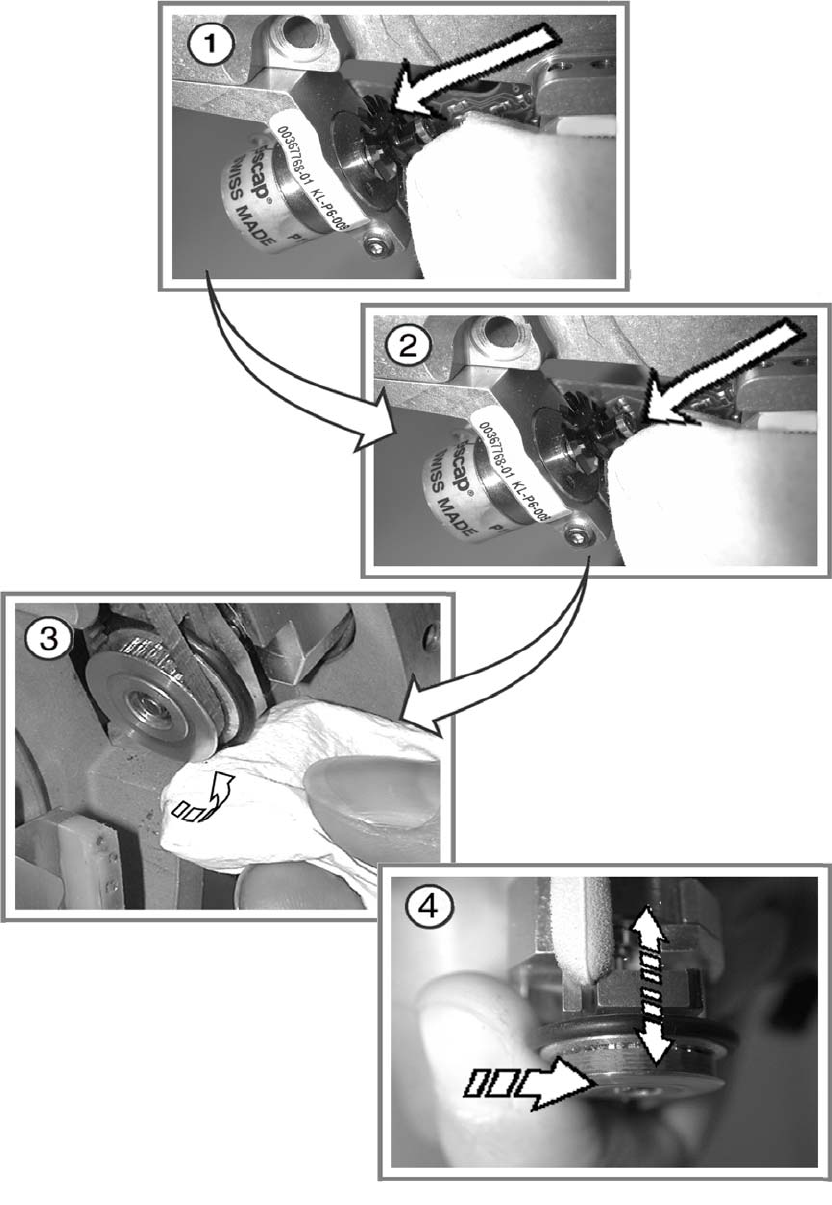

Star brake 9
: Check the sta
r brake for damage and to ensure that it is working correctly.
9
a Wipe the star brake using a dry, lint-free cloth. Make sure that you remove all grease residues.
: Fill each of the three small holes
in the star brake with ISOFLEX TOPAS NCA 52.
s Remove excess grease with a lint-free cloth.
9
: Apply a thin film of grease to the surface of the star brake.
9

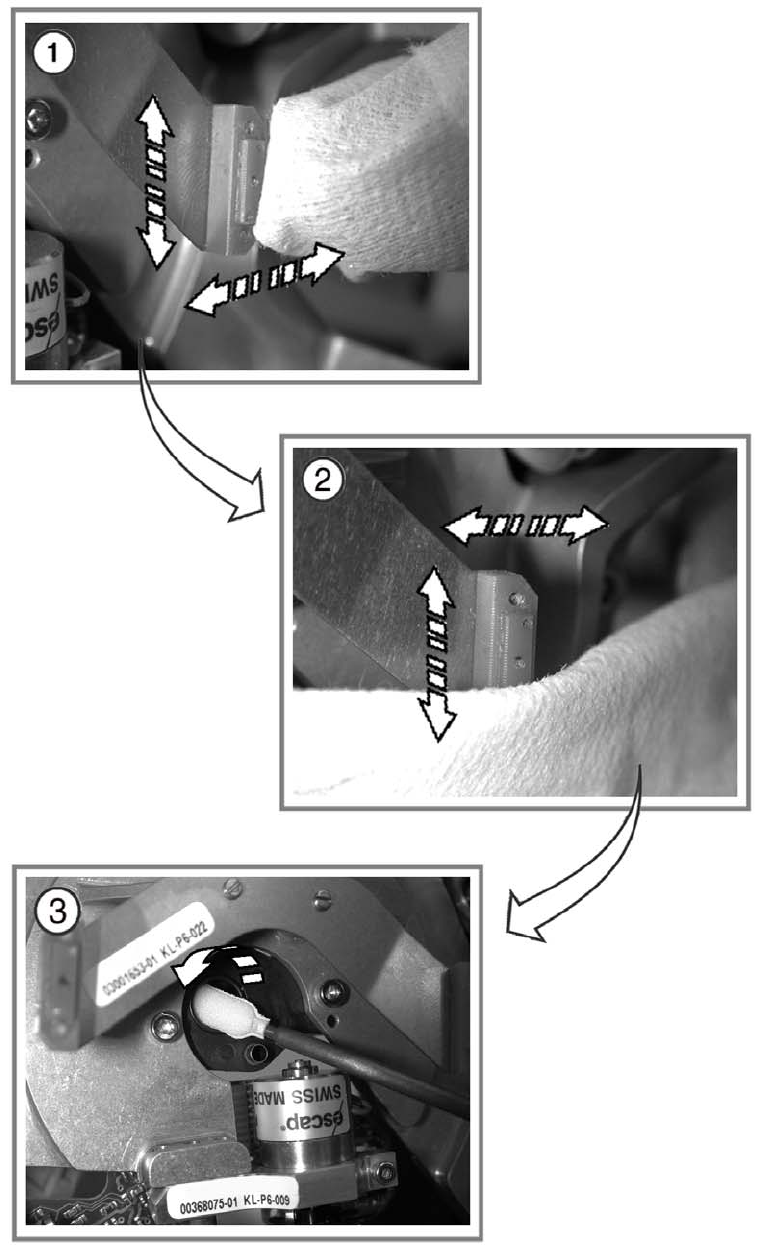

Distributor seat 9
d Clean the distributor seat with a cottonwool bud moistened with ethyl alcohol.
9
Make sure that you do not push dirt into the vacuum opening with the cottonwool bud. 9
9
9
9
9
9
9
9
9
9
9
9 4-monthly maintenance jobs SIPLACE D3
08/2008 US Edition
58
