10.1 Maintain the TwinHead
10
SIPLACE D3 10 Annual maintenance work
08/2008 US Edition
79
10
To maintain the TwinHead, you will need: 10
– Set of hexagon socket spanners
– Lint-free cloths
– Ethyl alcohol
– Compressed air
– ESD wriststrap.
10
10
Dismantle the TwinHead 10
: Stop the placement process and place the TwinHead nozzles on one side.
: Dock out the component trolley
fr
om the placement machine.
: Switch the p
lacement machine off at the main switch.
10
Rebuilding is easiest if done from locations 2 and 4. 10
10
10
10
Wear an ESD wrist strap for the whole time you are working on the placement head and the ser-
vos. 10
10

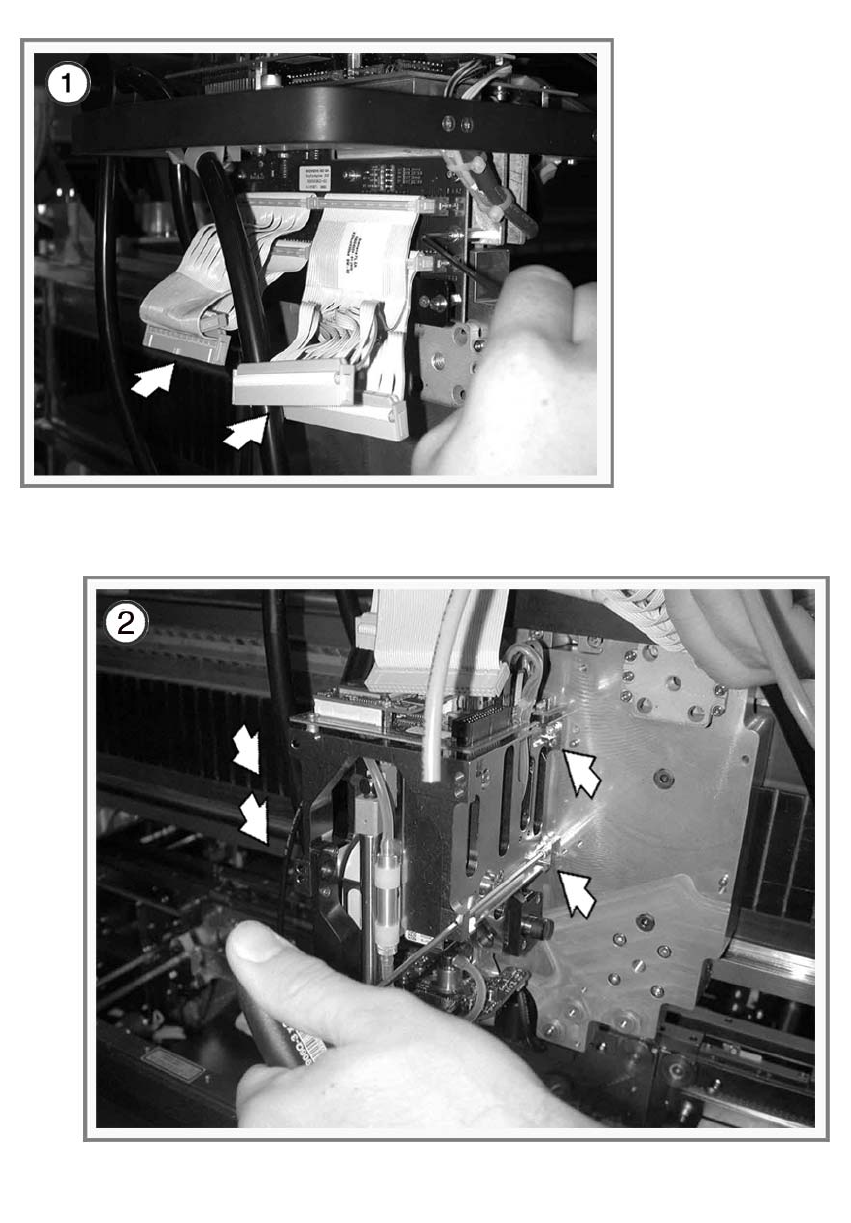

a Unplug the exhaust hoses.
10
s Place the hoses and the blanking plug on one side.
10

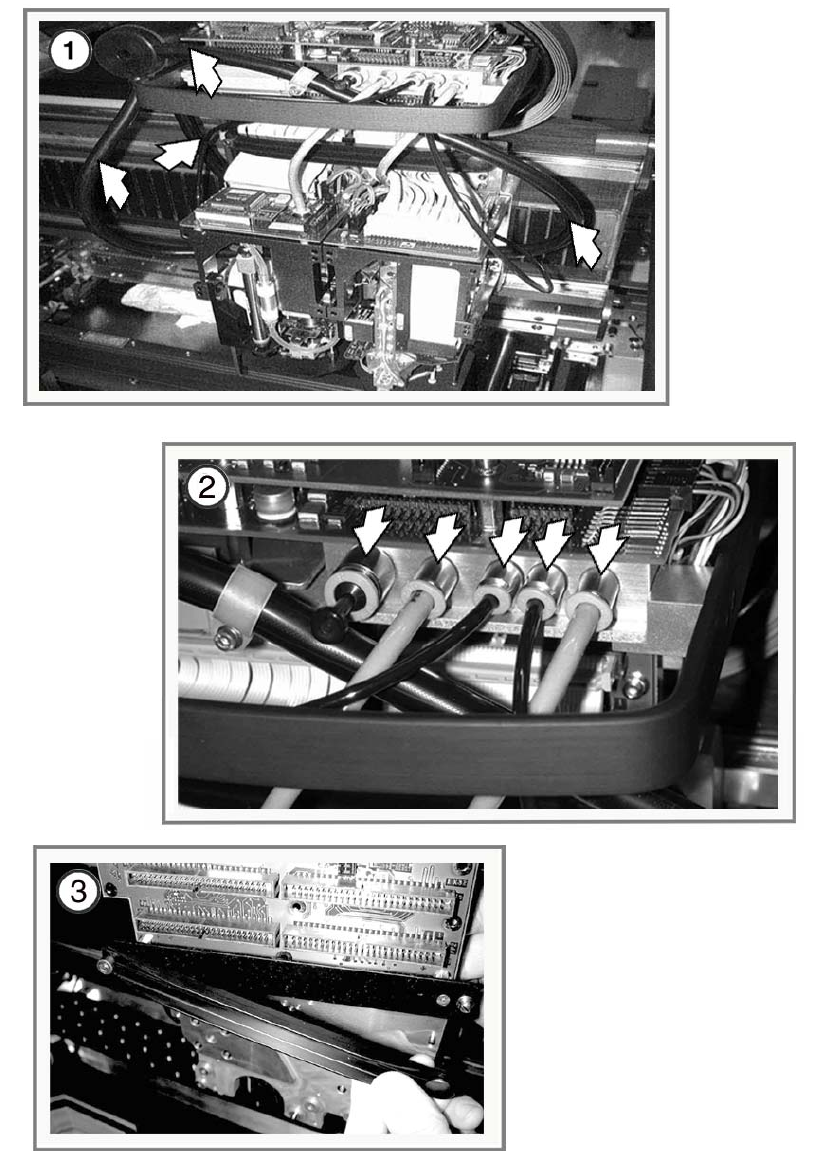

d Release the strain relief clip (press the knob).
10
10
