11 Maintain the sleeves SIPLACE D3
08/2008 US Edition
92
11
SIPLACE D3 11 Maintain the sleeves
08/2008 US Edition
93
a Carefully clean the edge of the sleeve using a lint-free cloth moistened with ethyl alcohol.
11
s Clean the incremental disk of the sleeve using a lint-free cloth moistened with ethyl alcohol.
11
d Carefully clean the shaft of the sleeve using a lint-free cloth moistened with ethyl alcohol.
11
f Carefully clean the circumference of the ball catch with a cottonwool bud moistened with ethyl
alcohol.
11
11

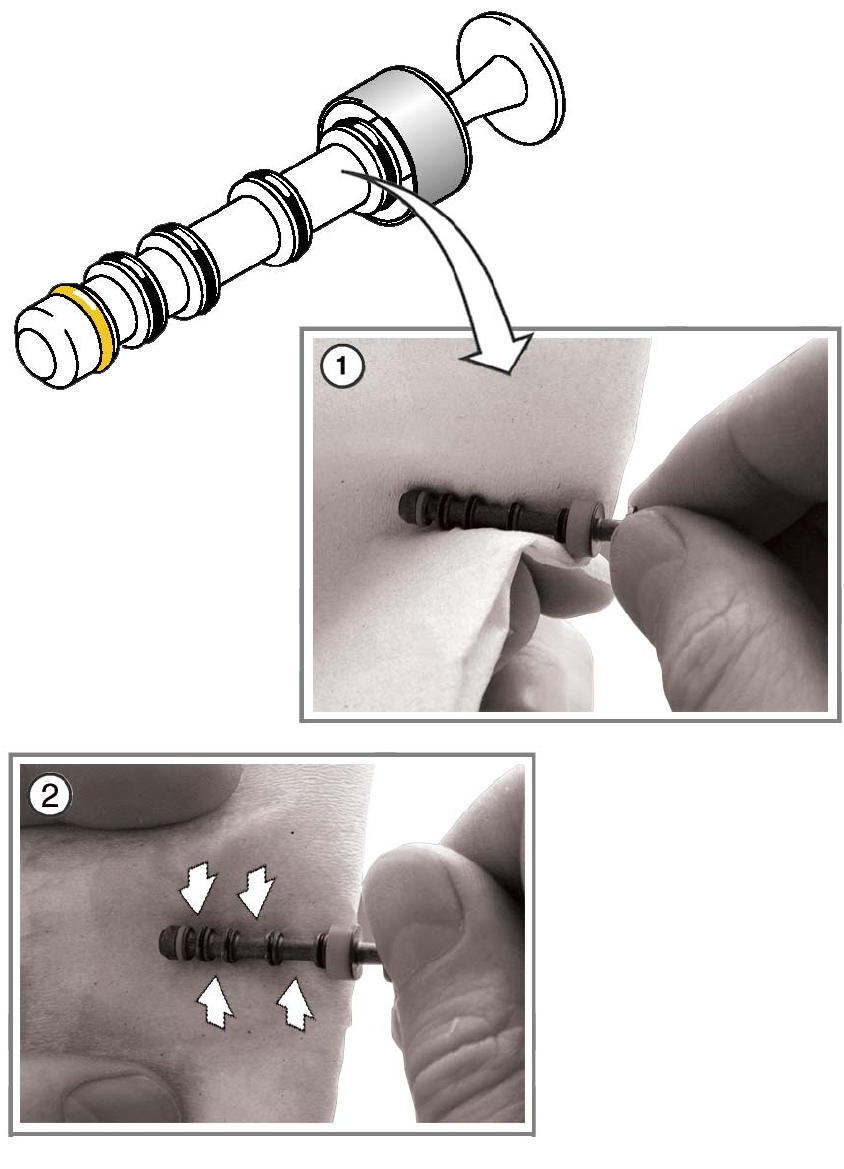

12 Maintain the valve plungers SIPLACE D3
08/2008 US Edition
94
12 Maintain the valve plungers
12
