9 Maintenance Parts ■ Locate Pin ■ Main Stopper 1 2 3 2 1 No. Part No. Part Name Q'ty Remarks Rank * Date of change 1 KU0-M9174-00X PIN, LOCA TION 1 L=33.5mm A 1998/9 - KG7-M9174-00X PIN, LOCA TION 1 L=26mm A - 1998…
8

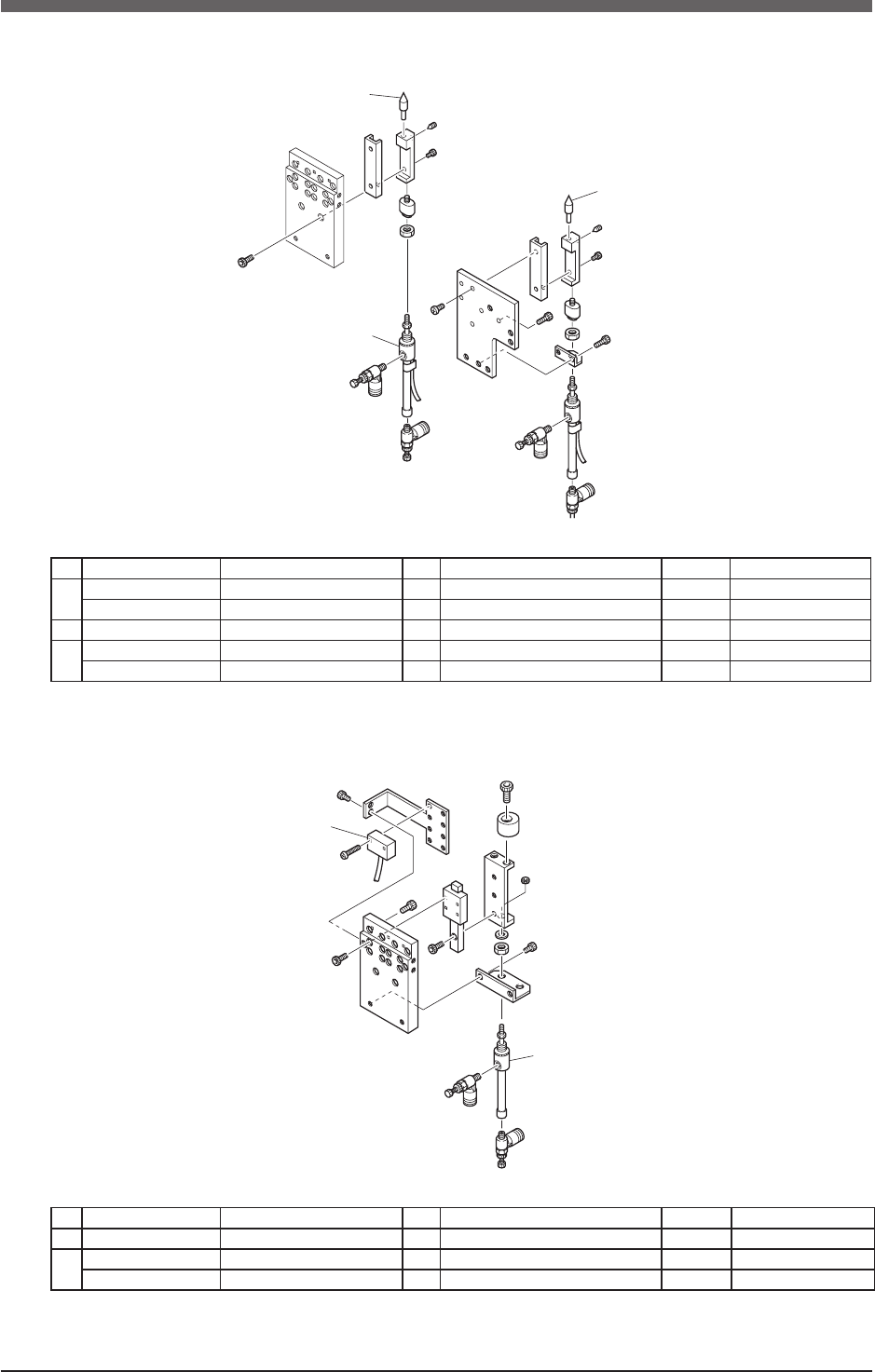

Maintenance Parts
■
Nozzle Changer
■
Push Up
2
3
1
1
2
No. Part No. Part Name Q'ty Remarks Rank
1 KM1-M9605-03X CYLINDER, CLAMP 1 B
2 KH5-M655A-A1X SENSOR, 1-1 1 B
3 KH5-M655A-02X FIBER 1 SPARE B
No. Part No. Part Name Q'ty Remarks Rank
1 KU0-M9217-01X CYLINDER 1 B
2 KU0-M653A-00X SENSOR, 1-1 ASSY 1 L=700 B
9

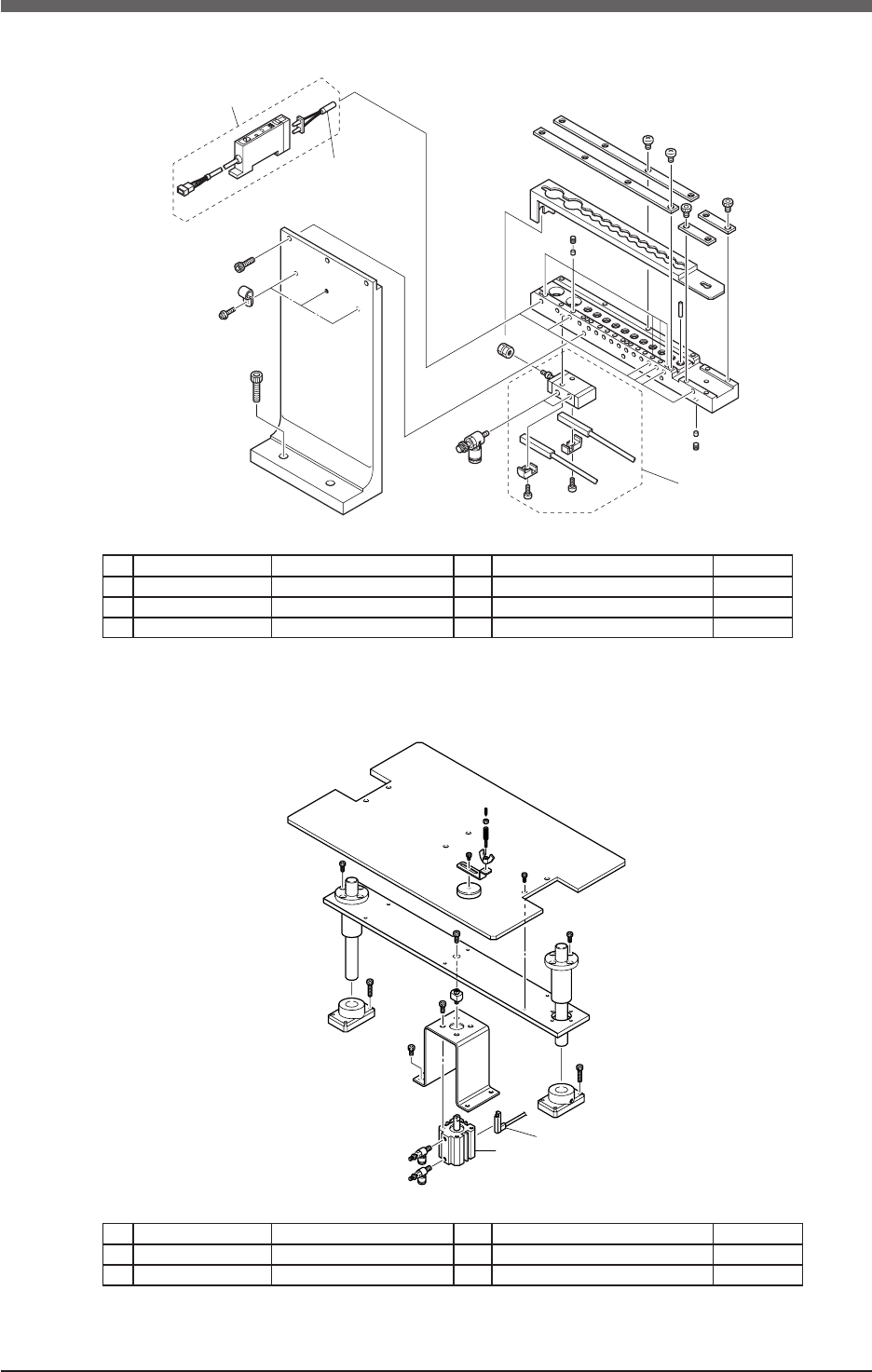

Maintenance Parts
■
Locate Pin
■
Main Stopper
1
2
3
2
1
No. Part No. Part Name Q'ty Remarks Rank * Date of change
1
KU0-M9174-00X PIN, LOCATION 1 L=33.5mm A 1998/9 -
KG7-M9174-00X PIN, LOCATION 1 L=26mm A - 1998/9
2 KH5-M9176-00X CYLINDER ASSY 2 B
3
KU0-M9174-10X PIN, LOCATION 1 L=33.5mm A 1998/9 -
KG7-M9174-10X PIN, LOCATION 1 L=26mm A - 1998/9
No. Part No. Part Name Q'ty Remarks Rank *Date of change
1 KG7-M9165-01X CYLINDER 1 B
2
KU0-M911D-00X SENSOR,SET POS. 1 for S.T.D B
KM0-M911D-00X SENSOR,SET POS. 1 for Precede-pick B
* This date is change instructions day of parts. It is different from the day when a part was changed.This date is change instructions day of parts. It is different from the day when a part was changed.
* この日付は変更指示日です。実際に部品が変更された日とは異なります。
10

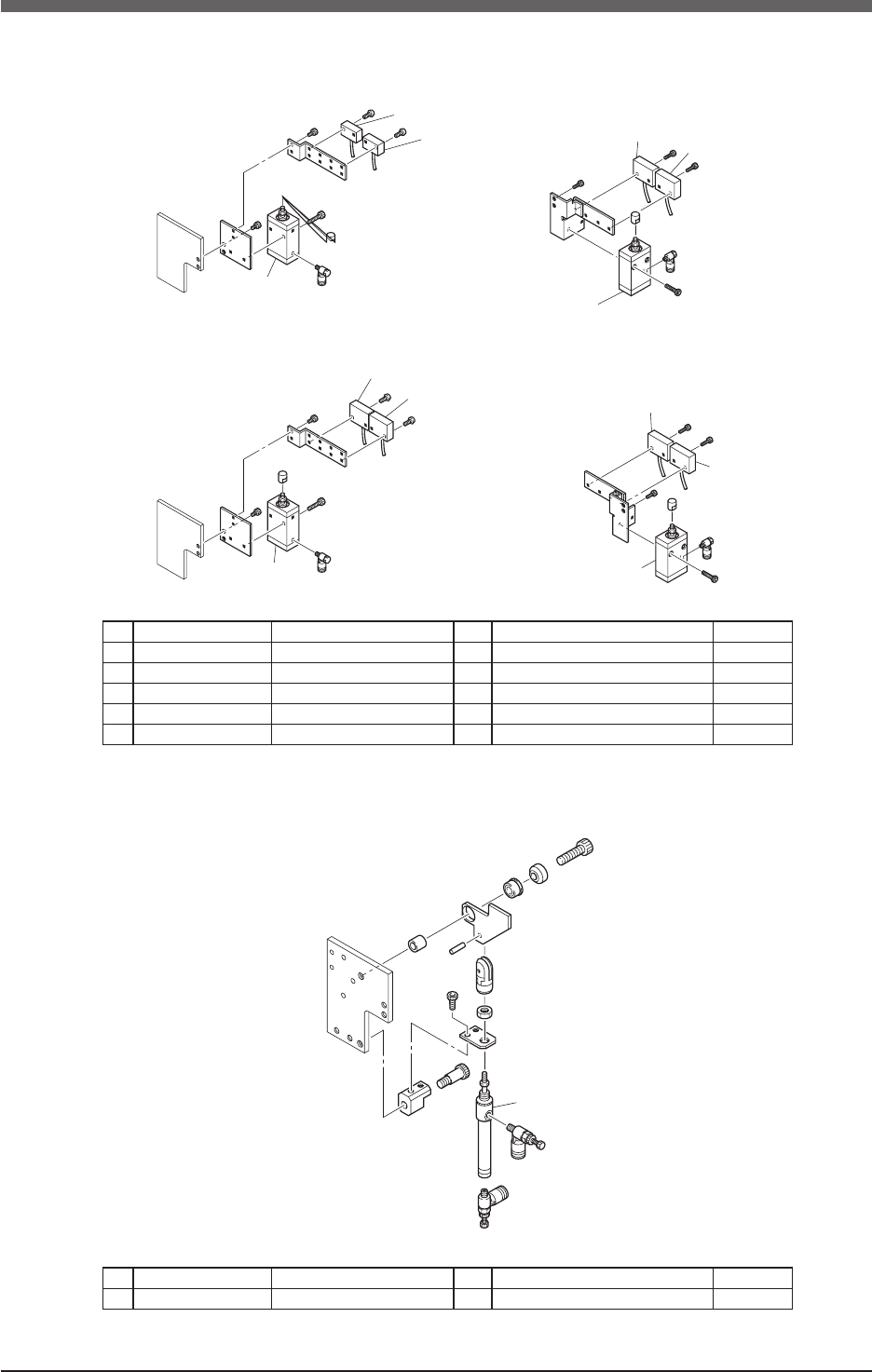

Maintenance Parts
■
Sub Stopper
■
Push In
2
5
4
4
5
5
4
1
1
1
1
3
S.T.D
Precede Pick
Fixed (L>R)
Fixed (R>L)
1
No. Part No. Part Name Q'ty Remarks Rank
1 K98-M9283-00X CYLINDER 1 B
2 KU0-M928A-00X SENSOR, UP 1 For P.C.B B
3 KU0-M928B-00X SENSOR, LOW 1 B
4 KM0-M928A-00X SENSOR, UP 1 For P.C.B B
5 KM0-M928B-00X SENSOR, LOW 1 B
No. Part No. Part Name Q'ty Remarks Rank
1 KG7-M9166-00X CYLINDER 1 B
