Mechanical Drawings 73 17 1 232 I ssue 1 T ransf er Head Single Chamber 350mm Casset te F E D C B A 6 5 4 3 2 1 E F 9 8 7 1 2345678 9 PROJECTION D C B A DRAWN APPROVED DATE C COPYRIGHT DO NOT SCALE SCALE TITLE DRAWING NU…
72 Mechanical Drawings

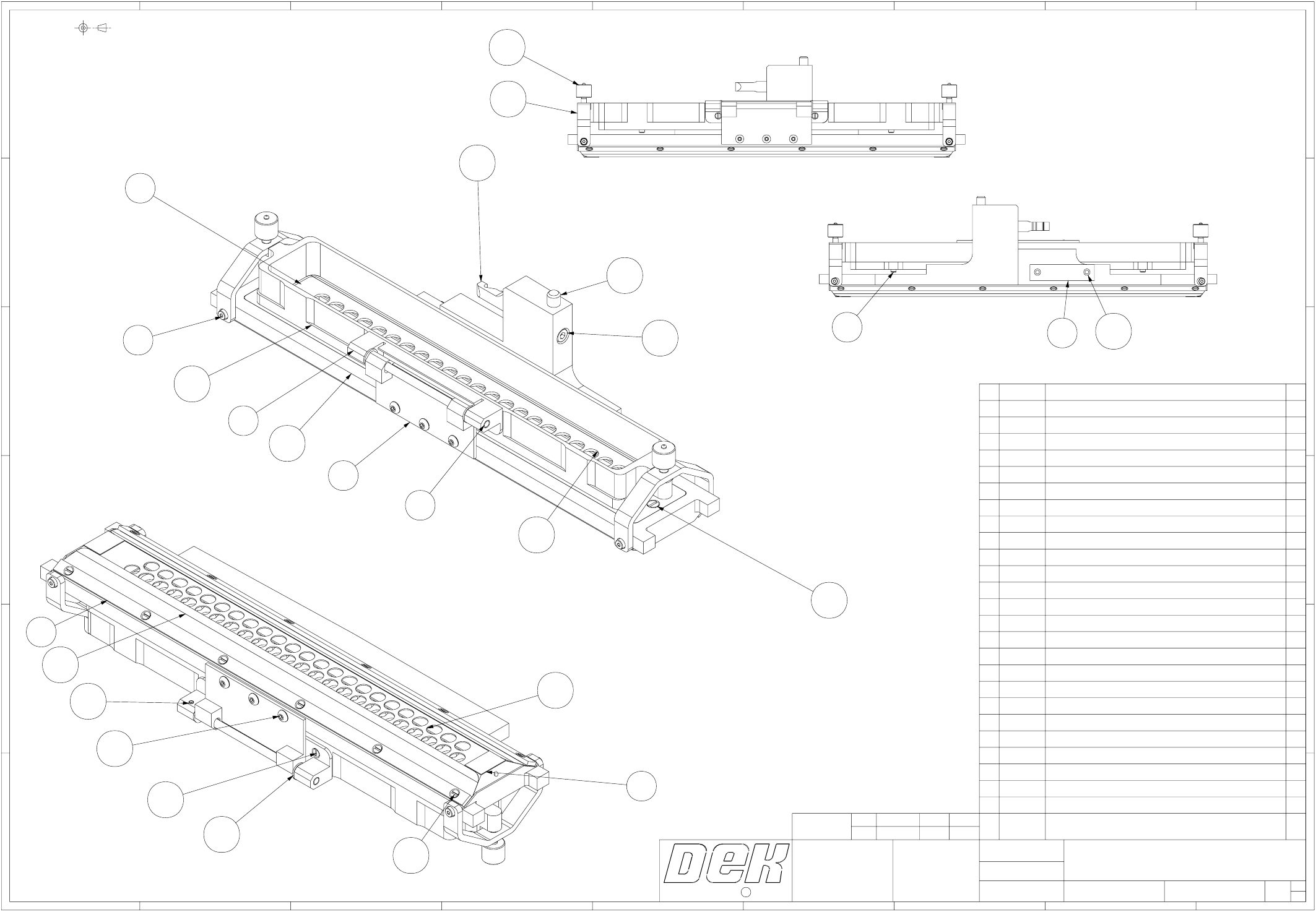

171231 Issue 1 Transfer Head Single Chamber 300mm Cassette
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2001
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137432 SHOULDER SCREW M3 X 4 4
2
137433 LOWER CARRIER BRACKET 1
3
137434 HINGE PIN 1
4
137442 RETAINING PIN 2
5
137443 CARRIER BRACKET 1
6
137447 BLADE RETAINER STRIP 2
7
137577 LABEL, NOVATEC, SMALL 1
8
137635 O RING, GRID (OR215.57X2.62NI70) 1
9
137660 SKI, HOLED 2
10
137716 GRID, HEX 1
11
137881 GRID-300 HD-Pflw 1
12
137964 METAL ETCHED WIPERS 8/12 2
13
171114 CHASSIS^CAS^300SC^HMOUNT 1
14
171130 HOOK 1
15
171260 CARRIER^CASSETTE^SC 1
16
171261 CLAMP^BRACKET^^ 2
17
171262 THUMBSCREW^^^TOPSIDE 2
18
700118 SCREW M5X25 CAP HD ST.ST 1
19
700313 SCREW M4X10 BUTT.HD ST.ST 3
20
700401 SCREW M3X6 CSK.SLTD.M/C ST.ST 3
21
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
22
700442 SCREW M4X12 CSK.SLTD.M/C ST.ST 2
23
700689 WASHER M5 BLACK PLASTIC 2
24
700771 DOWEL 8DIA X 20LG GRD 1 1
25
700801 SCREW M3X3 SKT. SET(GRUB) 1
26
701011 SCREW M3X8 PAN POZI TRI TAP (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
01 09-Oct-01 +++ TH
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:5
THONNOR
TRANSFER HEAD^SC^300CASS^HM
09-Oct-01
171231
171199
SH 1
OF 1
A
1
BENEATH PRIMARY GRID (10)
SCALE 1:1
1
2
3
5
14
18
24
8
10
13
15
22
SCALE 1:1
6
9
12
19
20
21
23
25
11
SCALE 13:20
16
17
SCALE 13:20
4
7
26
Mechanical Drawings 73

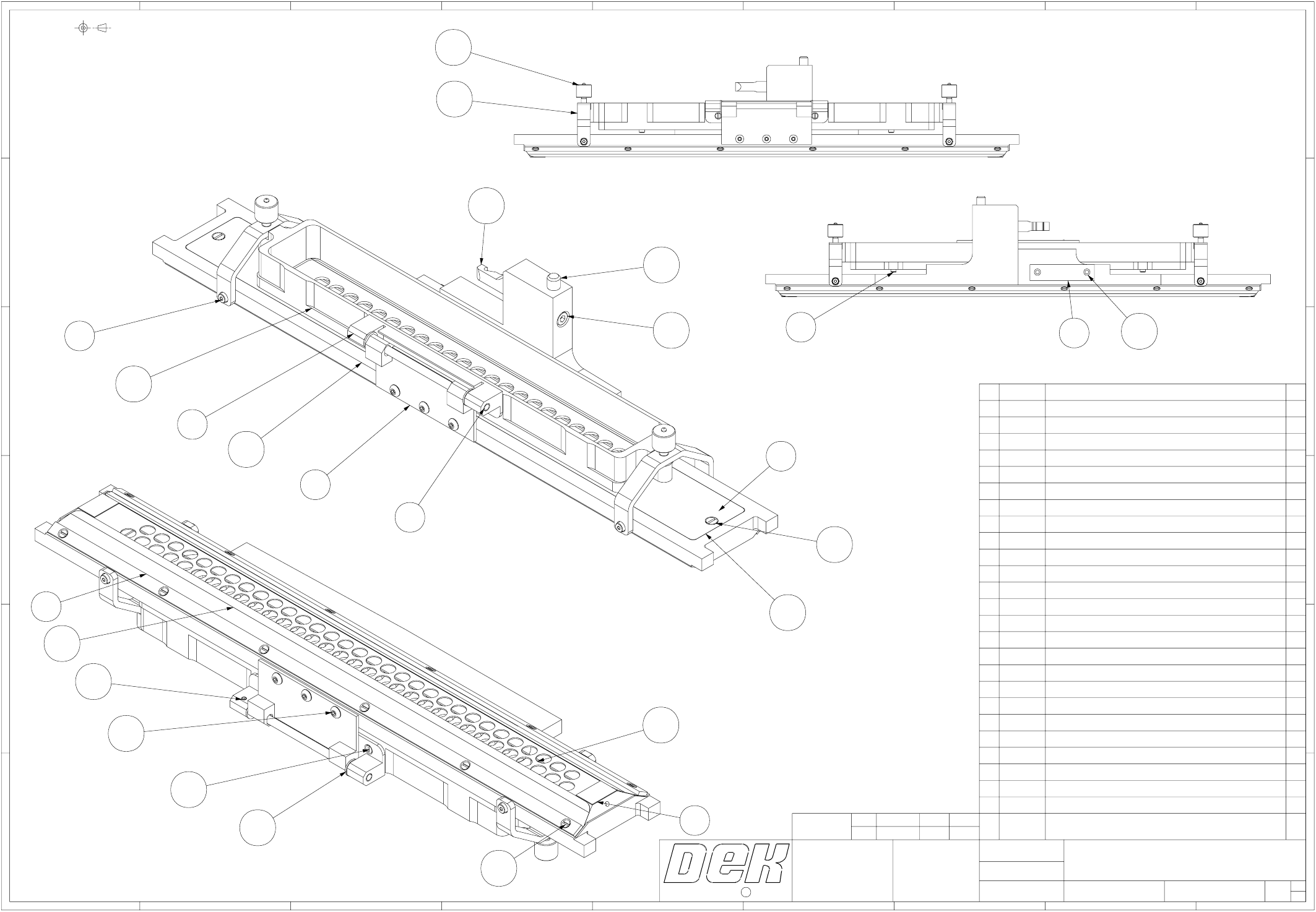

171232 Issue 1 Transfer Head Single Chamber 350mm Cassette
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2001
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137432 SHOULDER SCREW M3 X 4 4
2
137433 LOWER CARRIER BRACKET 1
3
137434 HINGE PIN 1
4
137442 RETAINING PIN 2
5
137443 CARRIER BRACKET 1
6
137506 BLADE RETAINER STRIP, 350 CAVITY 2
7
137577 LABEL, NOVATEC, SMALL 1
8
137652 O RING (200-178) 1
9
137660 SKI, HOLED 2
10
137882 PRIMARY GRID N/C 350 1
11
137884 GRID-350 HD -Pflw 1
12
137965 METAL ETCHED WIPERS Ti 8/12 2
13
171130 HOOK 1
14
171215 CHASSIS^CAS^350SC^HMOUNT 1
15
171260 CARRIER^CASSETTE^SC 1
16
171261 CLAMP^BRACKET^^ 2
17
171262 THUMBSCREW^^^TOPSIDE 2
18
700118 SCREW M5X25 CAP HD ST.ST 1
19
700313 SCREW M4X10 BUTT.HD ST.ST 3
20
700401 SCREW M3X6 CSK.SLTD.M/C ST.ST 3
21
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
22
700442 SCREW M4X12 CSK.SLTD.M/C ST.ST 2
23
700689 WASHER M5 BLACK PLASTIC 2
24
700771 DOWEL 8DIA X 20LG GRD 1 1
25
700801 SCREW M3X3 SKT. SET(GRUB) 1
26
701011 SCREW M3X8 PAN POZI TRI TAP (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
01 09-Oct-01 +++ TH
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:5
THONNOR
TRANSFER HEAD^SC^350CASS^HM
09-Oct-01
171232
171200
SH 1
OF 1
A
1
BENEATH PRIMARY GRID (10)
SCALE 1:1
1
2
3
5
13
18
24
14
15
22
8
10
SCALE 1:1
9
19
20
21
23
25
6
11
12
SCALE 13:20
16
17
SCALE 13:20
4
7
26
74 Mechanical Drawings

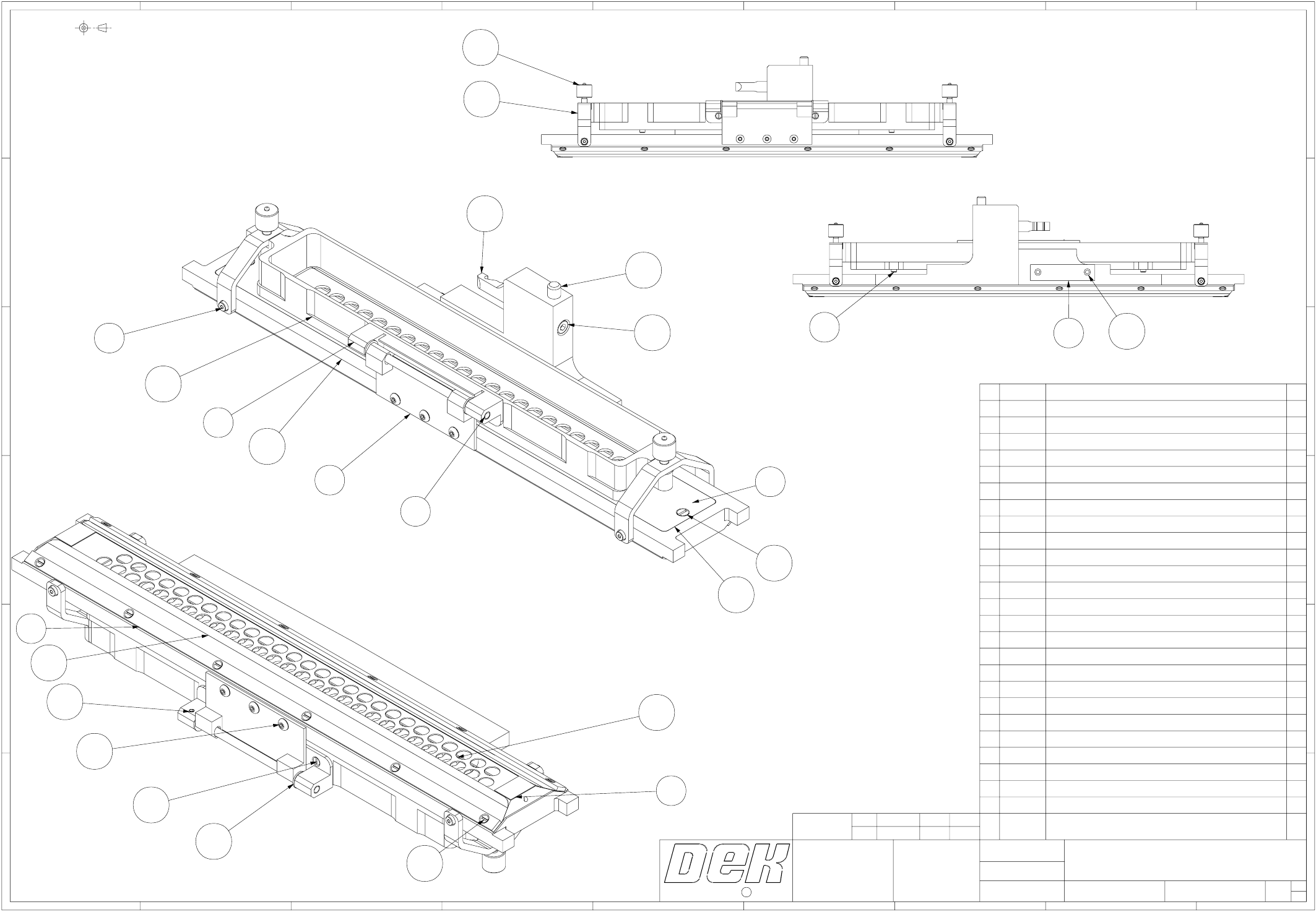

171233 Issue 1 Transfer Head Single Chamber 400mm Cassette
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2001
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137432 SHOULDER SCREW M3 X 4 4
2
137433 LOWER CARRIER BRACKET 1
3
137434 HINGE PIN 1
4
137442 RETAINING PIN 2
5
137443 CARRIER BRACKET 1
6
137564 BLADE RETAINER STRIP, 400 2
7
137577 LABEL, NOVATEC, SMALL 1
8
137655 O RING (OR280X3NI70) 1
9
137660 SKI, HOLED 2
10
137883 PRIMARY GRID N/C 400 1
11
137885 GRID -400 HD- Pflw 1
12
137966 METAL ETCHED WIPERS Ti 8/12 2
13
171130 HOOK 1
14
171216 CHASSIS^CAS^400SC^HMOUNT 1
15
171260 CARRIER^CASSETTE^SC 1
16
171261 CLAMP^BRACKET^^ 2
17
171262 THUMBSCREW^^^TOPSIDE 2
18
700118 SCREW M5X25 CAP HD ST.ST 1
19
700313 SCREW M4X10 BUTT.HD ST.ST 3
20
700401 SCREW M3X6 CSK.SLTD.M/C ST.ST 3
21
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
22
700442 SCREW M4X12 CSK.SLTD.M/C ST.ST 2
23
700689 WASHER M5 BLACK PLASTIC 2
24
700771 DOWEL 8DIA X 20LG GRD 1 1
25
700801 SCREW M3X3 SKT. SET(GRUB) 1
26
701011 SCREW M3X8 PAN POZI TRI TAP (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
01 09-Oct-01 +++ TH
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:5
THONNOR
TRANSFER HEAD^SC^400CASS^HM
09-Oct-01
171233
171201
SH 1
OF 1
A
1
BENEATH PRIMARY GRID (10)
SCALE 1:1
1
2
3
5
13
18
24
14
15
22
8
10
SCALE 1:1
9
19
20
21
23
25
6
11
12
SCALE 13:20
16
17
SCALE 13:20
4
7
26
