2 Introduction and Basic Concepts SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
2.4 Brief Description and Principles of the User Interface Edition 03/98 from Software Version SR.404.xx
2 - 38
2.4.4.3 Control Mode
The SIPLACE can be supplied with data and operated in three different control modes.
Click on the Control mode option in the Options menu to change the control mode on the station com-
puter.

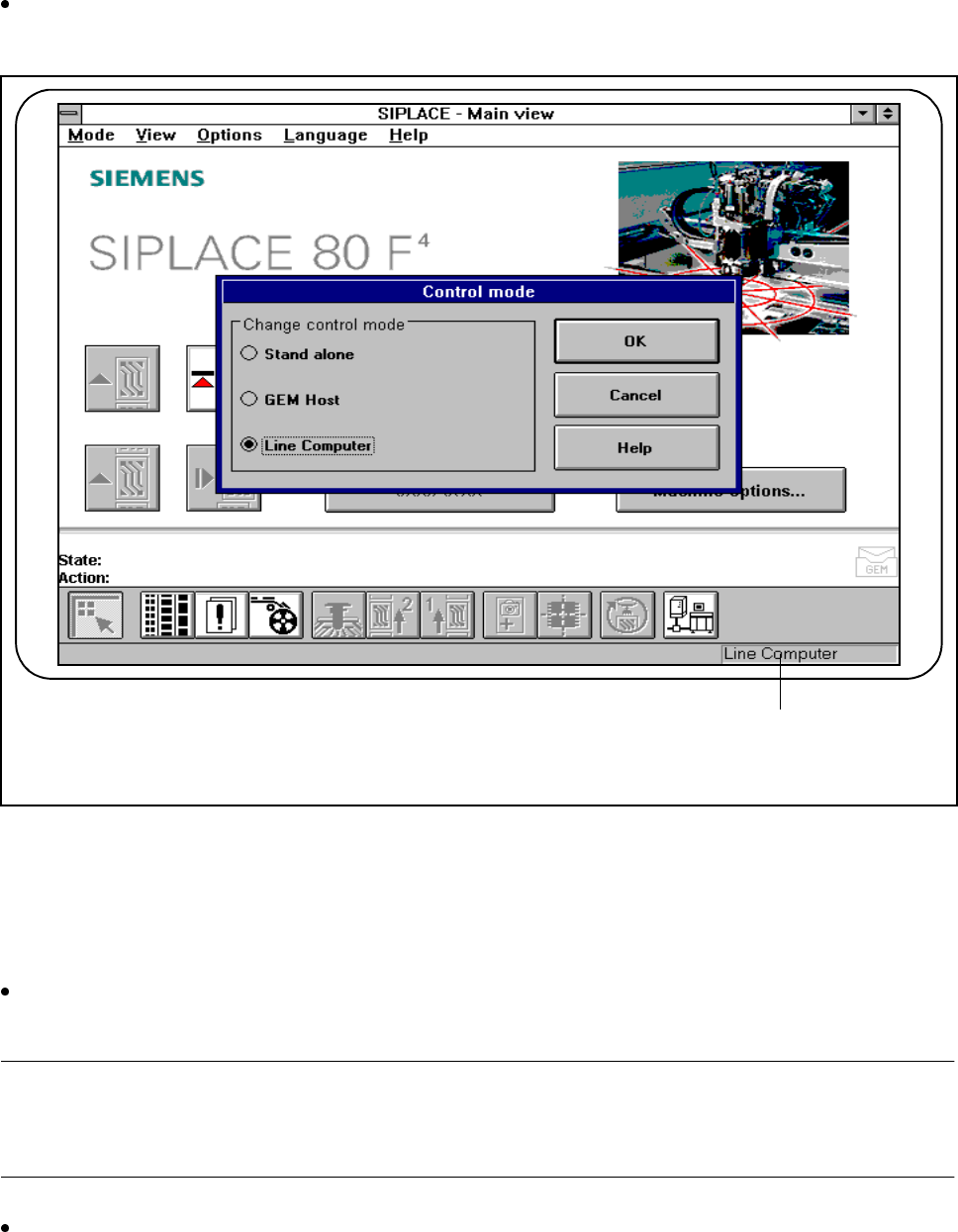

Fig. 2.4.7 Control mode
- Key to Fig. 2.4.7
1 The control mode currently set is displayed
l With line computer
Select Line computer control mode if cluster data was preset by the line computer. The station computer
will then expect the line computer to specify a cluster.
PLEASE NOTE
Clusters and the set-up should only be specified by the line computer. Stand-alone mode can be used in con-
junction with "New cluster" for testing and service purposes.
Enter the cluster and set-up on the line computer (see the "UNIX line computer" User Manual).
1
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 2 Introduction and Basic Concepts
Edition 03/98 from Software Version SR.404.xx 2.4 Brief Description and Principles of the User Interface
2 - 39
PLEASE NOTE
If the line computer is shut down, the stations will have to be rebooted when the line is started again.
l Stand-alone (line engineer)
From the Options menu, a cluster can be loaded from the hard disk of the station computer for testing without
the line computer. All the data must be present on the hard disk of the station computer.
PLEASE NOTE
Stand-alone must have been set as the control mode.
l GEM host (option)
This control mode must be set in order to run the automatic placement machine from another host via the
GEM interface.
See also Section 11.9 GEM Interface of this User’s Manual.
2 Introduction and Basic Concepts SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
2.4 Brief Description and Principles of the User Interface Edition 03/98 from Software Version SR.404.xx
2 - 40
2.4.4.4 New Cluster (Line Engineer)
From the Options menu, a cluster can be loaded from the hard disk of the station computer for testing without
the line computer.
PLEASE NOTE
Stand-alone must have been set as the control mode.
Select the New cluster" submenu from the Options menu on the menu bar.
Fig. 2.4.8 Enter cluster
Enter the cluster that you wish to load in the input box and click on OK. The set-up and cluster name will be
displayed in the main view.
PLEASE NOTE
The set-up and cluster must be present on the hard disk together with the associate package form and fidu-
ciary marking data. The last placement program successfully set by the line computer is stored on the hard
disk as the CURRENT cluster (including the fiduciary marking and package form data).
