SIPLACE 80S-20/F4/F4-6 User’s Manual 4 Single Functions
Edition 07/97 from Software Version SR.403.xx 4.1 Overview
4 - 3
4.1 Overview

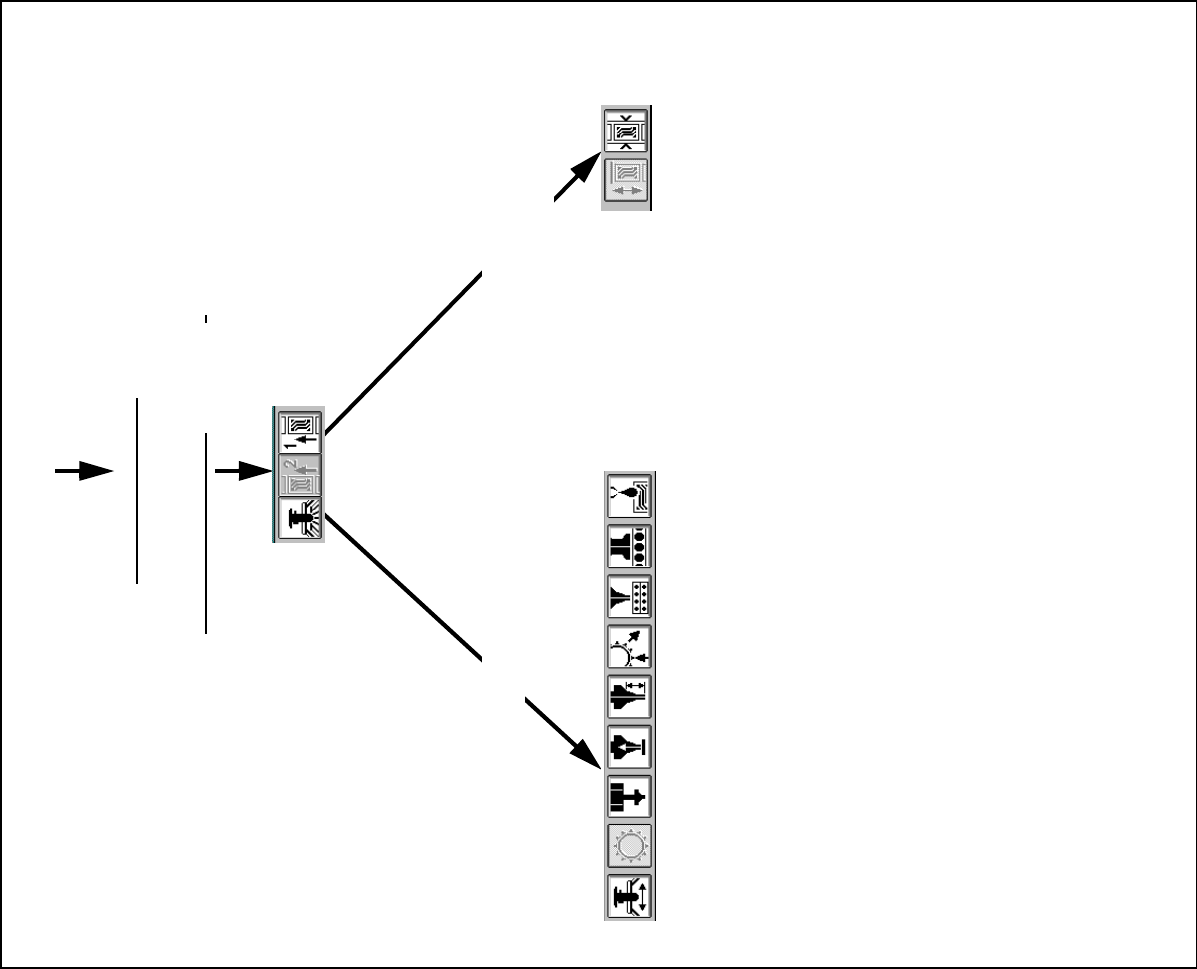

Fig. 4.1.1 Single functions menu
Single functions (Chapter 4)
Set and measure the transport width
PCB transport function
Flux application unit (option)
Nozzle changer configuration, IC head
Nozzle changer configuration, revolver head
Nozzle configuration, revolver head
Nozzle offset, revolver head
Vacuum test, revolver head
IC head functions
Revolver head functions
Gantry functions
From flow chart 2.3.2
Gantry functions Transport functions 1/2
(2 only as an option)
4 Single Functions SIPLACE 80S-20/F4/F4-6 User’s Manual
4.1 Overview Edition 07/97 from Software Version SR.403.xx
4 - 4
4.1.1 General Comments
Single functions comprise gantry functions and transport functions.
Single functions are used for carrying out particular actions following a fatal error and also for setting up and
testing the machine. Single functions make it possible to control various function modules in a defined man-
ner.
The functions covered in this chapter Chapter 4 are described for the SIPLACE 80F
4
or 80F
4
-6, but they also
apply to the SIPLACE 80S-20. The only difference is that the gantry functions of the SIPLACE 80F
4
include
additional IC head and wafflepack changer functions.
WARNING
Single functions may only be used by appropriately qualified and trained personnel since improper handling
can result in injury to the person and / or damage to the machine.
SIPLACE 80S-20/F4/F4-6 User’s Manual 4 Single Functions
Edition 07/97 from Software Version SR.403.xx 4.2 Single Functions, Gantry with 12x Revolver Head
4 - 5
4.2 Single Functions, Gantry with 12x Revolver Head
NOTE
With travel functions of the x or y axis the machine cover must be closed and to execute the function the start
button must be pressed. The gantries will in every case travel only at slow speed.

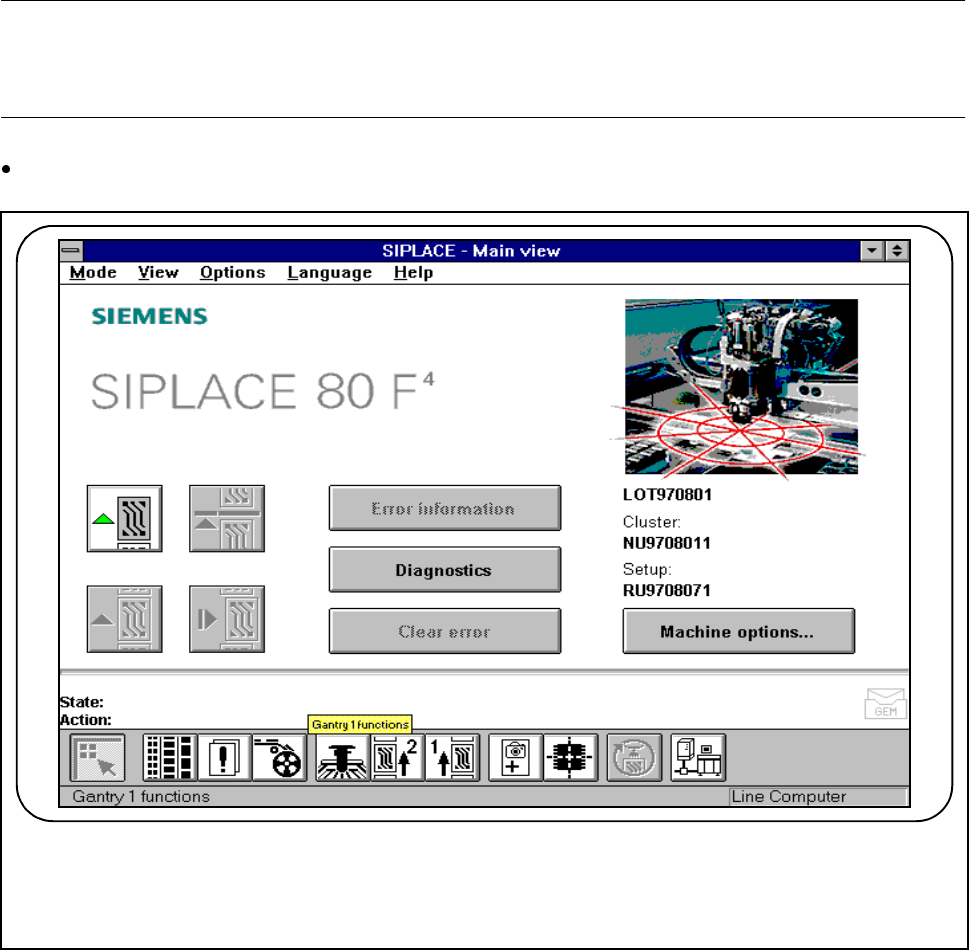

In main view click on the symbol button for Gantry functions.
Fig. 4.2.1 Gantry functions
