SIPLACE 80S-20/F4/F4-6 User’s Manual 4 Single Functions
Edition 07/97 from Software Version SR.403.xx 4.2 Single Functions, Gantry with 12x Revolver Head
4 - 19
4.2.6.8 All Nozzles - Pickup (with Nozzle Changer Only)
When this function is activated, all nozzles will be picked up from their respective magazines in the nozzle
changer.
Click on the All nozzles button in the Nozzle changer work area.
Within the All nozzles working area click on the Pick up button. All nozzles which have been specified in
the set-up for the nozzle changer will be picked up by the revolver head from the nozzle changer.
4.2.6.9 All Nozzles - Remove (with Nozzle Changer Only)
When this function is activated, all of the nozzles at the revolver head will be discarded into the reject con-
tainer.
Click on the All nozzles button in the Nozzle changer work area.
Within the All nozzles working area click on the Remove button. All of the nozzles at the revolver head will
be discarded into the reject container.
4 Single Functions SIPLACE 80S-20/F4/F4-6 User’s Manual
4.2 Single Functions, Gantry with 12x Revolver Head Edition 07/97 from Software Version SR.403.xx
4 - 20
4.2.7 Nozzle Changer Configuration, 12x Revolver Head
This function is used for displaying, checking and changing the nozzle types in the individual magazines of the
nozzle changer.
NOTE
A revolver head nozzle changer must be installed and configured in the machine options.
In the Gantry functions menu click on the symbol button for Nozzle changer configuration revolver
head.

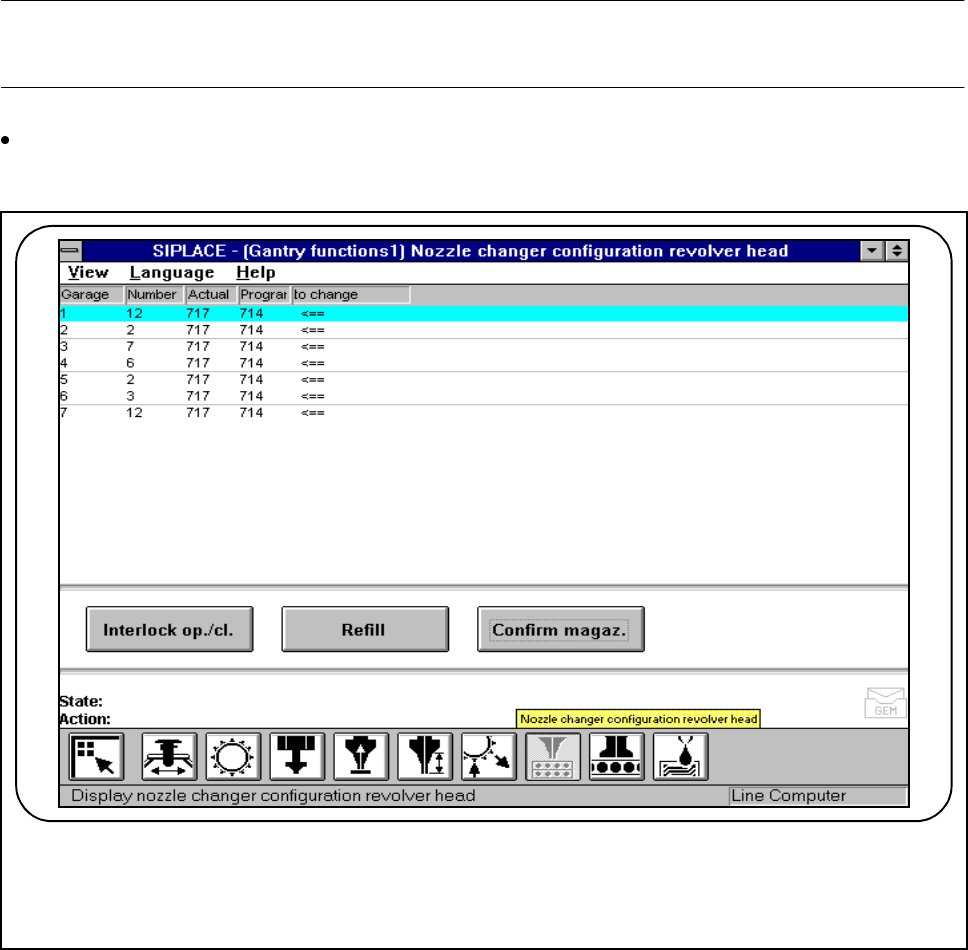

Fig. 4.2.9 Nozzle changer configuration, 12x revolver head
- The nozzle changer magazine concerned is shown in the Garage column.
- The Number column contains the number of nozzles currently in the magazine concerned.
- The Actual column indicates the actual set-up at the nozzle changer.
- The Programmed column indicates the set-up specified by the line computer.
- The To change column exhibits an arrow (<== ) when the Programmed and Actual configurations are
not the same.
F
SIPLACE 80S-20/F4/F4-6 User’s Manual 4 Single Functions
Edition 07/97 from Software Version SR.403.xx 4.2 Single Functions, Gantry with 12x Revolver Head
4 - 21
4.2.7.1 Open / Close Interlock
You can open or close the locking plate of the nozzle changer in order manually to remove nozzles from the
nozzle changer or to insert new nozzles.
Click on the Interlock open/close button. The locking plate of the nozzle changer will either close or open,
depending on its original position.
4.2.7.2 Refill
This function is used for filling magazines with new nozzles of the same type but without changing the set-up.
If necessary, use the Interlock open/close function to open the lock of the locking plate.
Fill the magazines with the same nozzle types and click on the Refill button. The fill level of the magazine
in question will be updated.
NOTE
The magazines must always be filled up to their full capacity (per magazine this is 12 nozzles of the same
type).
4.2.7.3 Confirm Magazine
Set up the nozzles which have to be changed (in the To change column marked with an arrow (<==) in the
individual magazines to the Programmed state.
Mark the line in question (it is displayed against a blue background) and within the working area click on
the Confirm magazine button. Programmed and Actual must now be the same.
NOTE
Up to 7 magazines each with 12 nozzles of the same type can be set up.
Each magazine must be confirmed individually.
See also Section 11.1 ’Nozzle Changer for the 12x Revolver Head’ in Chapter 11 ’Station Extensions/
Options’.
