4.2.8.1 Confirm Change

Set up the nozzles which have to be changed (in the To change column marked with an arrow (<==) in the

individual nozzle garages to the Programmed state.

Mark the line in question (it is displayed against a blue background) and within the working area click on

the Confirm button. Programmed and Actual must now be the same.

NOTE

Up to 20 nozzles can be defined.

Each nozzle garage must be confirmed individually.

See also Section 11.2 ’Nozzle Changer for IC Head (ICPW20)’ in Chapter 11 ’Station Extensions/Options’.

4 Single Functions SIPLACE 80S-20/F4/F4-6 User’s Manual

4.2 Single Functions, Gantry with 12x Revolver Head Edition 07/97 from Software Version SR.403.xx

4 - 24

4.2.9 Flux Application Unit/Flux (Option for SIPLACE 80F

)

The Go to refill position, Rinse fluxer head and Init. fluxer head buttons are only active if the flux applica-

tion unit option has been installed. A description of the functions is given in Chapter 11.7 of this User’s Man-

ual.

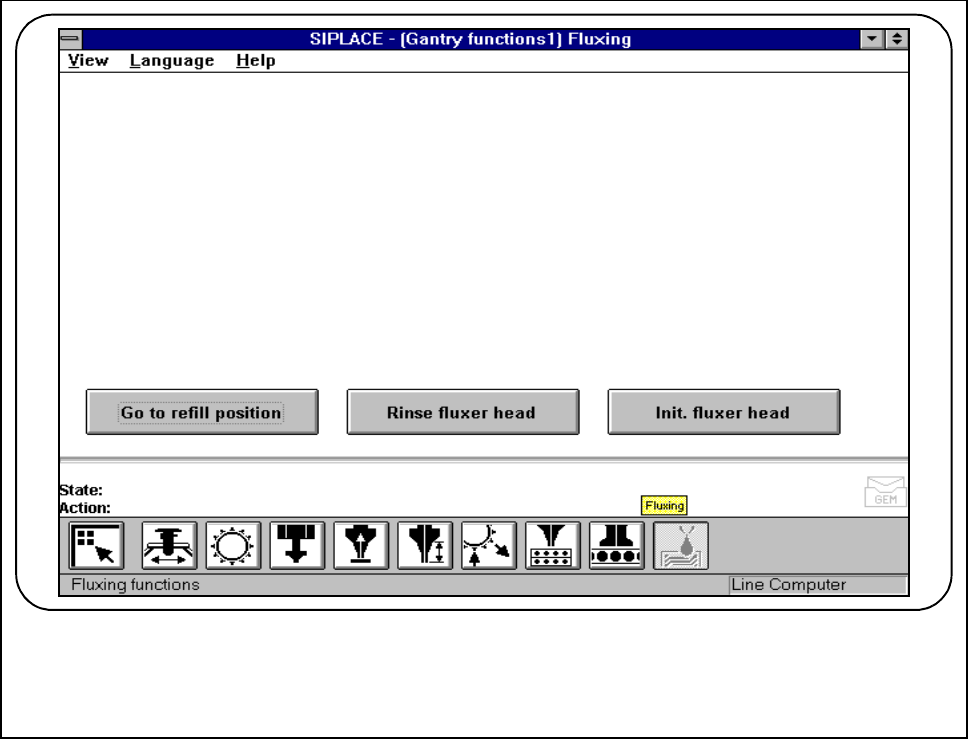

Fig. 4.2.11 Flux application unit/flux for SIPLACE 80F

(option)

SIPLACE 80S-20/F4/F4-6 User’s Manual 4 Single Functions

Edition 07/97 from Software Version SR.403.xx 4.3 Single Functions, Gantry with 6x Revolver Head (for 80F4-6)

4 - 25

4.3 Single Functions, Gantry with 6x Revolver Head

(for 80F

-6)

NOTE

With travel functions of the x or y axis the machine cover must be closed and to execute the function the start

button must be pressed. The gantries will in every case travel only at slow speed.

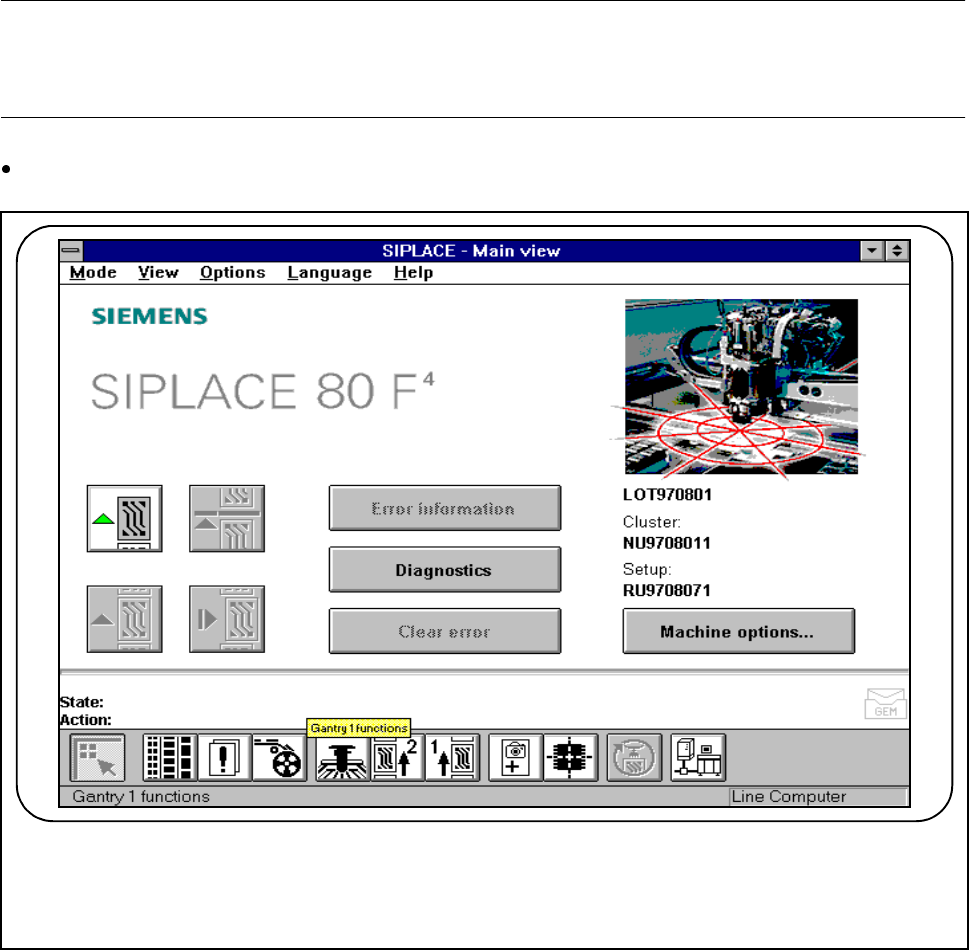

In main view click on the symbol button for Gantry functions.

Fig. 4.3.1 Gantry functions
