4 Single Functions SIPLACE 80S-20/F4/F4-6 User’s Manual
4.3 Single Functions, Gantry with 6x Revolver Head (for 80F4-6) Edition 07/97 from Software Version SR.403.xx
4 - 34
4.3.4 Vacuum Test, 6x Revolver Head
If all nozzles are at the star, when this function is activated the nozzles will be checked regarding their vacuum
values in the pick-up position.
In the Gantry functions menu click on the symbol button for Vacuum test revolver head.
Fig. 4.3.6 Vacuum test 6x revolver head
Click on the Measure button. A head reference run will be carried out and the vacuum values at the pick-
up position measured for all nozzles. The measured values for the open and closed pick-up positions are
displayed.
F
SIPLACE 80S-20/F4/F4-6 User’s Manual 4 Single Functions
Edition 07/97 from Software Version SR.403.xx 4.3 Single Functions, Gantry with 6x Revolver Head (for 80F4-6)
4 - 35
4.3.5 Nozzle Offset, 6x Revolver Head
This function is used for determining the nozzle height of all segments. If all segments are in the star the value
found here will refer to Segment 1.
In the In the Gantry functions menu click on the symbol button for Nozzle offset revolver head.
Fig. 4.3.7 Nozzle offset 6x revolver head
Click on the Measure button.
Press the Start button when you are asked to do so on the screen. The active gantry will move to a defined
position above the board conveyor and there carry out measurement of the z height with all segments.
Once measurement is finished the gantry will return to its starting position. The measured nozzle heights
will now be displayed.
F
4 Single Functions SIPLACE 80S-20/F4/F4-6 User’s Manual
4.3 Single Functions, Gantry with 6x Revolver Head (for 80F4-6) Edition 07/97 from Software Version SR.403.xx
4 - 36
4.3.6 Nozzle Configuration 6x Revolver Head
This function is used for displaying, checking and changing the nozzle sizes of the nozzles at the placement
head.
NOTE
Editing or confirming the sizes is only possible with the specified clusters and set-up.
In the Gantry functions menu click on the symbol button for Nozzle configuration revolver head.

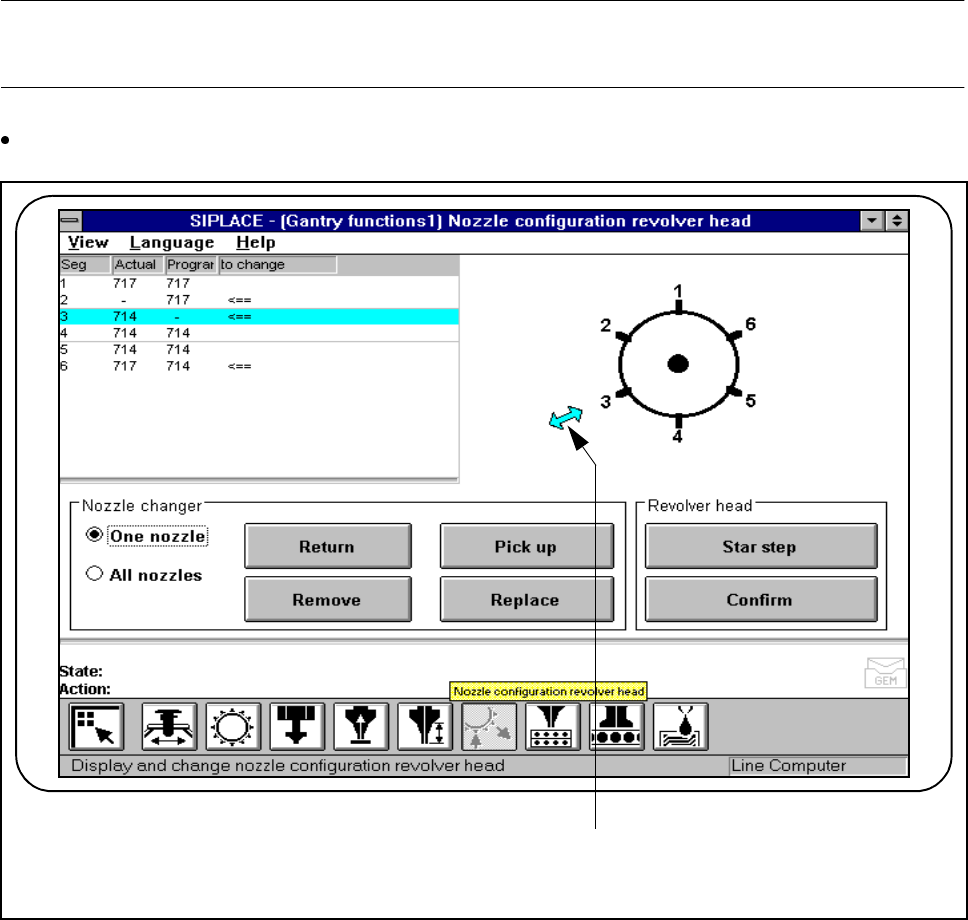

Fig. 4.3.8 6x revolver head nozzle configuration
- Key to Fig. 4.3.8
1 Changeover position
F
1
