4 Single Functions SIPLACE 80S-20/F4/F4-6 User’s Manual
4.3 Single Functions, Gantry with 6x Revolver Head (for 80F4-6) Edition 07/97 from Software Version SR.403.xx
4 - 44
4.3.9 Flux Application Unit/Flux (Option for SIPLACE 80F
4
-6)
The Go to refill position, Rinse fluxer head and Init. fluxer head buttons are only active if the flux applica-
tion unit option has been installed. A description of the functions is given in Chapter 11.7 of this User’s Man-
ual.

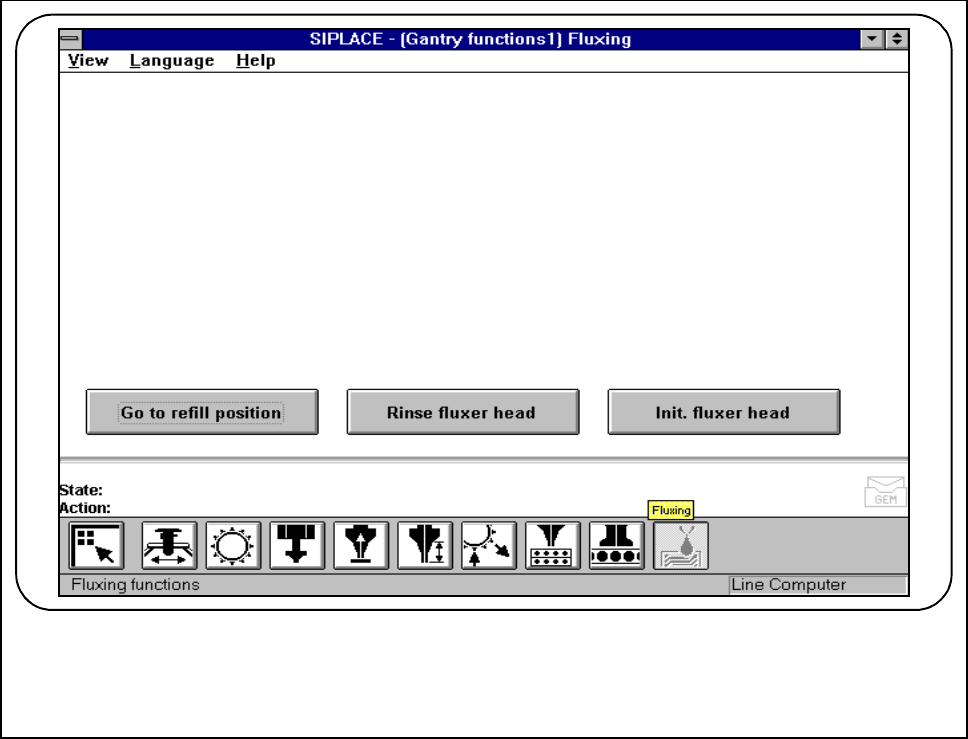

Fig. 4.3.11 Flux application unit/flux for SIPLACE 80F
4
(option)
F
SIPLACE 80S-20/F4/F4-6 User’s Manual 4 Single Functions
Edition 07/97 from Software Version SR.403.xx 4.4 Single Functions: Transport 1
4 - 45
4.4 Single Functions: Transport 1
In the main view click on the symbol button for PCB transport.
Fig. 4.4.1 PCB transport 1
F
4 Single Functions SIPLACE 80S-20/F4/F4-6 User’s Manual
4.4 Single Functions: Transport 1 Edition 07/97 from Software Version SR.403.xx
4 - 46
4.4.1 Transport Functions 1
The transport functions are used for checking and adjusting the functional modules of the board conveying
systems.
In the PCB transport screen click on the symbol button for Transport functions.
Fig. 4.4.2 Transport functions
NOTE
With travel functions of the x or y axis the machine cover must be closed and to execute the function the start
button must be pressed. The gantries will in every case travel only at slow speed. The revolver head has been
programmed to travel at a slow speed.
4.4.1.1 PCB to Center Conveyor
When this function is selected a board on the input conveyor will be conveyed onwards to the center conveyor
where it is stopped and clamped.
Within the working area click on the PCB to center conveyor button. A board which is on the input con-
veyor will be conveyed onwards to the center conveyor where it will be stopped and clamped.
